Size : 1/2 to 6 Inch
CPVC SCH80 ASTM

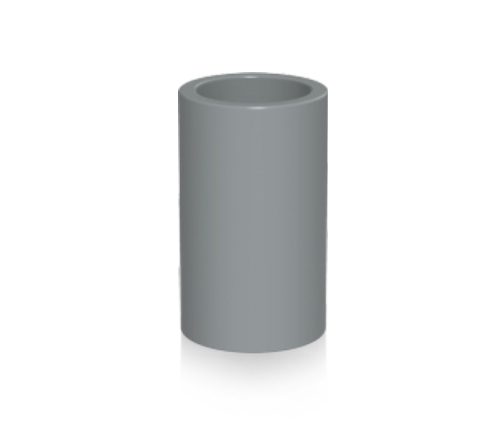

Corrosion Resistant Socket Coupling
Pipe fitting for Buidings
Our user-friendly design allows for easy installation and a seamless, sealed connection. Safe, reliable, direct supplier product, CPVC and many other configurations require continuous operation. Learn about the durability and reliability our CPVC SCH80 ASTM corrosion resistant joint compound provides!
Specification :
|
Type: |
CPVC SCH80 Coupling (S50) |
|
Place of Origin: |
Zhejiang, China |
|
Temperature of Media: |
Medium Temperature, Normal Temperature |
|
Media: |
Hot and cold water,pure water,drinking water,waster water,ect |
|
Body material: |
CPVC |
|
Color: |
Grey |
|
Function: |
Transport Liquid |
|
Customized support: |
OEM, ODM |
|
Brand Name: |
EDWIN or Customize |
|
Application: |
Buildings,homes,hospitals,hotels,food plant,ect |
|
Power: |
Manual |
|
Port Size: |
1/2” to 6” |
|
Standard: |
ASTM D1784 |
|
Packing: |
Carton box or as per customer's request |
|

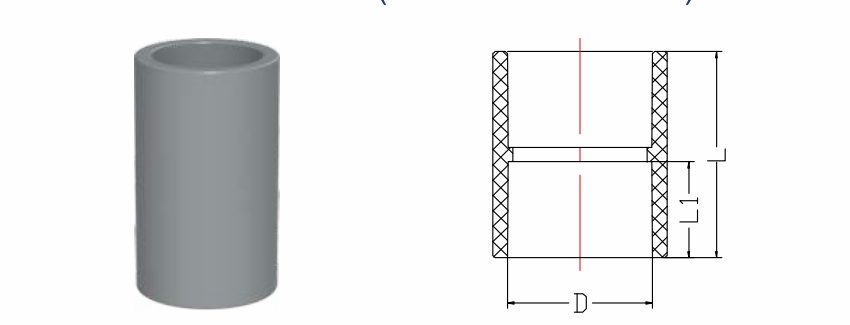

Matching criteria |
ASTM F439 |
|
Size (inch) |
D(mm) |
L(mm) |
L1(mm) |
|
1/2” |
21.34 |
50.2 |
24 |
|
3/4” |
26.67 |
56.5 |
27 |
|
1” |
33.4 |
62.5 |
30 |
|
1-1/4” |
42.16 |
68.5 |
33 |
|
1-1/2” |
48.26 |
74.5 |
36 |
|
2” |
60.32 |
80.5 |
39 |
|
2-1/2” |
73.02 |
97.0 |
46 |
|
3” |
88.9 |
103.0 |
49 |
|
4” |
114.3 |
123.0 |
59 |
|
5” |
141.0 |
139.5 |
67 |
|
6” |
168.0 |
159.6 |
76.8 |
