ESU Series Brushless DC Motor Solar Centrifugal Pump

The ESU Series Solar Centrifugal Pump features a high-efficiency brushless DC motor designed for reliable solar-powered water pumping. Its centrifugal design ensures smooth water flow and consistent performance, making it ideal for residential, agricultural, and small-scale irrigation applications. Engineered for durability, the ESU Series comes with a three-year warranty, reflecting its long-term reliability and low maintenance requirements.

PREV：ECPM Series Mass Flow Solar Centrifugal Pump with DC Controller
NEXT：EQB Series Brushless DC Motor Solar Vortex Pump

Description
Components
Curves
Performance Data
Contact Us

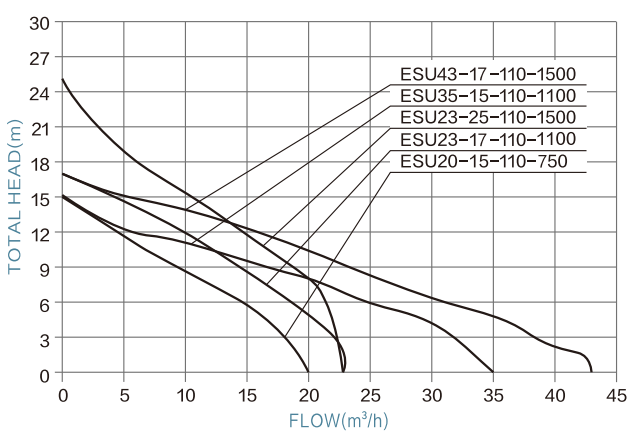

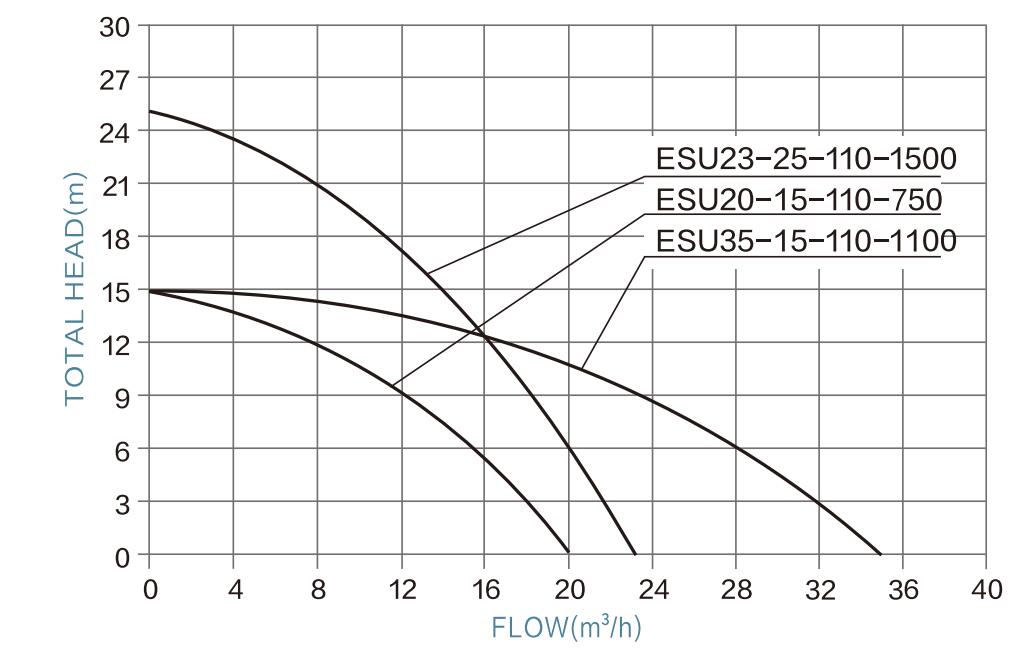

Performance Curves :

Performance Data :

ITEM	Voltage	Optimum input voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Solar panel - Open circuit voltage(VOC)	Solar panel - Power
ESU20-15-110-750	110V	110V-150V	750W	20m³/h	15m	2"	0.6m	<220V	≥1.3*PUMP POWER
ESU23-17-110-1100	110V	110V-150V	1100W	23m³/h	17m	2"	0.6m	<220V	≥1.3*PUMP POWER
ESU23-25-110-1500	110V	110V-150V	1500W	23m³/h	25m	2"	0.6m	<220V	≥1.3*PUMP POWER
ESU35-15-110-1100	110V	110V-150V	1100W	35m³/h	15m	3"	0.6m	<220V	≥1.3*PUMP POWER
ESU43-17-110-1500	110V	110V-150V	1500W	43m³/h	17m	3"	0.6m	<220V	≥1.3*PUMP POWER
