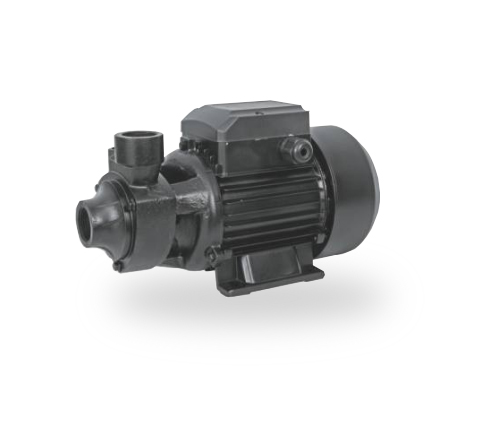

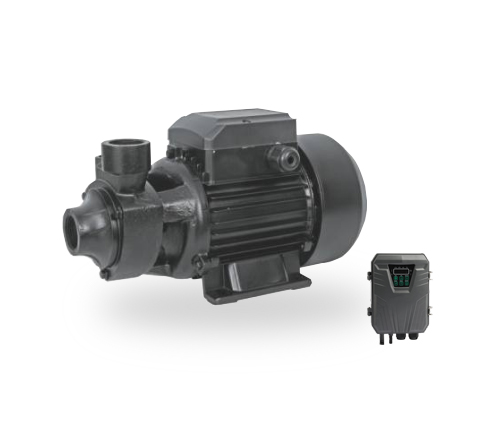

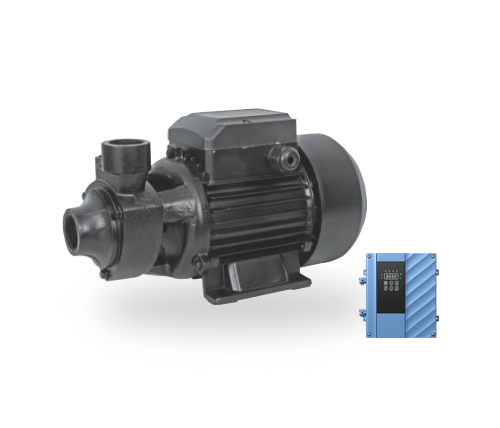

The EQB Series Solar Vortex Pump features a high-efficiency brushless DC motor designed for solar-powered water pumping in challenging environments. Its vortex pump design allows it to handle water containing suspended solids or debris, providing smooth and reliable flow without clogging. Compact and energy-efficient, this pump is ideal for residential water supply, agricultural irrigation, and off-grid solar water systems where durability and versatility are essential.
Brushless DC Motor: Offers maintenance-free, energy-efficient operation under solar power conditions.
Vortex Pump Design: Handles water with suspended solids, reducing clogging and ensuring smooth, continuous flow.
Durable Construction: Built for long-term performance in residential, agricultural, and remote solar applications.
Compact & Easy Installation: Suitable for solar water supply in homes, farms, and small irrigation systems.
Energy-Efficient & Low Maintenance: Optimized for reliable solar-powered operation with minimal upkeep.
Solar-powered household and community water supply
Agricultural irrigation for fields, orchards, and greenhouses
Off-grid water pumping projects in rural or remote areas
Water transfer from ponds, reservoirs, or wells with debris
Energy-efficient solar vortex pumping for domestic and small-scale industrial use

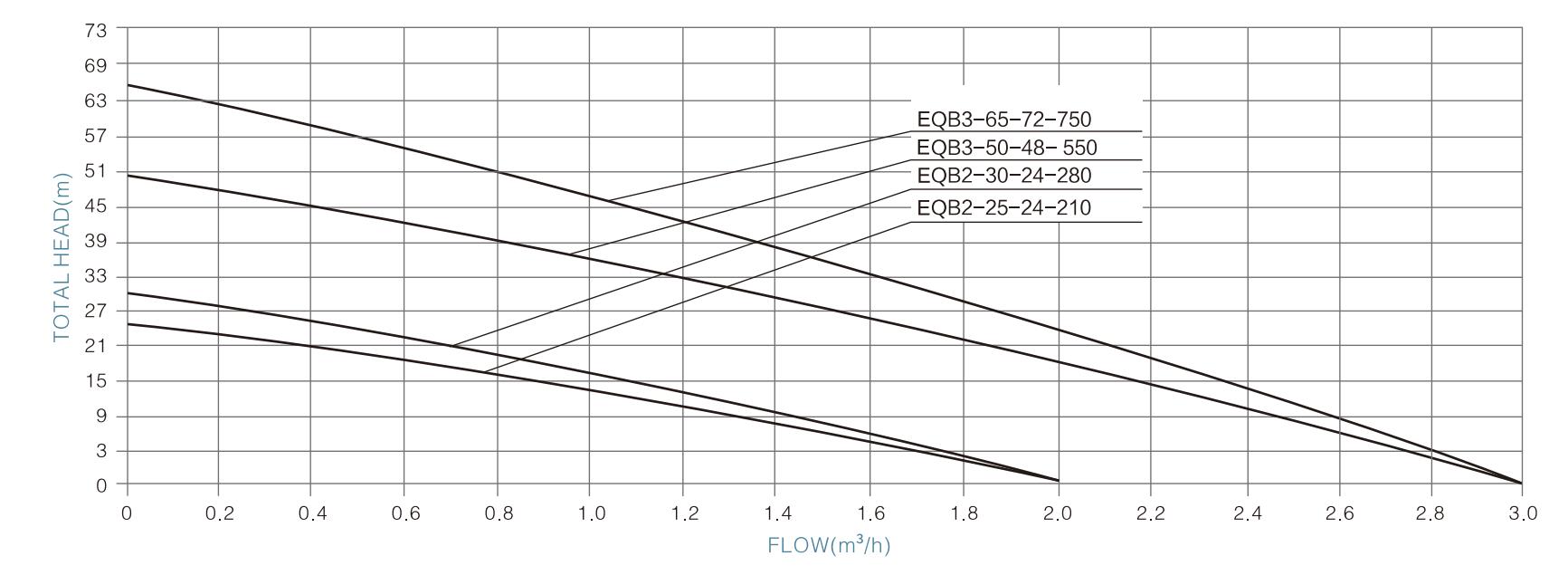

| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage(VOC) |
Solar panel - Power |
| EQB2-25-24-210 | 24V | 30V-48V | 210W | 2m³/h | 25m | 1×1" | 2m | <60V | ≥1.3*PUMP POWER |
| EQB2-30-24-280 | 24V | 30V-48V | 280W | 2m³/h | 30m | 1×1" | 2m | <60V | ≥1.3*PUMP POWER |
| EQB3-50-48-550 | 48V | 60V-90V | 550W | 3m³/h | 50m | 1×1" | 2m | <120V | ≥1.3*PUMP POWER |
| EQB3-65-72-750 | 72V | 90V-120V | 750W | 3m³/h | 65m | 1×1" | 2m | <170V | ≥1.3*PUMP POWER |
