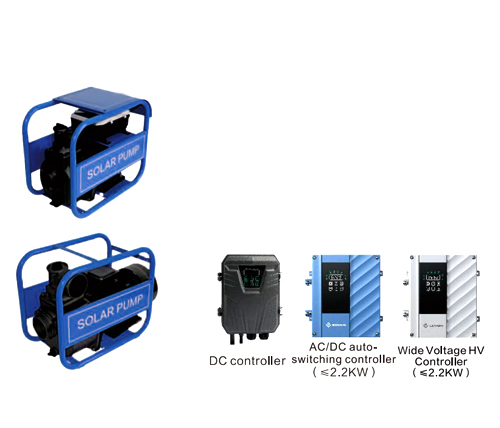

The ADSU Series Solar Centrifugal Pump features an advanced AC/DC hybrid brushless motor, providing flexible operation on both solar DC power and mains AC power. Designed for reliable solar water pumping, this centrifugal pump delivers smooth and consistent water flow while maintaining high efficiency and low energy consumption. Its robust construction and maintenance-free brushless motor make it an ideal solution for residential, agricultural, and off-grid water supply systems.
AC/DC Hybrid Brushless Motor: Ensures stable operation under variable solar or AC power sources for versatile water pumping solutions.
Solar Centrifugal Pump Design: Provides smooth, efficient water flow for irrigation, household, and small community systems.
Durable & Low Maintenance: Brushless motor design minimizes wear, reduces maintenance, and extends service life.
Compact & Easy Installation: Suitable for rooftop, garden, and off-grid setups requiring solar-powered water transfer.
Energy-Efficient Operation: Optimized for improve performance with solar energy, reducing electricity costs and carbon footprint.
Solar-powered household water supply systems
Residential and small-scale irrigation for gardens, farms, and orchards
Off-grid water projects in rural and remote areas
Community water supply systems requiring flexible AC/DC operation
Energy-saving solar centrifugal pumping for residential and agricultural needs

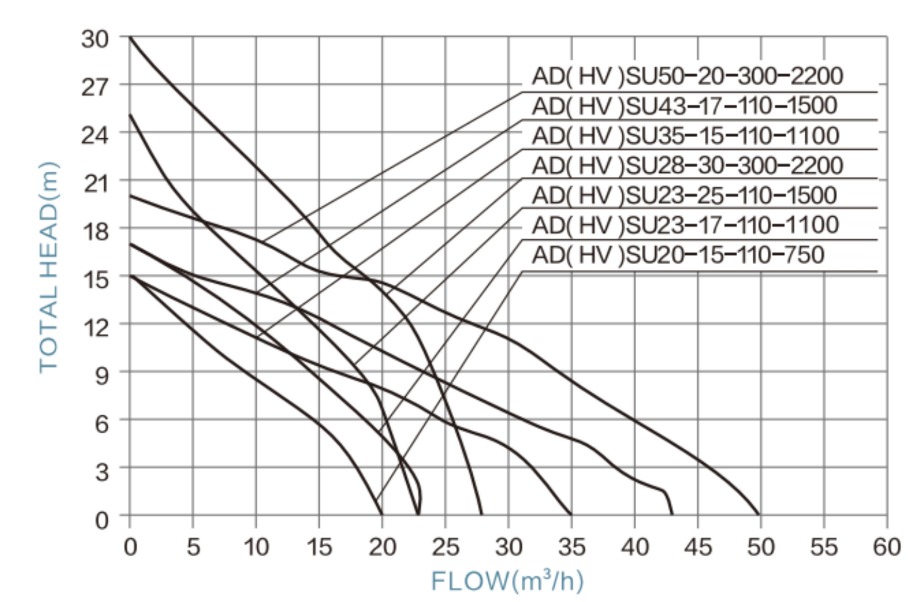

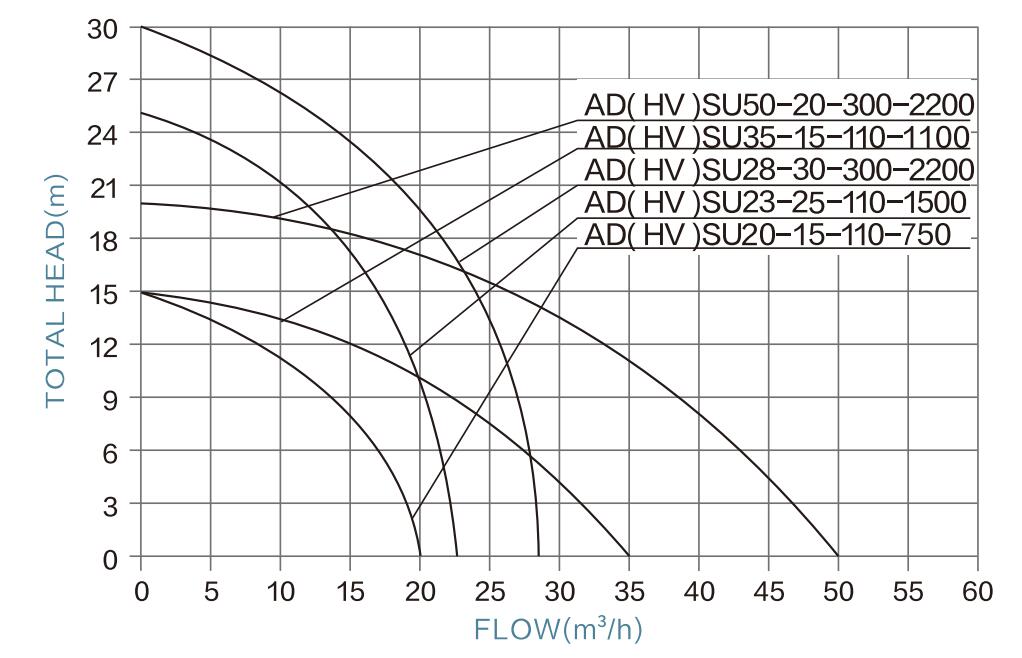

| ITEM | (AC) Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage(VOC) |
Solar panel - Power |
| ADSU20-15-110-750 | 85V-280V | 110V-350V | 750W | 20m³/h | 15m | 2" | 0.6m | <450V | ≥1.3*PUMP POWER |
| ADSU23-17-110-1100 | 85V-280V | 110V-350V | 1100W | 23m³/h | 17m | 2" | 0.6m | <450V | ≥1.3*PUMP POWER |
| ADSU23-25-110-1500 | 85V-280V | 110V-350V | 1500W | 23m³/h | 25m | 2" | 0.6m | <450V | ≥1.3*PUMP POWER |
| ADSU28-30-300-2200 | 85V-280V | 300V-350V | 2200W | 28m³/h | 30m | 2" | 0.6m | <450V | ≥1.3*PUMP POWER |
| ADSU35-15-110-1100 | 85V-280V | 110V-350V | 1100W | 35m³/h | 15m | 3" | 0.6m | <450V | ≥1.3*PUMP POWER |
| ADSU43-17-110-1500 | 85V-280V | 300V-350V | 1500W | 43m³/h | 17m | 3" | 0.6m | <450V | ≥1.3*PUMP POWER |
| ADSU50-20-300-2200 | 85V-280V | 300V-350V | 2200W | 50m³/h | 20m | 3" | 0.6m | <450V | ≥1.3*PUMP POWER |
