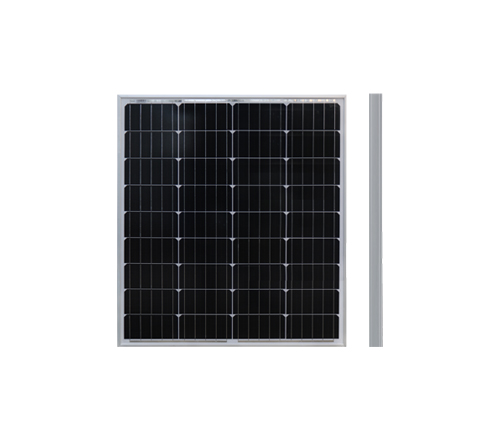

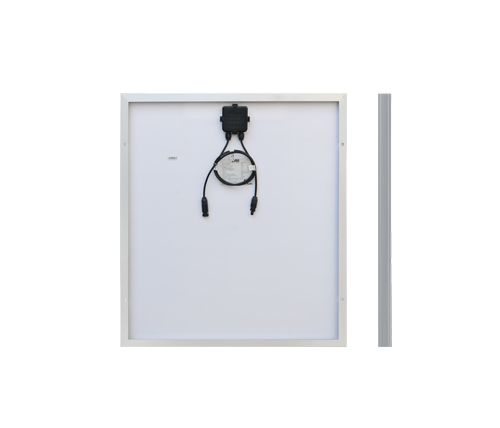

80W Mono-crystalline Half-Cut 36 Cell Small-size Solar Panel

80W Mono-crystalline Half-Cut 36 Cell Small-size Solar Panel

Mono-crystalline

Half-Cut
36 cells,166mm
Small-size

Contact Us

PREV：100W Mono-crystalline Half-Cut Small-size Durable Solar Panel
NEXT：50W Mono-crystalline Half-Cut 36 Cell Small-size Solar Panel

Description
Components
Curves
Performance Data
Contact Us

Electrical Performance Data:

Panel type	ESM36MH
Dimensions (mm)	820x545x30
Weight (kg)	7.00
Cell Type (mm)	63x166
Number of Cells	36 (3x12)
Maximum Power (Wp)	80W
Open circuit Voltage (Voc)	23.60V
Short circuit Current (lsc)	4.32A
Maximum Power Voltage (Vm)	19.85V
Maximum Power Current (lm)	4.03A
Maximum Series Fuse	10A
Number of Diodes	1
Cable Type and Length	Without cable
Standard Test Conditions	1000W/M², 25C , AM1.5

Production of Solar Panel :
