Name: XLA 504/604 Permanent Magnet Variable Frequency Self-Suction Pump
Brand: Taizhou Edwin Electric Co., Ltd.

Description :

The XLA504/604 Intelligent Permanent Magnet Booster Pump is a high-efficiency, multi-purpose pump designed for the circulation, transportation, and boosting of low-viscosity, neutral, non-explosive liquids free of solid particles and fibers. It delivers stable performance across residential, commercial, and industrial scenarios, with a focus on energy saving and reliable operation.

Key features :

IE5 High-Efficiency Permanent Magnet Motor: Adopts an IE5 permanent magnet motor with up to 96% efficiency, automatically adjusting power output based on load, delivering over 30% energy savings compared to asynchronous motors.

100% Copper Wire: Wound with pure copper wire to ensure stable electrical performance, reduce heat generation, and extend service life.

Energy Saving & Versatile: Supports wide voltage and dual-frequency operation, with simple operation and multiple built-in safety protections.

One-Click Pressure Regulation: Features an intuitive one-click pressure adjustment design, with IP54 protection that enables safe outdoor use.

Anti-Water Hammer Design: Integrates a non-return water structure and high-quality sensors, effectively eliminating water hammer, ideal for water tower, hot water, and whole-house pressure boost systems.

All fluid components: made of stainless steel, Safe, Hygienic, and Durable.

Working conditions :

Liquid Temperature: 70°C

Ambient Temperature: 40°C

Insulation Class: Class F

Protection Grade: IP54

Max Suction: +8.5m

Input Voltage: Single phase 180-260V, 50/60Hz

Application :

Ideal for well water lifting and water tower water filling.

Perfect for living water supply and garden irrigation.

Effective for pipeline pressure boosting and supporting equipment such as solar energy water supply systems and water heaters.

Designed for transferring clean water or non-corrosive liquids without solid particles and fibers.

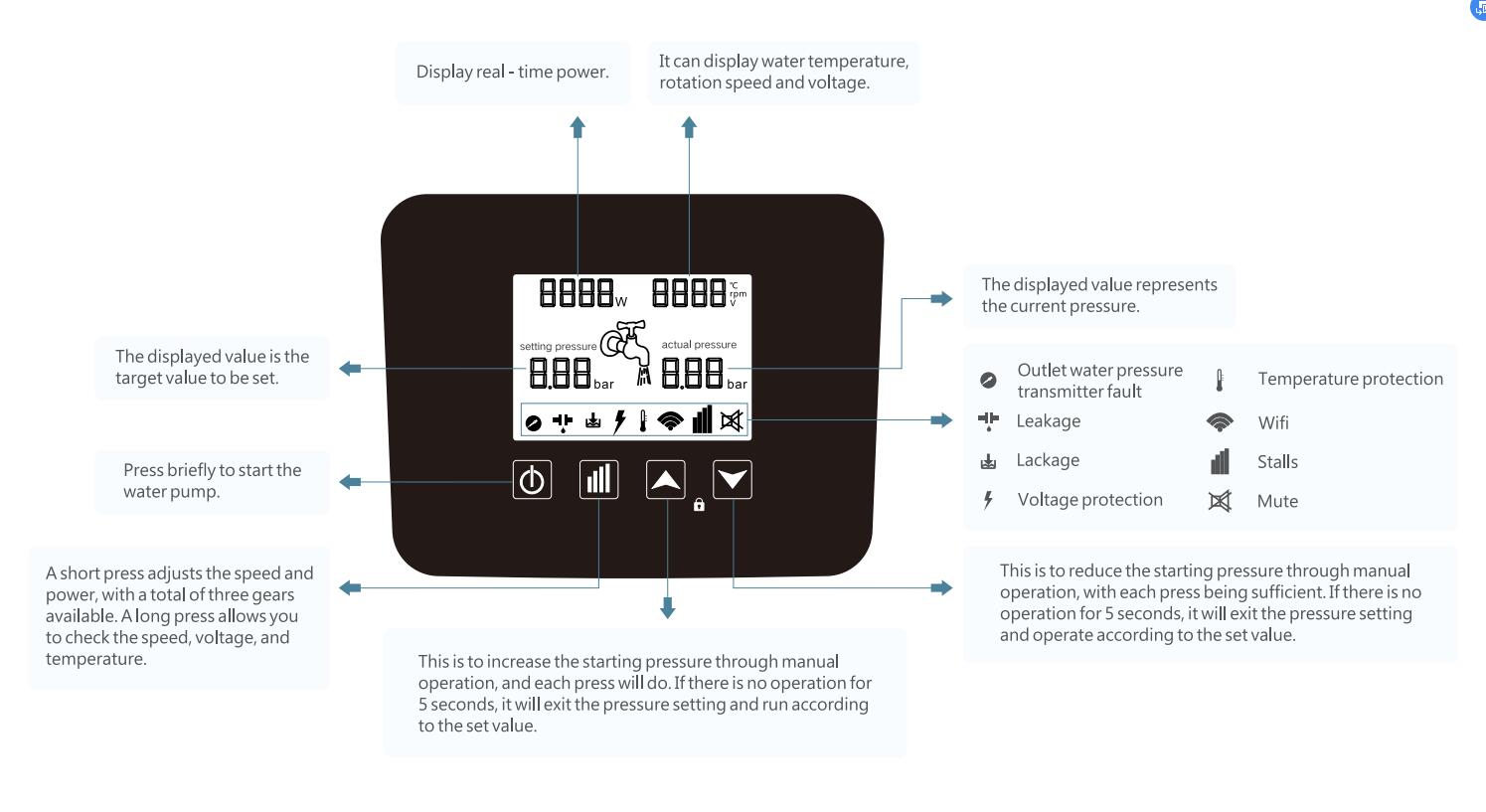

Operation Interface :

Component	Material
Pump body	Engineering plastic
Base&upper cover	Engineering plastic
Impeller	Engineering plastic
Shaft seal	Stainless steel
Shaft	Silicon carbide/graphite

Model	Frequency（Hz）	Power（W）	Max.flow（L/min）	Max.head（m）	Max.suction（m）	Inlet&Outlet（inch）	Max.rpm（r/min）	N.W.（kg）	G.W.（kg）	Size(L×W×H)（mm）
XLA504	50/60	100-550	83	45	8.5	1" x 1"	5200	9	11	377192321
XLA604	50/60	500-1200	100	53	8.5	1" x 1"	3300	9	11	377192321
