HVSU Series Wide Voltage Low Power Consumption DC Solar Centrifugal Pump

The HVSU Series Solar Centrifugal Pump features a wide-voltage DC motor designed for efficient and reliable solar-powered water pumping. Its centrifugal pump design ensures smooth and consistent water flow, making it ideal for residential, agricultural, and small-scale irrigation applications. Engineered for low power consumption, the HVSU Series improves energy efficiency while providing stable operation under variable solar power conditions.

PREV：HVCPM Series Wide Voltage Brushless DC Motor Solar Centrifugal Pump
NEXT：EZB Series DC Brushless Motor Solar Self-Priming Pump

Description
Components
Curves
Performance Data
Contact Us

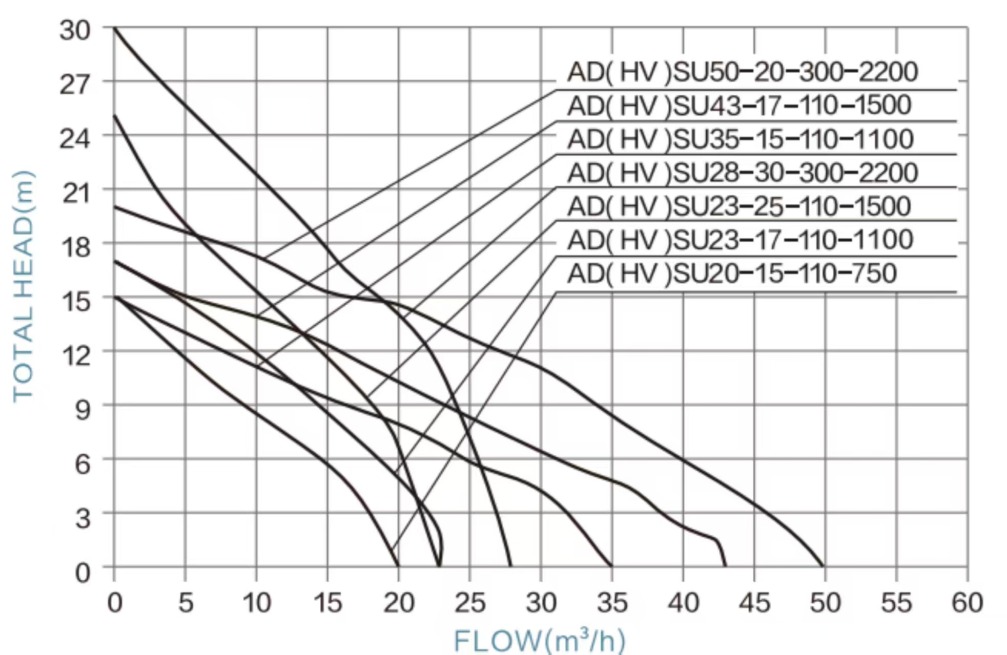

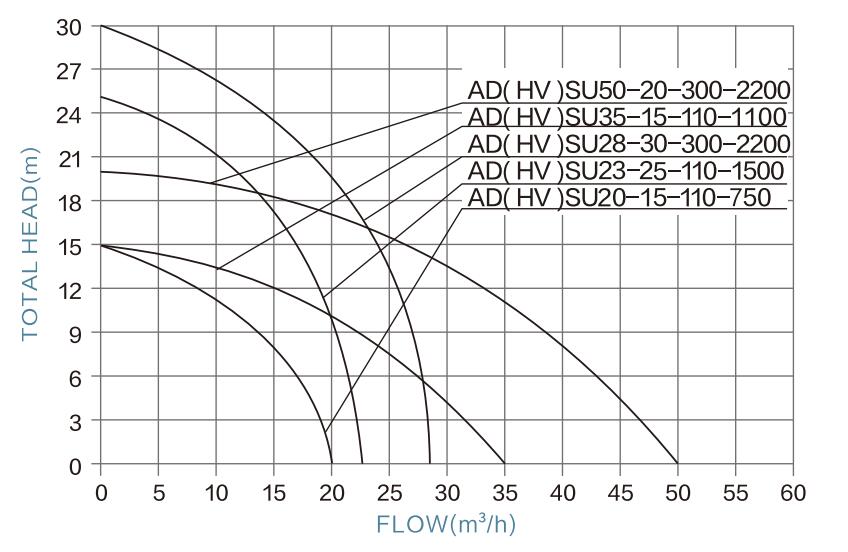

Performance Curves :

Performance Data :

ITEM	(AC) Voltage	Optimum input voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Solar panel - Open circuit voltage(VOC)	Solar panel - Power
HVSU20-15-110-750	/	110V-350V	750W	20m³/h	15m	2"	0.6m	<450V	≥1.3*PUMP POWER
HVSU23-17-110-1100	/	110V-350V	1100W	23m³/h	17m	2"	0.6m	<450V	≥1.3*PUMP POWER
HVSU23-25-100-1500	/	110V-350V	1500W	23m³/h	25m	2"	0.6m	<450V	≥1.3*PUMP POWER
HVSU28-30-300-2200	/	300V-350V	2200W	28m³/h	30m	2"	0.6m	<450V	≥1.3*PUMP POWER
HVSU30-15-110-1100	/	110V-350V	1100W	35m³/h	15m	3"	0.6m	<450V	≥1.3*PUMP POWER
HVSU43-17-100-1500	/	300V-350V	1500W	43m³/h	17m	3"	0.6m	<450V	≥1.3*PUMP POWER
HVSU50-20-300-2200	/	300V-350V	2200W	50m³/h	20m	3"	0.6m	<450V	≥1.3*PUMP POWER
