WQ-2Z Series Efficient Hydraulic Performance Non-clog Impeller Submersible Sewage Pump

Efficient Hydraulic Performance
Non-clog Impeller
Submersible Sewage Pump
Max water depth : 10m
PH : 6-10
power : 0.75~7.5kW ,2P
50Hz :2850rpm
60Hz : 3450rpm

PREV：VD Series 3HP HT200 Impeller Sewage Pump for Drainage System
NEXT：VBD Series 220V 1.1kW to 2.5kW Grinder Sewage Pump

Description
Components
Curves
Performance Data
Contact Us

Description :

WQ-2Z Series submersible sewage pumps are an essential component in wastewater management systems. These pumps are specifically designed to handle the challenging task of transferring sewage and waste materials efficiently and effectively. Today, we will delve into the remarkable features of the WQ-2Z Series Efficiency Hydraulic Performance Non-clog Impeller Submersible Sewage Pump.

The key point of this pump lies in its unique spiral structure and sharp blade impeller. This design ensures not only high-efficiency hydraulic performance but also exceptional cutting performance. The impeller's ability to slice through waste materials effortlessly is truly remarkable.

Now, let's explore the significance of this pump's features. Firstly, the efficient hydraulic performance guarantees smooth and reliable operation, minimizing the risk of clogging and blockages. This is crucial in sewage systems where any disruption can lead to severe consequences.

Secondly, the cutting performance of the impeller is a game-changer. It enables the pump to handle solid waste materials with ease, preventing any potential obstructions in the system. This ensures a continuous flow of wastewater, such as cotton cloth and fiber fabrics can easily pass through pipes after being cut into pieces,maintaining the overall functionality of the sewage system.

In conclusion, the WQ-2Z Series Efficiency Hydraulic Performance Non-clog Impeller Submersible Sewage Pump is a remarkable solution for sewage management. Its unique design, incorporating a spiral structure and sharp blade impeller, guarantees both efficient hydraulic performance and exceptional cutting performance. With this pump, you can ensure the smooth operation of your sewage system, minimizing the risk of clogging and blockages. Embrace the power of this innovative technology and experience the difference it can make in your wastewater management.

Characteristics :

A "cutter mechanism" is provided by the combined action of a carbide blade integrated into a non-clog impeller and the5awshaped inner surface of a suction cover. This Construction ensures that fibrous foreign matter is cut up, and sewage is transferred without clogging.

Applications :

1. For wastewater discharge from Industry, shopping mall, hospital, hotel.

2. For domestic sewage and storm-water drainage of uptown, parking lot and municipal engineering3 For sewage discharge of sewage treatment plant and farm.

4. For pumping muddy water and lye of construction factory and mine.

5 For pumping clean water of agriculture and aquaculture.

Operating Conditions :

Power : 0.75~7.5kW ,2P
50Hz : 2850rpm
60Hz : 3450rpm
Water temperature : up to 40°C
Max.water depth :10m
Capacity : up to 132m'/hHead: up to 41 meters
Discharge of liquid :1.3g/cm
PH : 6 to 10
Insulation class : F
Protection class : IP68
Cable length : 8m
Warranty : 1 year(according to our general sales conditions)

Options on request :

Other voltages
The length of cable is optional

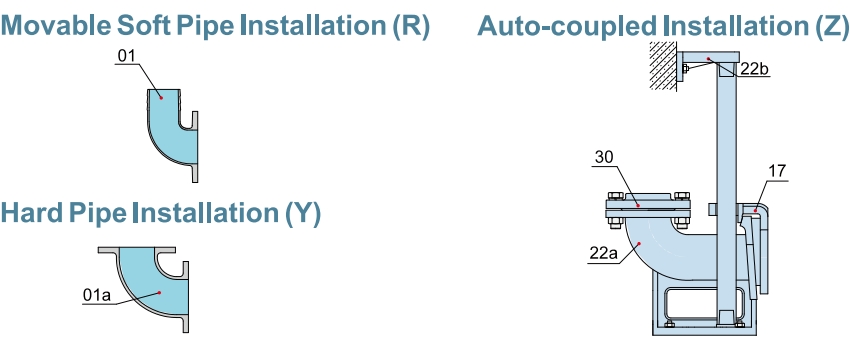

Installation :

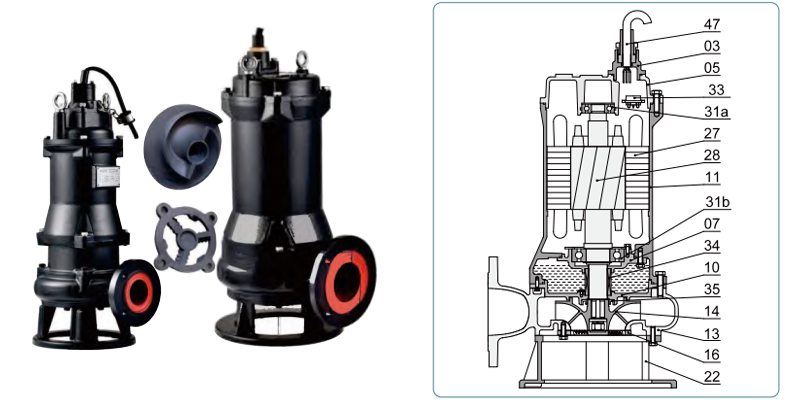

Components :

Material of construction
NO.	NAME	MATERIAL/SPEC.
01a	Hose coupling	ABS
01b	Hose coupling	PA66
05	Upper cover	PPS
06	Up-Bearing house	Aluminum die casting
07	Bearing house	Aluminum die casting
10	Seal house	PPS
11	Motor casing	AISI304SS
13	Pump body	ABS
14	lmpeller	PPO
21	Oil riser	LDPE
27	Stator
28	Rotor	Shaft:AISI304SS
31a	Bearing	Ball bearing
31b	Bearing	Ball bearing
32	Capacitor
33	Motor protector
34	Mechanical seal	Ceramic-Sic/Carbon-Ceramic
36	O'ring	NBR
37a	Gasket	NBR
37b	Gasket	NBR
37c	Gasket	NBR
47	Cable	H07RN-F

Performance Curves :

Technical Data :
