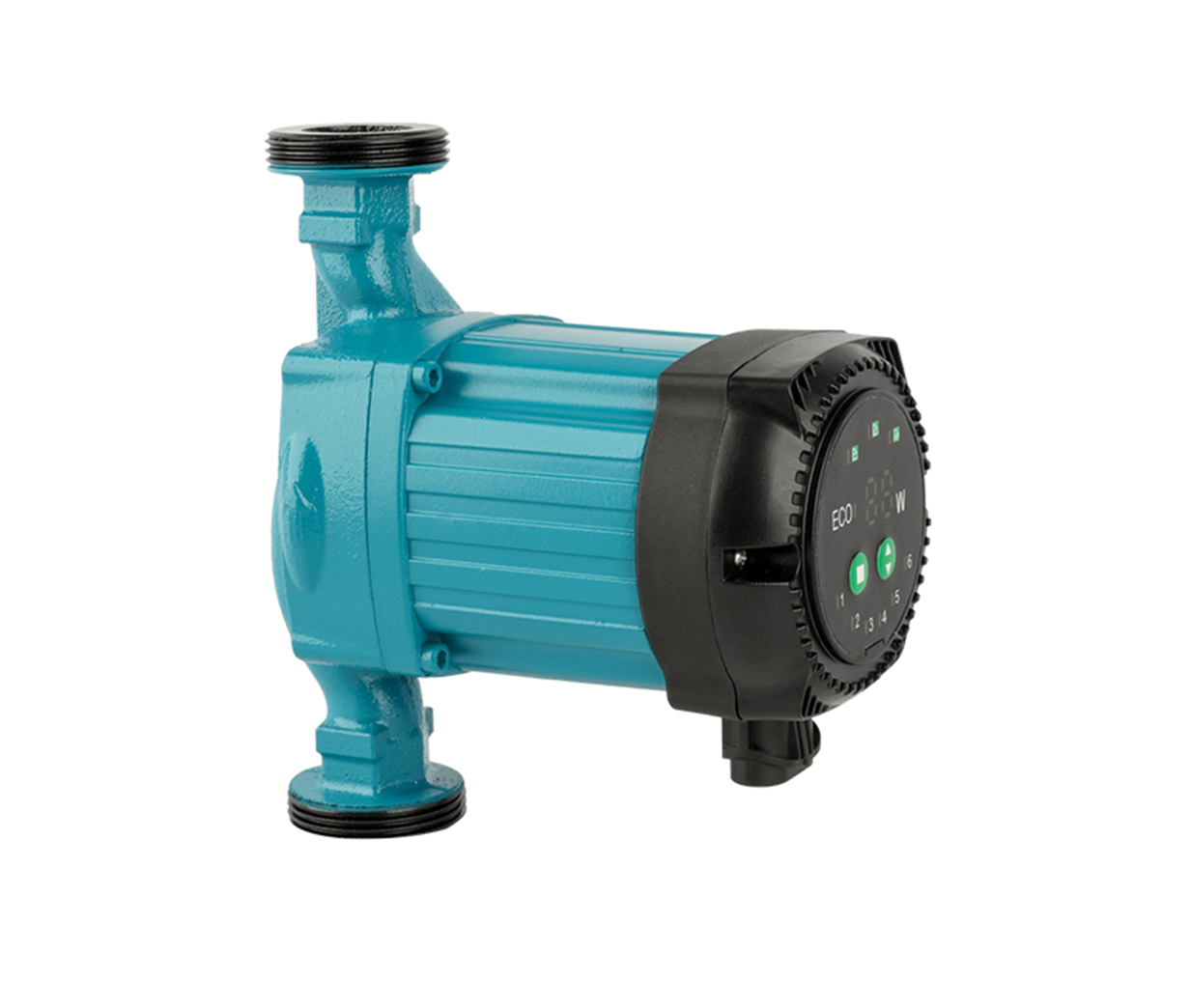

HRS-EAD Intelligent Circulation Pump

Model: HRS-EAD

Max. Head: 4M/5M/6M/7M

PREV：HRS-EA(B) Intelligent Circulation Pump
NEXT：HRS-EAY Intelligent Circulation Pump

Description
Components
Curves
Performance Data
Contact Us

Part	Material
Pump body	Cast iron
Impeller	PES
Stainless steel cover	304SS
Bearing	Ceramic
Gasket	Rubber
Brass bearing	Brass
Rator	SS&Copper
Ceramic shafting	Ceramic
Shielding	304SS
Stator	Silicon steel&Copper
Motor housing	Aluminum
Hexagon socket screws	Stainless steel
Exhaust screw	Brass
Nameplate	Nylon
Seat of terminal box	Nylon
Cover of termial box	Nylon

Model	Power	Max.Flow	Max.Head	Voltage	Mater of pump body				Dimension(mm)
	(W)	(m3/h)	(m)	220VI 50Hz	Cast Iron	Plastic	Brass	Stainless steel	L1		L2	B1	B2	H1	H2	G	Weight (Kg)
	(W)	(m3/h)	(m)	220VI 50Hz	Cast Iron	Plastic	Brass	Stainless steel	130	180	L2	B1	B2	H1	H2	G	Weight (Kg)
HRS15/4EAD	5~22	1.8	4	★	★		★	★	★			96	46	169	139	1"	2.1
HRS25/4EAD		2.6					★		★	★		96	46	169	139	11/2"	2.3
HRS32/4EAD		3								★		96	46	169	139	2"	2.4
HRS15/5EAD	5~32	2.3	5	★			★	★	★			96	46	169	139	1"	2.1
HRS25/5EAD		3.1			★		★		★	★		96	46	169	139	11/2"	2.3
HRS32/5EAD		3.4								★		96	46	169	139	2"	2.4
HRS15/6EAD	5~45	2.4	6	★	★		★	★	★			96	46	169	139	1"	2.1
HRS25/6EAD		3.6			★		★		★	★		96	46	169	139	11/2"	2.3
HRS32/6EAD		3.6			★					★		96	46	169	139	2"	2.5
HRS15/7EAD	5~47	2.7	7	★	★		★	★	★			96	46	169	139	1"	2.1
HRS25/7EAD		3.7					★		★	★		96	46	169	139	11/2"	2.3
HRS32/7EAD		3.7			★					★		96	46	169	139	2"	2.4
