Liquid Temperature: 0–70°C
Ambient Temperature: 40°C
Insulation: Class F
Protection: IPX4
Input Voltage: Single-phase 180–260V, 50/60Hz
The XLBJL Series delivers efficient, intelligent self-priming and pressure-boosting performance for residential, commercial, and light industrial water systems.
Key Features ：
IE5 Permanent Magnet Motor: Adopts high-efficiency IE5 permanent magnet technology, paired with 100% copper wire for reliable and energy-saving operation.
Energy Saving & Wide Voltage: Supports single-phase 180-260V, 50/60Hz power supply, enabling stable operation under voltage fluctuations while reducing energy consumption.
One-click Pressure Regulation: Features a simple and beautiful operation interface for one-click pressure adjustment, with IP54 protection allowing direct outdoor use.
Self-start Anti-stick Function: Automatically performs a self-start every 12 hours when idle for a long time, stopping after a few seconds to effectively prevent pump seizure due to long-term non-use.
Multiple Protections: Integrates comprehensive protections to safeguard the pump from damage caused by abnormal working conditions.
Working conditions :
Liquid Temperature: 0-70°C.
Ambient Temperature: 40℃
Insulation: Class F
Protection: IPX4
Input Voltage: Single phase 180-260V, 50/60Hz
Application :
Applicable to low viscosity, neutral, non-explosive liquids containing no solid particles or fibers (oil or oil-based liquids require a special pump type).
Circulation of air conditioning systems.
Cooling systems.
Water treatment (water purification).
Industrial cleaning systems.
Liquid transportation, circulation, and lifting.
Food, beverage, agricultural, and other ingredient systems

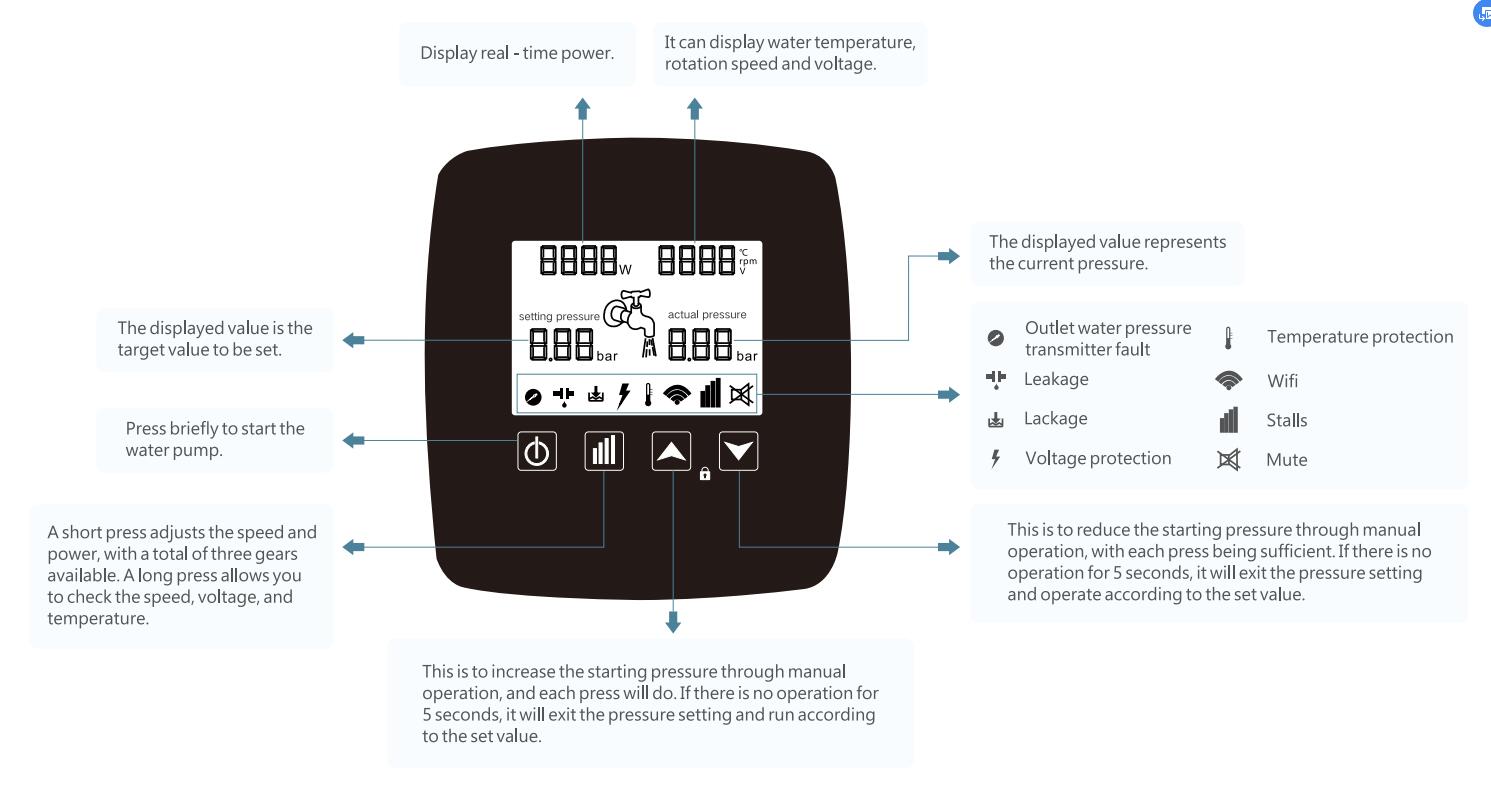

Operation Interface :
| Component | Material |
| Pump body | Stainless steel |
| Motor housing | Aluminum |
| Impeller | Stainless steel |
| Pump support | Aluminum |
| Mechanical seal | Silicon carbide/graphite |
| Model | Frequency (Hz) |
Power (w) |
Max.flow (L/min) |
Max.head (m) |
Max.rpm (r/min) |
Inlet&Outlet (inch) |
N.W. (kg) |
Size(L×W×H) (mm) |
| 25XLBJL4-30 | 50/60 | 100-1100 | 133 | 50 | 5000 | 1.25" x1" | 11 | 324×146×250 |
| 40XLBJL8-50 | 50/60 | 400-2200 | 200 | 60 | 4500 | 1.5"x1.25" | 25 | 408×190×303 |
