EVLA Series Stable Chassis Plain Washer Dustproof Multistage Pump

Dustproof Design

Stable Chassis
Plain Washer
Multistage Design
High-Quality Construction

PREV：No previous product
NEXT：EV(F)A Series Noise Reduction Design Acid-base Vertical Surface Pump

Description
Components
Curves
Performance Data
Contact Us

Description :

The EVLA Series Stable Chassis Plain Washer Dustproof Multistage Pump is a specialized pump designed for various applications where a dustproof and stable operation is required. It is constructed with high-quality materials and features a multistage design for efficient fluid movement.

Key Features :

1、Dustproof Design : The pump is equipped with a dustproof design, which helps prevent the ingress of dust and other particles into the pump. This feature is particularly important in environments where dust or debris can cause damage or hinder the pump's performance.

2、Stable Chassis : The pump is built with a stable chassis, providing a sturdy and reliable foundation for the pump. This helps minimize vibrations and ensures smooth operation even in demanding conditions.

3、Plain Washer : The pump incorporates plain washers, which are used to distribute the load and provide a secure connection between the pump components. This helps enhance the pump's stability and performance.

4、Multistage Design : The pump features a multistage design, which means it consists of multiple impellers arranged in series. This design allows for increased pressure and efficient fluid movement, making it suitable for applications that require high-pressure pumping.

5、High-Quality Construction : The pump is constructed with high-quality materials to ensure durability and longevity. This includes corrosion-resistant metals or non-metallic materials, depending on the specific requirements of the application.

Application :

Water supply: Pressure boosting for main pipes and high-rise buildings
Industrial pressure boosting: Water system, cleaning system,high pressure washing system and firefighting system
Field irrigation(flooding), Sprinklerirrigation, Drip-feed irrigation

Pump :
EVFA,EVAare non-self priming vertical multistage centrifugal pump,the pumps are available with standard motor, the inlet and outlet are located at the pump bottom at the same plane(inline type)
All pumps are equipped with a maintenance-free mechanical seal set of the cartridge type.

Motor :
Liquid temperature:-20℃~+70℃
Max. ambient temperature:+40°
Altitude: up to 1000 m
Standard voltage: Single-phase: 220~240V/50Hz; Three-phase:380V/50Hz

Components :

Materials Table
NO.	Part	Material
1	Motor
2	Coupling
3	Support	Cast iron
4	Protective cover
5	Mechanical Seal	Carbon / Ceramic
6	Two-head bolt
7	Pump cover
8	Elastic ring	Rubber
9	Outlet section
10	Pump shaft
11	Long sleeve	AISI 304
12	Last stage diffuser	Stainless steel
13	Impeller	Stainless steel
14	"O" ring
15	Pump barrel	AISI 304

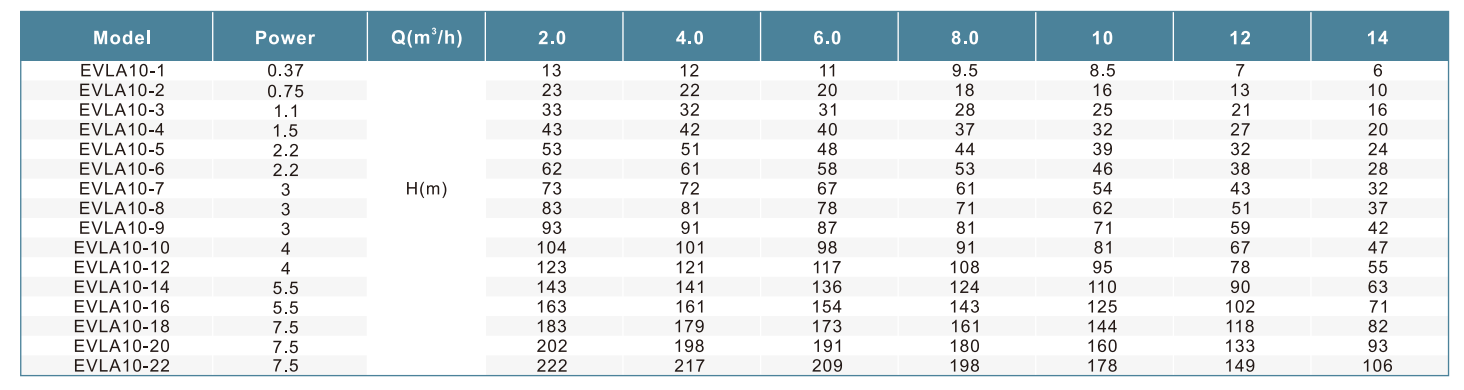

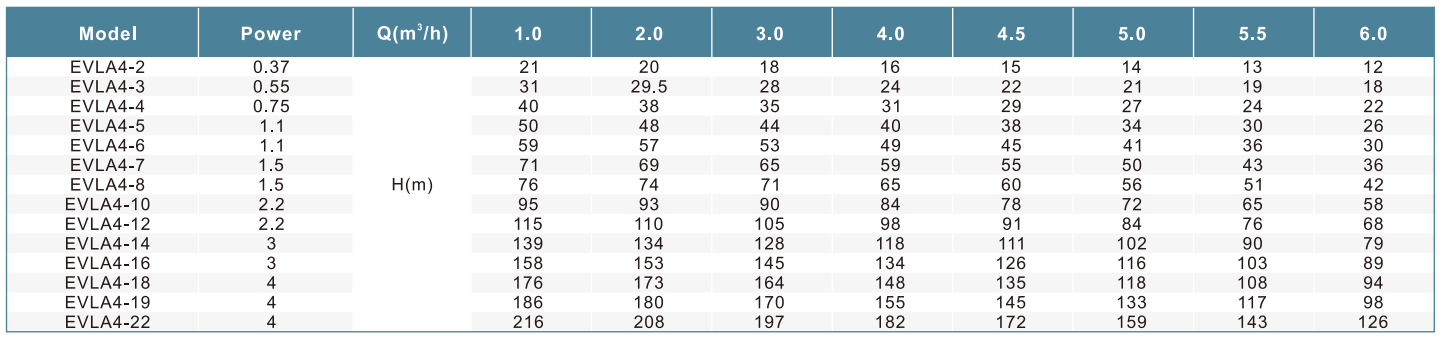

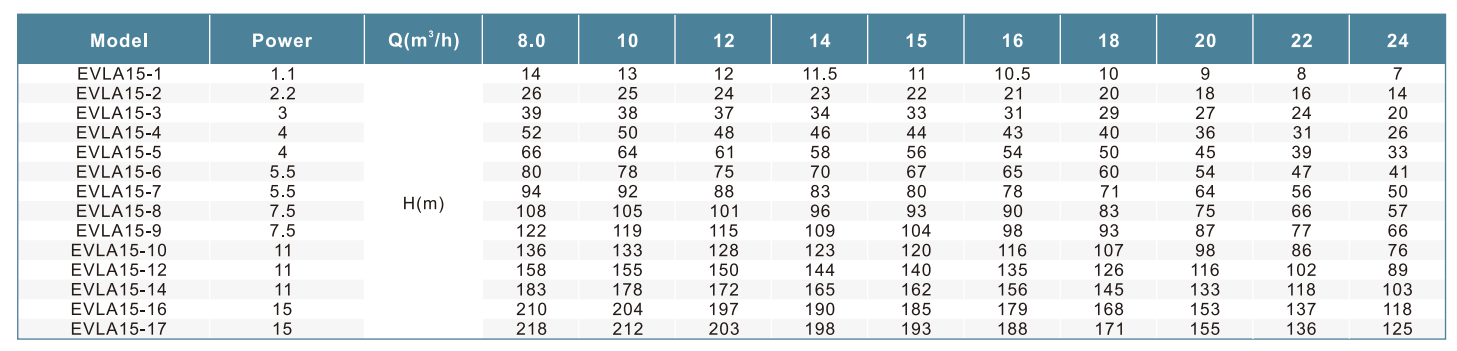

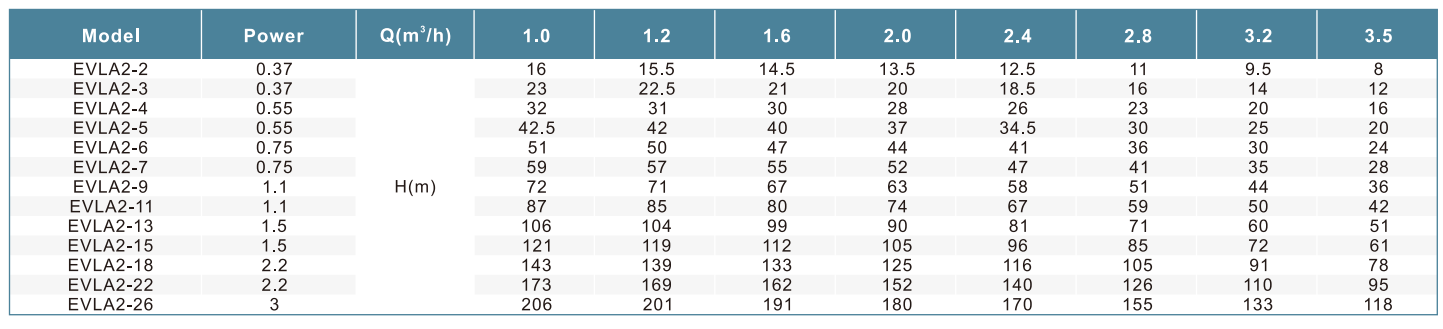

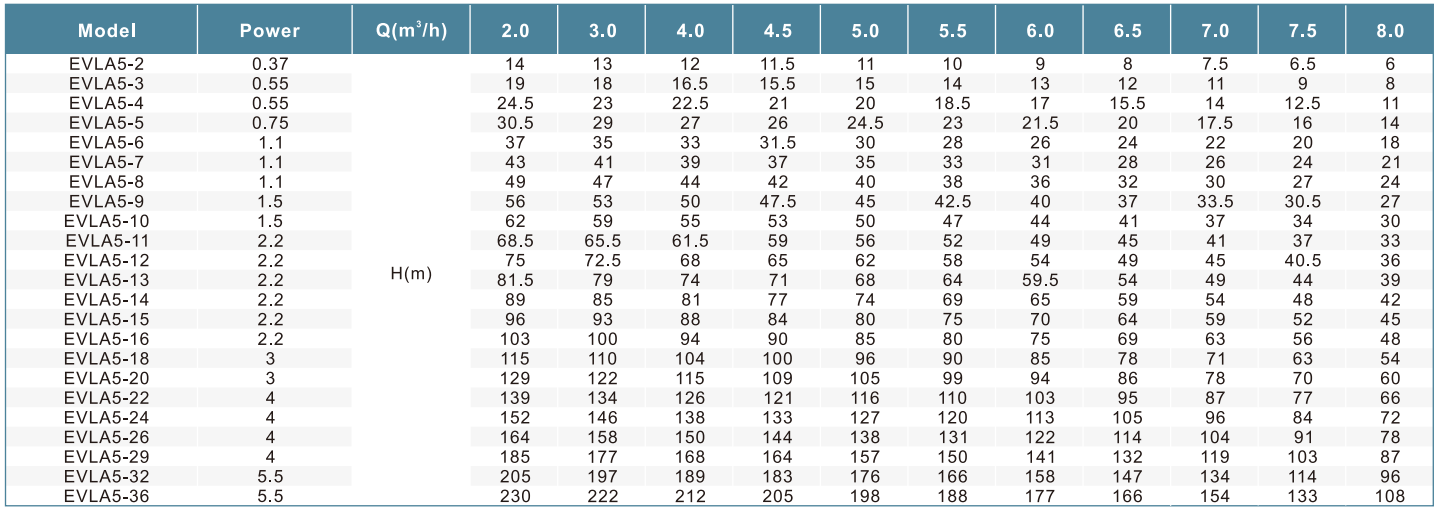

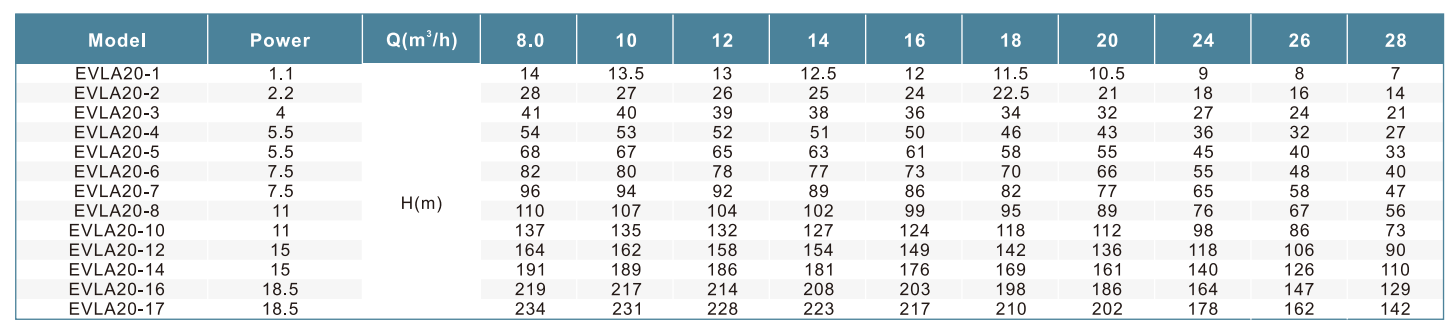

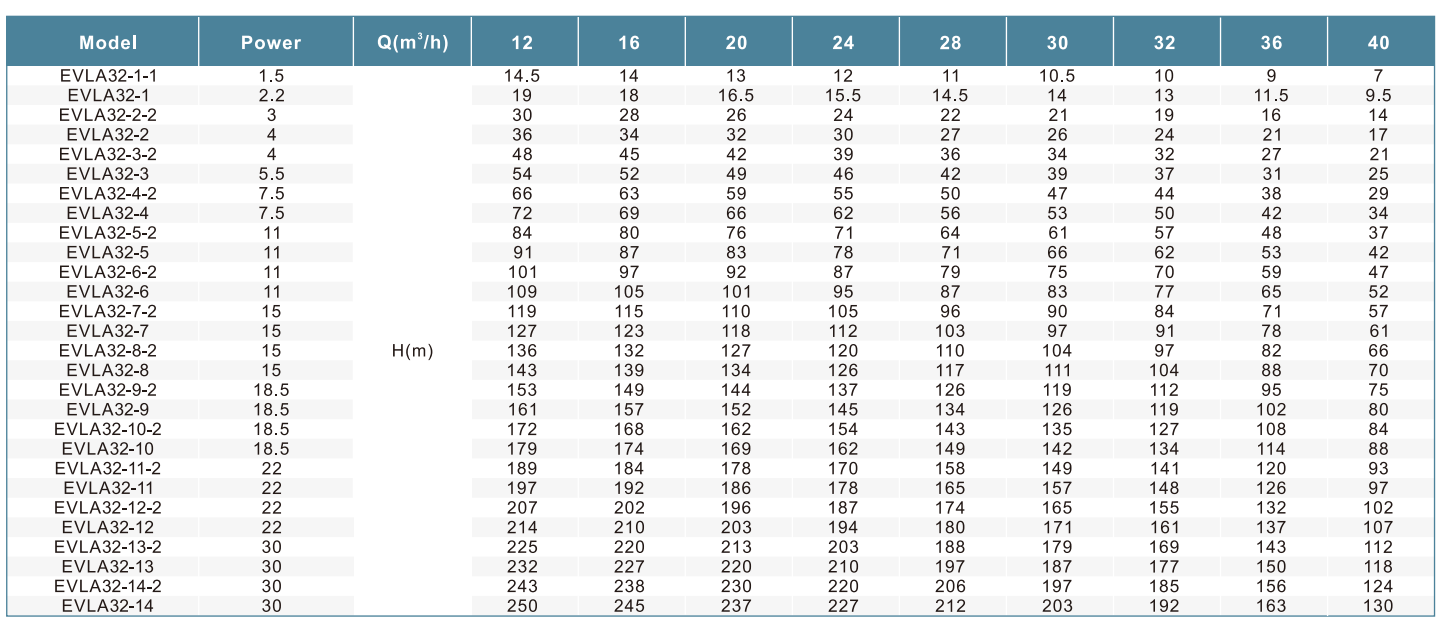

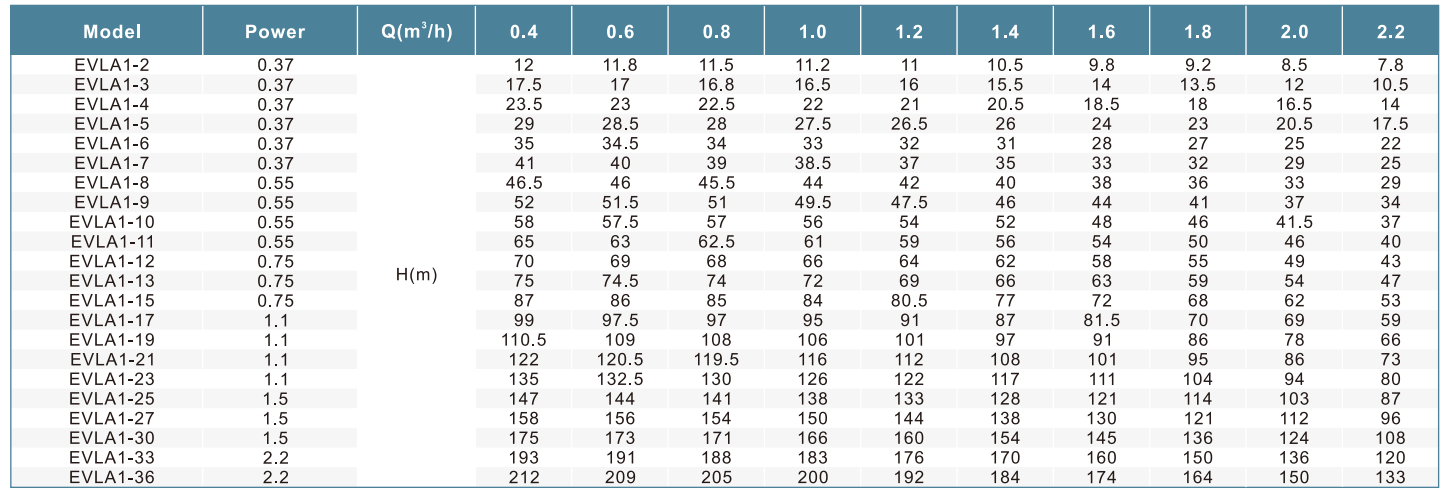

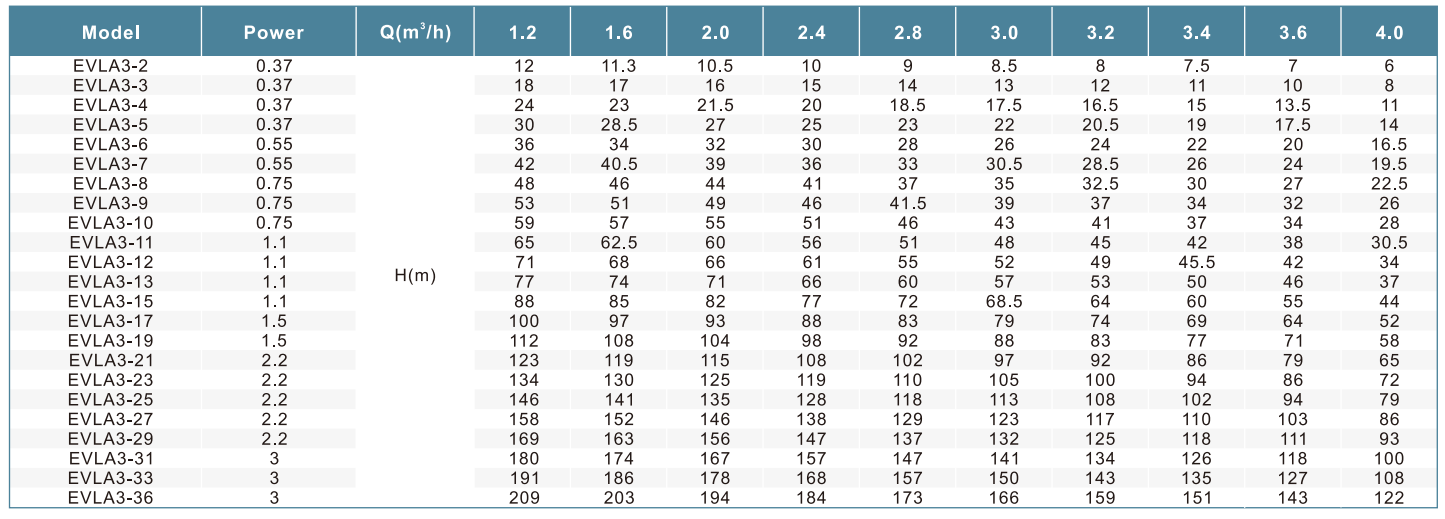

Technical Data :

\

About Us

Taizhou Edwin Electric Co., Ltd.

EDWIN PUMP is an OEM/ODM EVLA Series Stable Chassis Plain Washer Dustproof Multistage Pump Company and Wholesale EVLA Series Stable Chassis Plain Washer Dustproof Multistage Pump Supplier, which supply a wide range of water pumps and water treatment peripheral products to customers around the world.
With these advanced facilities & instruments, we can supply the most precise finished products to our customers, and make products meet their overall inspection requirements on chemical composition, mechanical properties, non-destructive testing, and high accurate dimensional inspections.
