BG Series Super Silent Auto-adaptive Dual Control Low Voltage Permanent Magnet Household Booster Pump

Low Voltage : DC 30-48V

High suction of 9.5m

Super Silent ( 20-30dB )

Dual Control

No Rust water

Energy saving

30,000 hours of long life

PREV：No previous product
NEXT：BPG Series Super Silent Variable Frequency Auto-adaptive Permanent Magnet Booster Pump

Description
Components
Curves
Performance Data
Contact Us

Description :

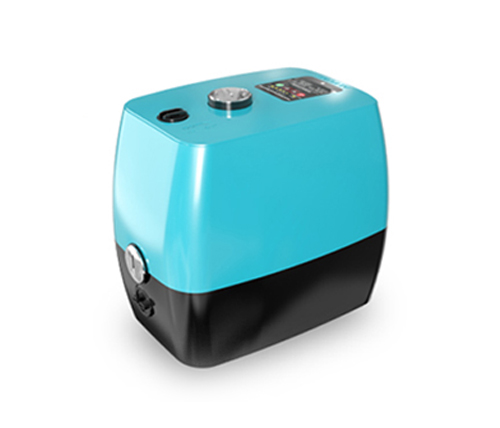

The BG Series Super Silent Auto-adaptive Dual Control Low Voltage Permanent Magnet Household Booster Pump is a high-quality pump designed to increase water pressure in residential environments.

Key Features ：

Safety First: Operates at a DC 30-48V output voltage, ensuring it's a human-safe voltage with no risk of electric shock.

Longevity: Boasts an impressive service life of 30,000 hours, making it a long-term investment for your water system.

Silent Operation: With a noise level of just 20-30dB, thanks to its permanent magnet motor and water cooling structure, it operates quietly without the need for a cooling fan.

Corrosion-Free: Constructed with food-grade plastic for all fluid parts, ensuring no rust and safe water supply.

Dual Control System: Equipped with a pressure and flow switch control system, supporting stepless pressure regulation for pumps with a 0-100m head.

Multi motor: Multi motor superposition form is adopted, even if one of motors breaks down and the pump can keep working before repair.

Easy Maintenance: High pass rate of standard parts and high production efficiency of assembly parts allow for quick and easy maintenance with just a cross screwdriver.

Waterproof: It can be used directly in the bathroom, and the whole machine is waterproof.

Working conditions :

Liquid Temperature: 0-100°C.

Ambient Temperature: 4-55℃

Electric Pump Speed: 12,000 revolutions per minute (RPM)

Insulation: Class H

Protection: IP55

Duty Cycle: S1

Max Suction: +9.5m

Input Voltage: Single phase 100-140V, 50/60Hz, 160-240V, 50/60Hz

Application :

Ideal for well water lifting and water tower water filling.

Perfect for living water supply and garden irrigation.

Effective for pipeline pressure boosting and supporting equipment such as solar energy water supply systems and water heaters.

Designed for transferring clean water or non-corrosive liquids without solid particles and fibers.

Operation Interface :

Product Explosion Chart :

Components	Construction
Permanent magnet	Ferrite
Pump body	Engineering plastic
Shield cover	PPS
Base&upper cover	ABS plastics
Impeller	PPO
Motor shaft	99 Ceramics

Performance Chart :

Technical Data ：

Model	Voltage （V）	Power (W)	Power (HP)	Max.flow （m³/h）	Max.flow （L/min）	Max.head （m）	Max.suction （m）	Inlet&Outlet (inch)	G.W. (kg)	Size(L×W×H) (mm)
BG-125	DC30	105	0.1	2.2	37	20	3	1"×1"	2.96	256x145x185
BG-200	DC36	126	0.2	2.4	40	25	3	1"×1"	3	256x145x185
BG-300	DC40	148	0.2	3.0	50	28	5	1"×1"	3.25	270x170x202
BG-400	DC48	192	0.3	4.0	67	30	6	1"×1"	3.52	270x170x202
BG-600	DC40+40	296	0.4	4.0	67	40	9.5	1"×1"	5.2	290x200x285
BG-800	DC40+48	350	0.5	4.5	75	45	9.5	1"×1"	5.5	290x200x285
BG-1100	DC48+48	432	0.6	4.8	80	52	9.5	1"×1"	5.78	290x200x285

Note：In Model BG-125，"BG"means permanent magent adaptive variable frequency booster pump,"125"means power(W) of traditional single-phase motor.
