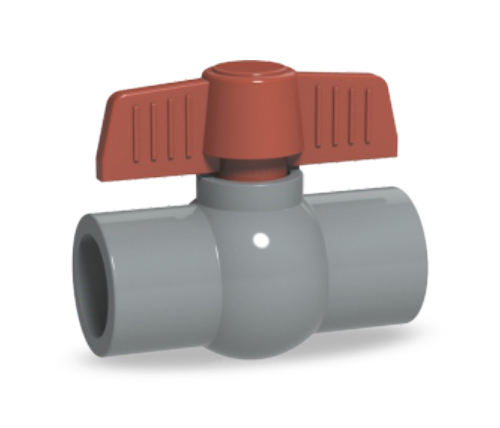

Size :15 to 50mm
CPVC SCH80
Compact Float Normal Temperature
Water Ball Valve for Civilian
Introducing the 15 to 50mm CPVC SCH80 Compact Float Normal Temperature Water Ball Valve, our latest innovation designed specifically for civilian applications within the realm of water distribution systems. This product boasts a compact structure, facilitating effortless installation and subsequent upkeep. Crafted from high-grade CPVC material, this valve exhibits exceptional resistance against corrosion, thereby rendering it ideal for regular temperature water operations.
The incorporation of a sophisticated float mechanism ensures uninterrupted operation and dependable functionality. Available in diameters spanning from 15mm to 50mm, this valve can be seamlessly integrated into diverse residential and commercial plumbing systems. We are confident that this product will meet your expectations and provide you with years of efficient service.
|
Type: |
BALL VALVES (V03) |
|
Place of Origin: |
Zhejiang, China |
|
Temperature of Media: |
Medium Temperature, Normal Temperature |
|
Media: |
Water |
|
Structure: |
BALL |
|
Body material: |
CPVC |
|
Color: |
Grey body red handle |
|
Function: |
Control Flow Water |
|
Customized support: |
OEM, ODM |
|
Brand Name: |
EDWIN or Customize |
|
Application: |
Buildings,homes,hospitals,hotels,food plant,ect |
|
Power: |
Manual |
|
Port Size: |
15mm to 50mm |
|
Handle: |
ABS |
|
Standard: |
ASTM |
|
Seal Material: |
TPE,TPR |
|
Packing: |
Carton box or as per customer's request |
|

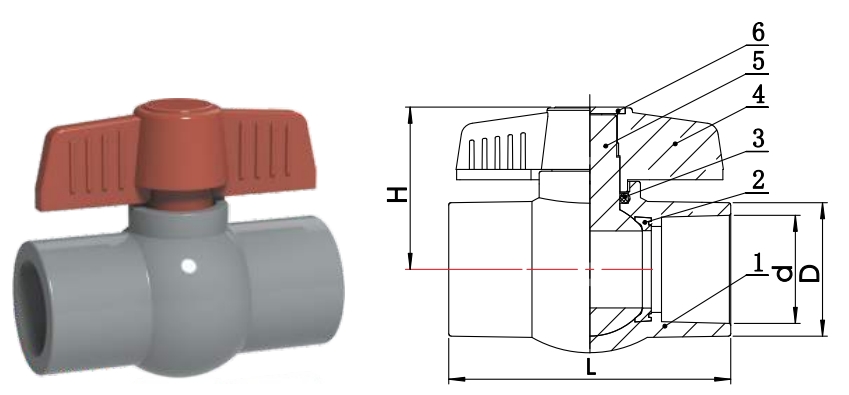

No. |
Part |
Material |
Qty |
|
1 |
Body |
CPVC |
1 |
|
2 |
Seat Seal |
TPE/TPR |
2 |
|
3 |
O-Ring |
NBR/EPDM |
1 |
|
4 |
Handle |
ABS |
1 |
|
5 |
Ball |
CPVC |
1 |
|
6 |
Cap |
ABS |
1 |
|
Size (mm) |
ANSI d (mm) |
L(mm) |
H(mm) |
D(mm) |
|
15 |
21.34 |
74 |
43.0 |
30.0 |
|
20 |
26.67 |
84 |
50.6 |
34.5 |
|
25 |
33.40 |
98.4 |
56.8 |
42.5 |
|
32 |
42.16 |
110 |
63.5 |
52.0 |
|
40 |
48.26 |
127 |
70.8 |
61.8 |
|
50 |
60.33 |
148 |
81.5 |
75.2 |
