Size : 20-200mm
Pressure : PN16
45 or 90 Degree

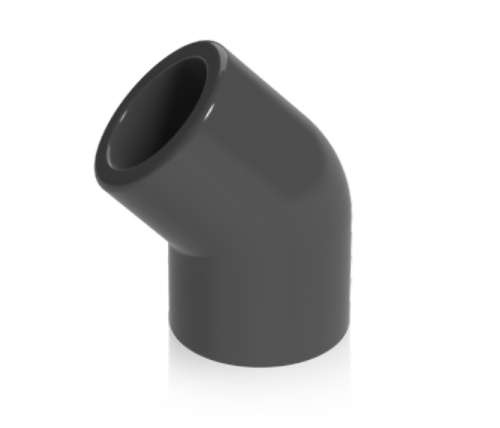

DIN UPVC Elbow
A PN16 20 to 200mm 45/90 Degree DIN UPVC Elbow is an essential component utilized to alter the trajectory of a UPVC conduit within a plumbing framework. This fitting is engineered to bear a pressure classification of PN16, signifying its capability to endure pressures up to 16 bars.
The DIN specification guarantees that this elbow fitting adheres to precise technical prerequisites for UPVC pipes and fittings. The size spectrum of 20 to 200mm signifies the diameter of the pipeline that this elbow fitting can accommodate, offering alternatives for diverse pipe dimensions within this range.
The 45/90 degree annotation denotes the angle at which the fitting modifies the direction of the pipe. A 45-degree elbow fitting alters the direction of the pipe by 45 degrees, whereas a 90-degree elbow fitting redirects the direction by 90 degrees. These fittings are frequently employed in plumbing frameworks to circumnavigate impediments or to form bends in the pipe configuration.
|
Type: |
Elbow ( EK02.EK04 ) |
|
Place of Origin: |
Zhejiang, China |
|
Temperature of Media: |
Medium Temperature, Normal Temperature |
|
Media: |
water |
|
Body material: |
upvc |
|
Color: |
Grey |
|
Function: |
Transport Water |
|
Customized support: |
OEM, ODM |
|
Brand Name: |
EDWIN or Customize |
|
Application: |
Buildings,water treatment plant,water farming,irrigation,industry |
|
Port Size: |
20-200mm |
|
Packing: |
Carton box or as per customer's request |
|
Matching criteria |
GB/T 10002.1,GB/T4219.1 and DIN 8063 |
|
Long service life |
More than 50 years |
|
Pressure class |
PN16 |
|
Water absorption |
＜0.01% |
|
Shrinkage |
＜0.4% |
|

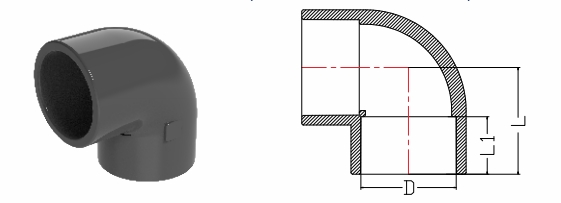

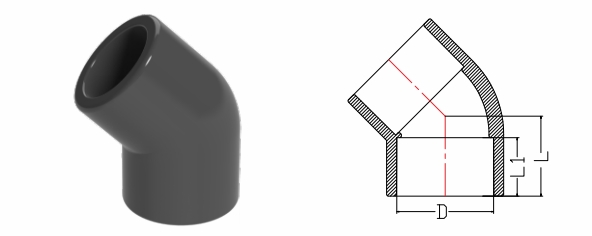

Size ( mm ) |
PN |
D ( mm ) |
L1 ( mm ) |
L ( mm ) |
|
20 |
16 |
20 |
16.5 |
44 |
|
25 |
16 |
25 |
19.0 |
52 |
|
32 |
16 |
32 |
22.5 |
62 |
|
40 |
16 |
40 |
26.5 |
74 |
|
50 |
16 |
50 |
31.5 |
89 |
|
63 |
16 |
63 |
38.0 |
109 |
|
75 |
16 |
75 |
44.0 |
127 |
|
90 |
16 |
90 |
51.5 |
149 |
|
110 |
16 |
110 |
61.5 |
179 |
|
125 |
16 |
125 |
70 |
136.8 |
|
140 |
16 |
140 |
76.5 |
225.6 |
|
460 |
16 |
460 |
86.5 |
256 |
|
200 |
16 |
200 |
106.5 |
317 |
