Liquid Temperature: 0–90°C
Ambient Temperature: 40°C
Insulation: Class F
Protection Level: IPX4
Max Pressure: 8 bar
Max Suction: 8 m
With advanced self-priming capability, durable construction, and smart energy management, the XLJET Series ensures continuous, efficient, and safe water supply for residential, commercial, and industrial applications.
IE5 High-Efficiency Permanent Magnet Motor: Adopts an IE5 permanent magnet motor with up to 96% efficiency, automatically adjusting power output based on load, delivering over 30% energy savings compared to asynchronous motors.
100% Copper Wire: Wound with pure copper wire to ensure stable electrical performance, reduce heat generation, and extend service life.
Energy Saving & Versatile: Supports wide voltage and dual-frequency operation, with simple operation and multiple built-in safety protections.
One-Click Pressure Regulation: Features an intuitive one-click pressure adjustment design, with IP54 protection that enables safe outdoor use.
Self-start function: when the pumpis not used for a long time, it will automatically stop after a few seconds of self-start every l2 hours, effectively preventing the pump from being stuck due to long-term non-use
Working conditions :
Liquid Temperature: 0-90°C.
Ambient Temperature: 40℃
Insulation: Class F
Protection: IPX4
Max Suction: +8m
Max Pressure: 8bar
Application :
Applicable to low viscosity, neutral, non-explosive liquids containing no solid particles or fibers (oil or oil-based liquids require a special pump type).
Circulation of air conditioning systems.
Cooling systems.
Water treatment (water purification).
Industrial cleaning systems.
Liquid transportation, circulation, and lifting.
Food, beverage, agricultural, and other ingredient systems

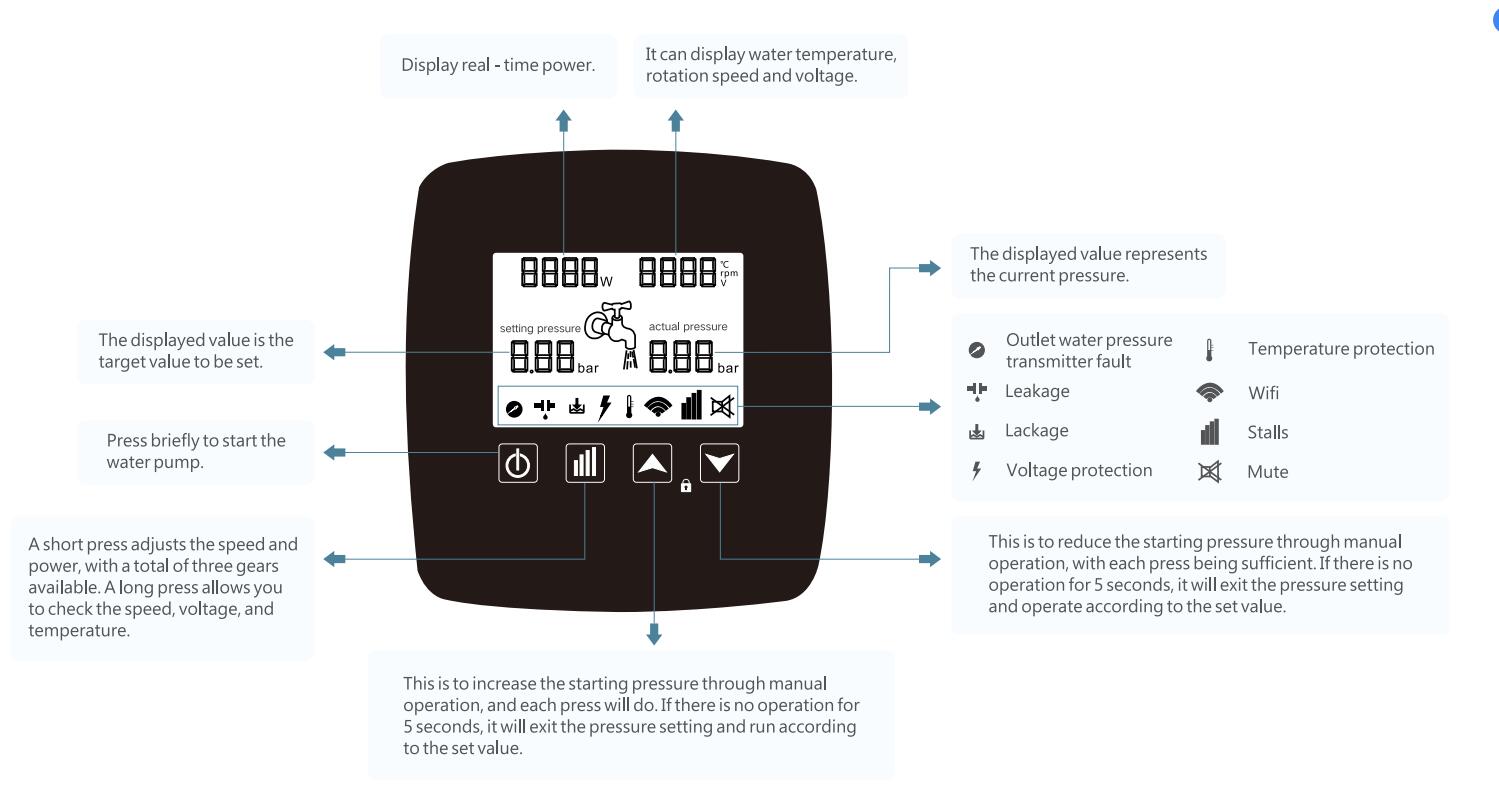

Operation Interface :
| Component | Material |
| Pump body | Stainless steel |
| Motor housing | Aluminum |
| Impeller | PPO |
| Pump support | Aluminum |
| Mechanical seal | Silicon carbide/graphite |
| Model | Frequency（Hz） | Power（W） | Max.flow（L/min） | Max.head（m） | Max.suction（m） | Inlet&Outlet（inch） | N.W.（kg） | Size(L×W×H)（mm） |
| XLJET-50 | 50/60 | 370 | 50 | 28 | 8 | 1" x 1" | 7.3 | 330*198.5*245.5 |
| XLJET-80 | 50/60 | 550 | 50 | 38 | 8 | 1" x 1" | 7.3 | 330*198.5*245.5 |
| XLJET-100 | 50/60 | 750 | 60 | 43 | 8 | 1" x 1" | 9.4 | 364*200*267.5 |
| XLJET-150 | 50/60 | 1100 | 70 | 46 | 8 | 1" x 1" | 9.4 | 364*200*267.5 |
