Size : 1/2 to 6 Inch
Specification : UPVC SCH80 Grey Socket
High Tensile Strength
Coupling for Water Farming

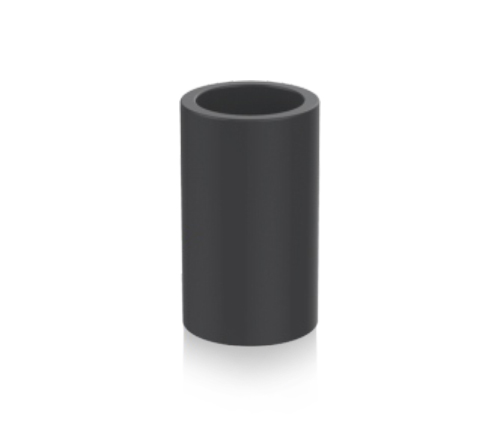

This high tensile strength UPVC SCH80 grey socket connector is designed for use in the water industry. It is available in sizes from 1/2 inch to 6 inches, suitable for a variety of pipe systems. The connector is made of high-quality UPVC material, which has excellent hardness and corrosion resistance and is not easy to age. It has an easy-to-install socket-type connection and high tensile strength for increased reliability. This connector is ideal for connecting pipes in water supply systems and ensures a secure, leak-free connection.
Specification :
|
Type: |
UPVC SCH80 Coupling ( S01 ) |
|
Place of Origin: |
Zhejiang, China |
|
Temperature of Media: |
Medium Temperature, Normal Temperature |
|
Media: |
water |
|
Body material: |
UPVC |
|
Color: |
Grey |
|
Function: |
Transport Water |
|
Customized support: |
OEM, ODM |
|
Brand Name: |
EDWIN or Customize |
|
Application: |
Buildings,water treatment plant,water farming,irrigation,industry |
|
Power: |
Manual |
|
Port Size: |
1/2” to 6” |
|
Packing: |
Carton box or as per customer's request |
|
Matching criteria |
ASTM D2467 |
|
Long service life |
More than 50 years |
|
Connection method |
Socket x socket |
|

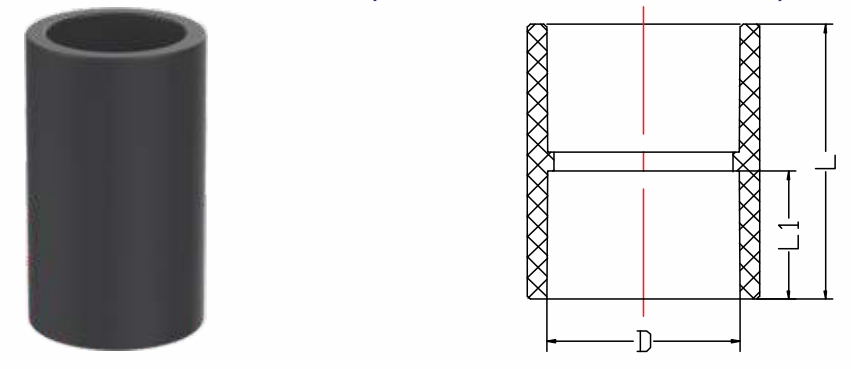

Size (inch) |
D(mm) |
L1(mm) |
L(mm) |
|
1/2” |
21.34 |
24 |
50.0 |
|
3/4” |
26.67 |
27 |
56.5 |
|
1” |
33.4 |
30 |
62.5 |
|
1-1/4” |
42.16 |
33 |
68.5 |
|
1-1/2” |
48.26 |
36 |
74.5 |
|
2” |
60.32 |
39 |
80.5 |
|
2-1/2” |
73.02 |
46 |
97.0 |
|
3” |
88.9 |
49 |
103.0 |
|
4” |
114.3 |
59 |
123.0 |
|
5” |
141.0 |
67 |
139.3 |
|
6” |
168.0 |
76.5 |
159.6 |
