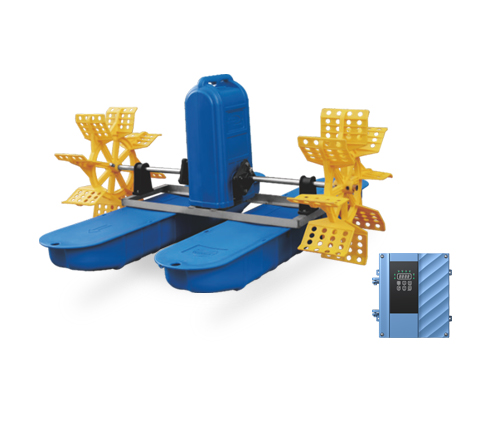

ADSWA Series AC/DC Solar Paddle Wheel Aerator
View All Products
en
The ADSWA series solar paddle wheel aerator utilizes brushless AC and DC motors, providing all-weather power supply.
The high-speed rotation of the paddle wheel creates a strong water flow, enhancing water circulation and oxygen diffusion efficiency, making it particularly suitable for large aquaculture ponds and high-density aquaculture farms.
The AC/DC switching function ensures continuous operation even in rainy days, eliminating the need for additional human intervention.
The brushless motor, combined with corrosion-resistant materials, ensures long-term stable operation and low maintenance costs.
A three-year warranty provides long-term reliability, making it an ideal choice for large-scale aquaculture and ecological water management.
| ITEM | Voltage | Best input voltage(DC) | Power | Oxygenation rate(kg/h) | Covering Area(㎡) | Impeller quantity | Solar panel - Open circuit voltage(VOC) |
Solar panel - Power |
| ADSWA6-300-2200 | AC220/DC300V | 300V-400V | 2200W | >2.0 | 2665-8000 | 6 | <450V | ≥1.3*PUMP POWER |
