Liquid Temperature: 80°C
Ambient Temperature: 55°C
Insulation Class: Class F
Electric Pump Speed: 4800 revolutions per minute (RPM)
Protection Grade: IP54
Input Voltage: Single phase 180-260V, 50/60Hz
The XLA Series offers quiet, efficient, and intelligent pumping for residential, commercial, and light industrial applications, combining durability, hygiene, and ease of use.
Key Features ：
IE5 High-Efficiency Permanent Magnet Motor: Adopts an IE5 permanent magnet motor with up to 96% efficiency, automatically adjusting power output based on load, delivering over 30% energy savings compared to asynchronous motors.
100% Copper Wire: Wound with pure copper wire to ensure stable electrical performance, reduce heat generation, and extend service life.
Energy-Saving & Versatile: Supports wide voltage (180-260V) and dual-frequency (50/60Hz) operation, with simple operation and multiple built-in safety protections.
One-Click Pressure Regulation: Features an intuitive one-click pressure adjustment design, with an IP54 protection rating that enables safe outdoor use.
Anti-Water Hammer & Non-Return Design: Integrates a non-return water structure and high-quality sensors, effectively eliminating water hammer, ideal for water tower, hot water, and whole-house pressure boost systems.
Hygienic & Durable: All fluid components are made of stainless steel, ensuring safe, hygienic, and corrosion-resistant liquid delivery.
Working conditions :
Liquid Temperature: 80°C
Ambient Temperature: 55°C
Insulation Class: Class F
Electric Pump Speed: 4800 revolutions per minute (RPM)
Protection Grade: IP54
Input Voltage: Single phase 180-260V, 50/60Hz
Application :
Ideal for well water lifting and water tower water filling.
Perfect for living water supply and garden irrigation.
Effective for pipeline pressure boosting and supporting equipment such as solar energy water supply systems and water heaters.
Designed for transferring clean water or non-corrosive liquids without solid particles and fibers.

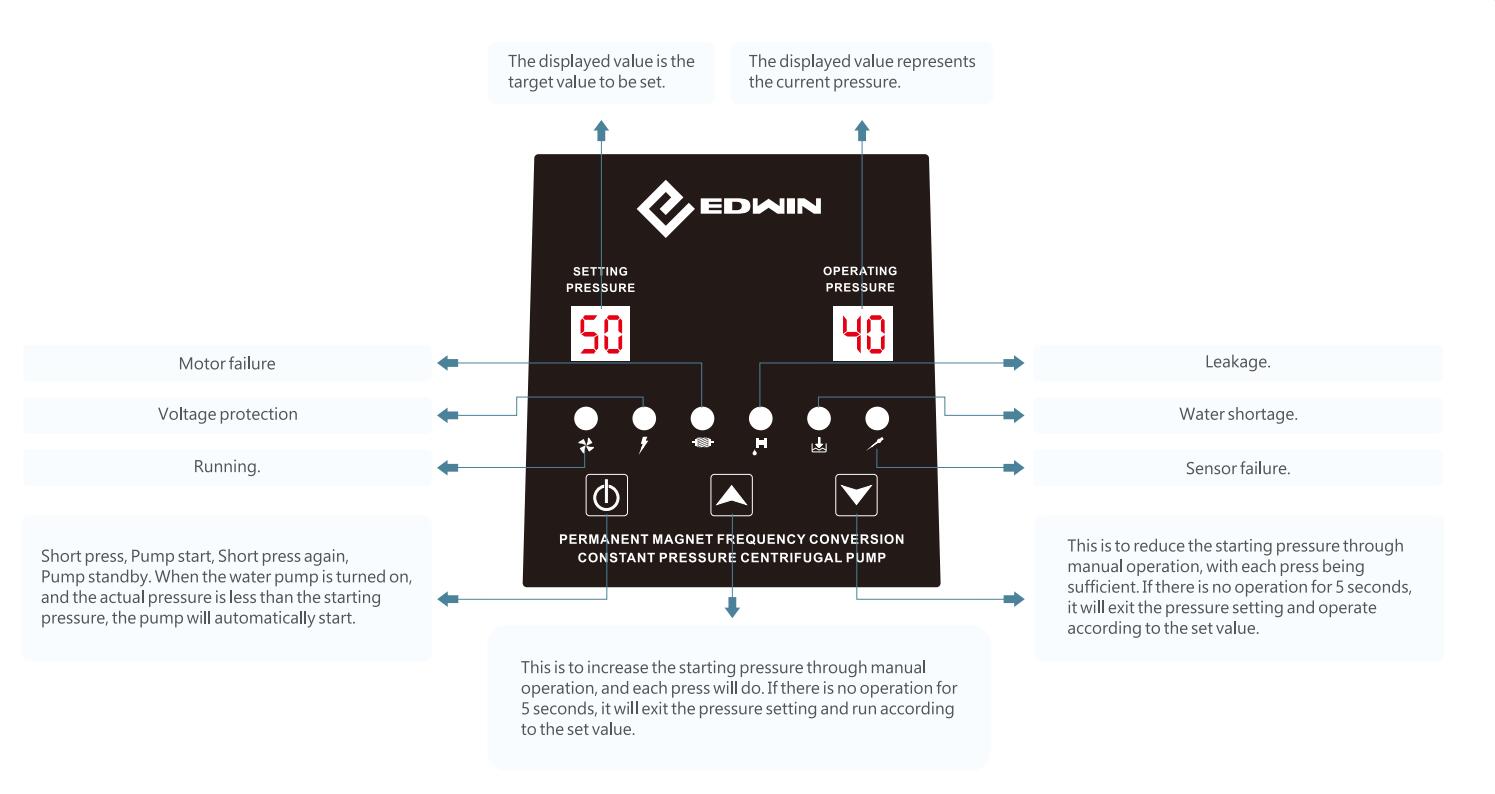

Operation Interface :
| Component | Material |
| Pump body | Engineering plastic |
| Base&upper cover | Engineering plastic |
| Impeller | Engineering plastic |
| Shaft seal | Stainless steel |
| Shaft | Silicon carbide/graphite |
| Model | Voltage（V） | Frequency（Hz） | Power（W） | Power（HP） | Max.flow（L/min） | Max.head（m） | Inlet&Outlet（inch） | N.W.（kg） | G.W.（kg） | Size(L×W×H)（mm） |
| XLA2-30 | 220V±20% | 50/60 | 550 | 0.7 | 75 | 42 | 1" x 1" | 6 | 8 | 283*172*219 |
| XLA3-30 | 220V±20% | 50/60 | 750 | 1 | 91.6 | 45 | 1" x 1" | 6 | 8 | 283*172*219 |
