Description :

The XLA403 Intelligent Permanent Magnet Booster Pump is a high-efficiency, multi-purpose pump designed for the circulation, transportation, and boosting of low-viscosity, neutral, non-explosive liquids free of solid particles and fibers. It delivers stable performance across residential, commercial, and industrial scenarios, with a focus on energy saving and reliable operation.

Key features :

IE5 High-Efficiency Permanent Magnet Motor: Adopts an IE5 permanent magnet motor with up to 96% efficiency, automatically adjusting power output based on load, delivering over 30% energy savings compared to asynchronous motors.

100% Copper Wire: Wound with pure copper wire to ensure stable electrical performance, reduce heat generation, and extend service life.

Energy Saving & Versatile: Supports wide voltage and dual-frequency operation, with simple operation and multiple built-in safety protections.

One-Click Pressure Regulation: Features an intuitive one-click pressure adjustment design, with IP54 protection that enables safe outdoor use.

Anti-Water Hammer Design: Integrates a non-return water structure and high-quality sensors, effectively eliminating water hammer, ideal for water tower, hot water, and whole-house pressure boost systems.

Self-Start Protection: Includes a self-start function that automatically activates every 12 hours when the pump is unused for long periods, preventing the pump from seizing due to long-term inactivity.

Working conditions :

Liquid Quality: Clean water, the volume of solid particles lower than 0.1%, the size less than 0.2 mm

Liquid Temperature: 0°C < water temperature ≤ 100°C

Ambient Temperature: 0°C ~ 40°C

PH Level: 4 ~ 10

Relative Humidity: Max 85% (RH)

Applications :

Products applicable to low viscosity, neutral, non-explosive, containing no solid particles or fibers liquid can't be transported material has chemical corrosion to pump material.(Oil or oil-based liquid can be pumped with a special type of pump)
The circulation of air conditioning system
The cooling system
Water treatment (Purification of water)
Industrial cleaning system
The liquid transportation, circulation and ascent
Hot and cold water
Food, beverages, agricultural and other ingredients system

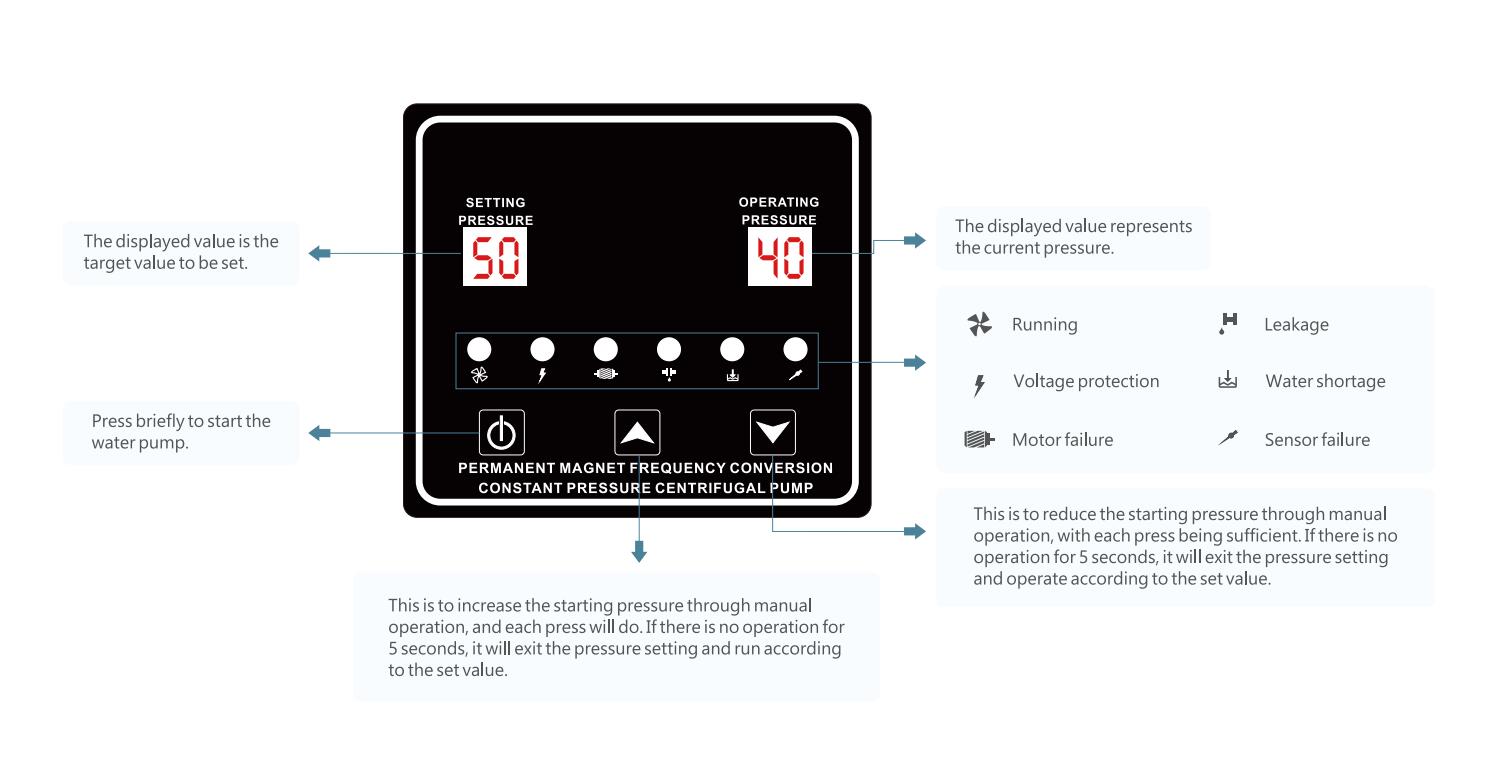

Operation Interface :

Component	Material
Pump body	Engineering plastic
Base&upper cover	Engineering plastic
Impeller	Engineering plastic
Shaft seal	Stainless steel
Shaft	Silicon carbide/graphite

Model	Frequency（Hz）	Power（W）	Max.flow（L/min）	Max.head（m）	Max.suction（m）	Inlet&Outlet（inch）	Max.rpm（r/min）	N.W.（kg）	G.W.（kg）	Size(L×W×H)（mm）
XLA403	50/60	100-400	66	25	5	1" x 1"	4800	4.5	5.5	301146228
