How a Self-Priming Shallow Well Pump Delivers Reliable Water Supply in Demanding Applications

A dependable water supply system begins with selecting a pump that matches the source, required pressure, operating conditions, and installation environment. For homes, gardens, small agricultural sites, workshops, and light commercial facilities, a shallow well pump must do more than move water. It should start easily, maintain stable performance, resist corrosion, tolerate occasional air in the suction line, and operate safely during repeated daily cycles.

The JET-S Series No Rust AISI304 Shaft Shallow Well Water Pump is designed for these requirements. As a self-priming JET pump, it combines a compact centrifugal pumping structure with a jet system that supports suction from shallow wells, tanks, and similar water sources. Its construction includes an AISI 304 stainless steel shaft, brass impeller, cast iron hydraulic body, copper motor winding, C&U bearings, and a built-in thermal protector for single-phase operation.

The series covers three power options from 0.6 kW to 1.1 kW, equivalent to 0.8 HP to 1.5 HP. Depending on the model, maximum flow reaches 45 or 50 liters per minute, maximum head ranges from 40 to 55 meters, and maximum suction height is 8 meters. This range allows users to select a pump according to the pressure and flow requirements of a particular installation rather than relying on one oversized or undersized configuration.

Edwin Pump, manufactured by Taizhou Edwin Electric Co., Ltd., develops and produces water pumps for domestic, agricultural, municipal, industrial, and commercial applications. Its integrated approach includes independent research and development, mass production, export services, and related procurement support. The JET-S Series reflects this combination of practical pump design, durable materials, and application-focused engineering.

Understanding the Role of a Shallow Well Water Pump

A shallow well pump is used when water is located near the surface and can be lifted through a suction pipe. Typical sources include shallow wells, storage tanks, rainwater collection systems, underground reservoirs, and open water sources that are suitable for clean-water pumping. The pump is installed above the water level, while the suction pipe extends down to the water source.

The physical limit for suction is important. Under ideal atmospheric conditions, a pump cannot theoretically lift water beyond approximately 10.3 meters at sea level. In actual installations, pipe friction, fittings, air leakage, water temperature, altitude, and imperfect conditions reduce the practical limit. For this reason, the JET-S Series specifies a maximum suction height of 8 meters, providing a realistic operating range for shallow well applications.

Unlike a basic centrifugal pump, a self-priming JET pump is designed to evacuate air from the suction line and establish water movement after the pump casing has been filled correctly. This makes it more suitable for installations where the suction pipe may contain air during startup or where the water level and operating conditions vary. Proper installation remains essential, but the self-priming structure can make routine operation easier than using a conventional non-self-priming pump.

The pump is intended for clean water and liquids with physical and chemical properties similar to water. It is not designed for abrasive slurry, heavily contaminated drainage, seawater, flammable liquids, or liquids containing large solid particles unless a specific engineered version has been approved. Correct fluid selection protects the impeller, mechanical seal, casing, and motor while improving service life.

Core Design Features of the JET-S Series

AISI 304 Stainless Steel Shaft

The shaft is one of the most important internal components in a pump. It transfers motor torque to the impeller and operates close to the pumped liquid and mechanical seal. If a shaft corrodes, it can affect dimensional accuracy, seal performance, rotor balance, and long-term reliability.

The JET-S Series uses an AISI 304 stainless steel shaft in the water-contact area. This material provides significantly better corrosion resistance than ordinary carbon steel in common clean-water environments. The no-rust shaft design helps reduce the risk of surface deterioration and supports reliable operation where the pump may be exposed to moisture, condensation, or intermittent water contact.

Compared with low-cost pumps that use less corrosion-resistant shaft materials, the AISI 304 shaft gives the JET-S Series an important durability advantage. It is particularly valuable in domestic water systems, irrigation installations, and storage-tank applications where the pump may experience repeated starting and stopping over an extended service period.

Brass Impeller

The impeller is responsible for converting motor energy into hydraulic energy. It must withstand rotational stress, water contact, and repeated changes in operating load. The JET-S Series uses a brass impeller, selected for its strength, dimensional stability, and corrosion resistance in clean-water service.

Brass also supports smooth operation after periods of inactivity. The product design includes rust-free copper inserts that help promote a smooth restart when the pump has been stored or has not operated for a long time. This is useful for seasonal irrigation, vacation properties, emergency water systems, and equipment that operates according to demand rather than continuously.

In comparison with ordinary stamped steel or lower-grade components, a brass impeller can offer better resistance to corrosion and deformation in many water applications. It also contributes to stable hydraulic performance when the pump is correctly selected and operated within its recommended range.

Cast Iron Pump Body and Support

The pump body and support are made from HT200 cast iron and receive special anti-rust treatment. Cast iron provides structural rigidity, helping the hydraulic casing maintain its shape under pressure and reducing vibration when the pump is properly installed on a firm base.

The anti-rust treatment is an important part of the product’s protection strategy. Although the pump is designed for clean water, the external surface may be exposed to humid pump rooms, outdoor installations, condensation, or accidental splashing. Surface treatment helps preserve the casing and support during normal service.

Cast iron also contributes to a robust industrial appearance and stable mounting platform. Compared with very light housings used in some economy products, the rigid casing and support can help reduce movement during startup and operation. The pump should still be secured with suitable fasteners and installed on a level foundation.

Self-Priming Jet Structure

The JET-S Series uses a nozzle, Venturi, and diffuser assembly made from PPO. Together with the impeller and pump casing, these components form the jet mechanism that supports self-priming operation. The Venturi effect helps create the pressure conditions needed to draw water through the suction line and remove air from the system.

Self-priming capability is especially useful where the pump is installed above the water source. During initial commissioning, the pump casing must be filled with water according to the installation instructions. Once correctly prepared, the pump can handle normal air presence in the suction line more effectively than a standard centrifugal pump.

This feature improves convenience for household water supply, garden irrigation, water transfer from tanks, and shallow well lifting. It can also reduce the frequency of manual intervention after routine stops, provided that the suction line, foot valve, check valve, and pipe connections remain airtight.

Copper Motor Winding

The motor uses durable copper wiring. Copper provides good electrical conductivity, supports efficient energy transfer, and helps the motor produce the required torque during startup and operation. A reliable winding system is essential because the pump may operate under changing hydraulic loads and frequent cycling.

Copper winding is an important differentiator from low-cost motors that may use inferior conductive materials or inconsistent winding quality. Better conductivity can contribute to stable motor performance, lower electrical losses, and improved thermal behavior when the pump is operated within its rated conditions.

Electrical performance also depends on correct voltage, wiring size, grounding, protection, and installation. The copper winding does not remove the need for appropriate electrical design. Instead, it provides a strong internal foundation for reliable operation when the complete system is correctly configured.

C&U Bearings

The JET-S Series includes high-efficiency C&U bearings. Bearings support the motor rotor and allow smooth rotation at operating speed. Their condition influences noise, vibration, efficiency, shaft alignment, and mechanical seal life.

Quality bearings help the pump maintain stable rotation and reduce unnecessary friction. This is particularly important in a compact pump where motor and hydraulic components are closely integrated. Reliable bearing performance also supports smoother startup and helps maintain consistent operation during repeated use.

Built-In Thermal Protector

The single-phase motor includes a built-in thermal protector. This device responds to excessive temperature and helps protect the motor from overheating caused by overload, restricted ventilation, abnormal operating conditions, or repeated starting.

Thermal protection is a practical safety feature for domestic and small commercial users who may not have a complex motor-control panel. It provides an additional layer of protection inside the motor. However, it should not be considered a replacement for correct circuit protection, grounding, suitable cable selection, and professional electrical installation.

Performance Range and Model Selection

The JET-S Series includes three models. Their performance ratings are summarized below.

Maximum flow and maximum head are endpoint specifications rather than values that occur simultaneously in normal operation. As pressure increases, available flow generally decreases. The correct model should therefore be chosen using the complete system duty point, including required flow, vertical elevation, pipe length, pipe diameter, fittings, outlet pressure, and any pressure-control equipment.

The JET-550S is suitable for lighter domestic transfer and garden applications where moderate flow and pressure are required. The JET-750S provides an intermediate choice for household distribution, irrigation, and tank filling. The JET-1100S offers the highest rated head in the range and is appropriate when the system requires greater pressure or a higher vertical lift.

Users should avoid selecting a model solely by motor power. A larger motor is not automatically better if the water source, pipework, or end-use equipment cannot accept the additional pressure. An oversized pump may cycle unnecessarily, consume more energy, or require pressure regulation. Correct sizing provides better efficiency and longer service life.

Advantages Over Basic Economy Pump Designs

Improved Corrosion Resistance

One of the clearest advantages of the JET-S Series is the combination of an AISI 304 shaft, brass impeller, rust-free copper inserts, and anti-rust-treated cast iron components. Many basic pumps are designed primarily around low initial cost, which can lead to compromises in shaft and hydraulic materials. The JET-S construction focuses more strongly on durability in normal water environments.

Corrosion resistance is not only a cosmetic concern. Rust can damage seal surfaces, increase friction, contaminate water, weaken components, and make future maintenance more difficult. By using corrosion-resistant materials in critical areas, the pump is better prepared for humid environments and intermittent operation.

Better Support for Intermittent Operation

Some water systems operate only at certain times of day or during particular seasons. A garden irrigation pump may remain inactive for weeks. A household booster pump may start whenever a tap opens. A tank-transfer pump may operate only when the storage level falls below a specific point.

The JET-S Series is suited to these operating patterns because its self-priming design supports convenient restarting, while the brass impeller and rust-free inserts help reduce issues after inactivity. The built-in thermal protector adds a further layer of protection during repeated demand cycles.

Broad Application Flexibility

The series can serve multiple clean-water applications without requiring a highly complex system design. It can distribute water to domestic consumption points, supply small pressure sets, irrigate gardens and allotments, lift water from shallow wells, transfer water from tanks, and feed automatic irrigation systems.

This flexibility makes the pump attractive for distributors, installers, agricultural suppliers, and project buyers who need a reliable product for several common applications. Instead of carrying a separate pump type for every small installation, a suitable JET-S model can cover a broad range of shallow-water duties.

Practical Protection for Single-Phase Users

Single-phase power is common in homes, small farms, workshops, and light commercial buildings. The built-in thermal protector is therefore especially relevant to the target market. It helps protect the motor during abnormal temperature rise, while the Class F insulation rating and IP44 protection rating support dependable operation in appropriate indoor or sheltered environments.

IP44 protection means the motor is protected against solid objects above a certain size and water splashing from different directions. It does not mean the motor can be submerged or exposed to uncontrolled heavy rain. Proper placement under a protective cover remains necessary for outdoor installations.

Recommended Applications

Domestic Water Supply

The pump can be used to distribute clean water within homes, small residential buildings, rural properties, and auxiliary living spaces. It may draw water from a tank or shallow well and supply faucets, small pressure systems, toilets, washing areas, and other approved consumption-related uses.

For domestic drinking-water service, the complete installation must meet local regulations regarding materials, hygiene, backflow prevention, and water quality. The pump itself cannot correct contaminated source water. A suitable filtration and treatment system may be required if the source does not meet applicable standards.

Garden and Allotment Irrigation

Garden irrigation often requires moderate flow and reliable pressure rather than the extreme output of a large agricultural pump. The JET-S Series can supply sprinklers, hose systems, drip irrigation networks, and small automatic irrigation controls when the hydraulic requirements are within the selected model’s capacity.

The installer should consider the number of sprinklers operating simultaneously, the elevation of the garden, the length of the hose or pipe, and the pressure required at the emitters. A filter should be installed when the water contains particles that could block nozzles or damage hydraulic components.

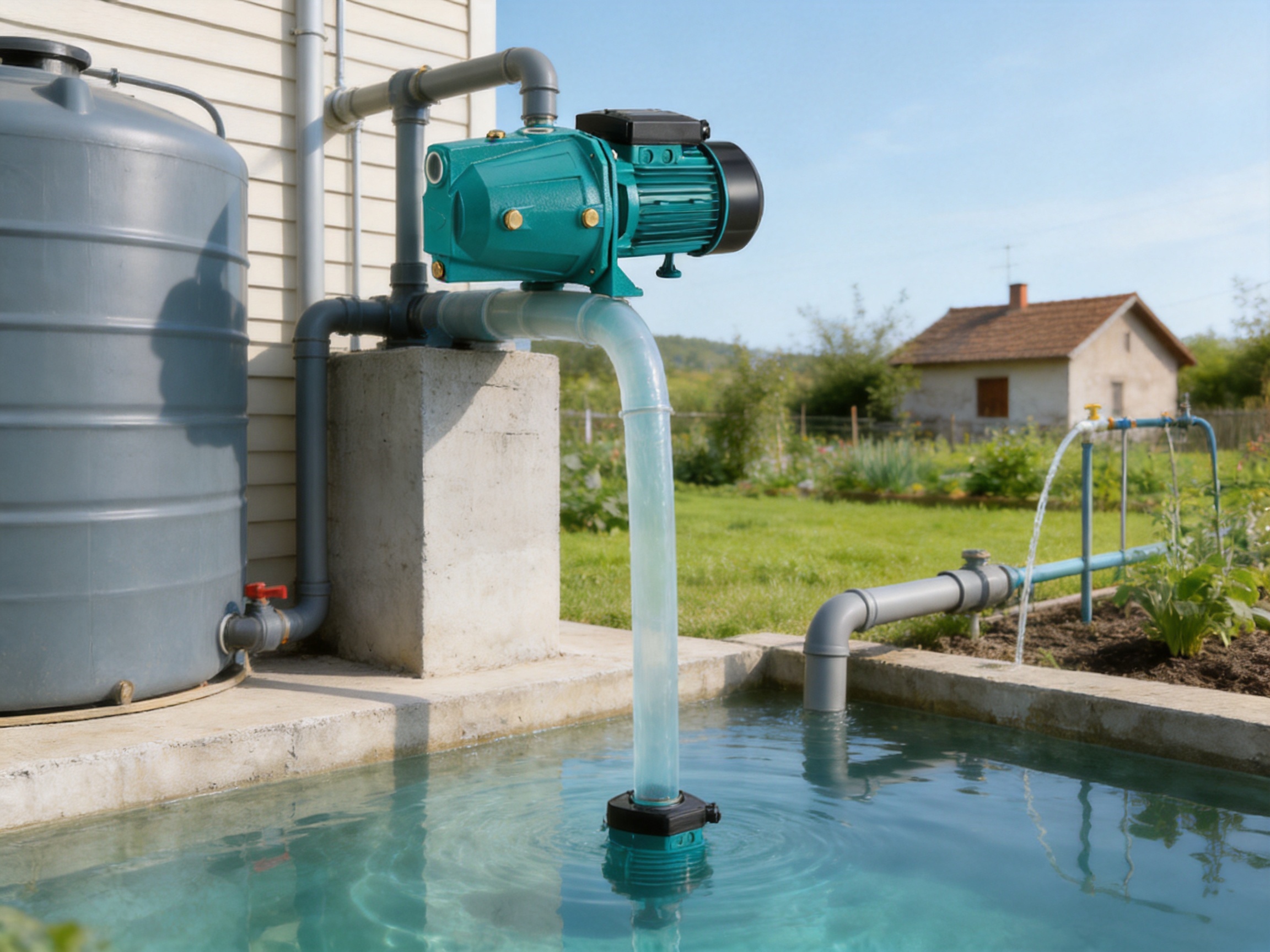

Shallow Well Lifting

The pump is designed for shallow well water lifting up to a maximum suction height of 8 meters under suitable conditions. The suction pipe should be correctly sized, airtight, and installed with minimal unnecessary bends. A foot valve or suitable check valve can help maintain water in the suction line when the pump stops.

Water level variation must be considered. The maximum suction height should be measured from the pump inlet to the lowest expected water level, not merely from the pump to the normal water level. If the level falls below the practical limit, the pump may lose prime or fail to deliver the expected flow.

Water Tank Transfer

Storage tanks are frequently used in residential, agricultural, and commercial properties. The JET-S Series can transfer water between tanks or lift water from a lower storage point to a higher tank, provided that the total head and flow requirements fall within the selected model’s range.

Tank installations should include appropriate level controls, overflow protection, isolation valves, and dry-run safeguards where necessary. The pump should never be allowed to operate without water for extended periods, because dry running can damage the mechanical seal and other hydraulic components.

Small Pressure Sets

The pump can be incorporated into a small pressure set for domestic or light commercial water distribution. A pressure tank, pressure switch, electronic controller, or other control device may be used according to the application. The control arrangement should prevent excessive cycling and should match the pump’s electrical and hydraulic ratings.

For multi-story buildings or systems requiring highly stable pressure, the installer should calculate the pressure demand carefully. The JET-1100S offers the highest maximum head in the series, but the final choice should be based on a system curve rather than the maximum headline value alone.

Operating Conditions and Technical Protection

The maximum liquid temperature is specified as +60°C, while the maximum ambient temperature is +40°C. These limits provide useful flexibility for warm-water and warm-environment applications, but they must not be exceeded. Higher liquid temperatures can affect the mechanical seal, lubrication, material strength, and motor cooling.

The pump should be used with clean water or a liquid whose properties are close to those of water. Liquids with high viscosity may overload the motor and reduce flow. Abrasive particles can wear the impeller, Venturi, diffuser, and mechanical seal. Chemical compatibility should be confirmed before pumping any liquid other than ordinary clean water.

Class F insulation indicates a motor insulation system designed for elevated thermal conditions within the relevant electrical standard framework. The IP44 rating supports use in suitable protected locations. Together, these specifications provide a practical level of motor protection, but they do not eliminate the importance of ventilation, weather protection, grounding, and correct electrical protection.

The thermal protector is especially useful when the pump experiences an overload or temporary overheating condition. Once the motor cools, some protectors may reset automatically, depending on the design. Repeated thermal trips should never be ignored. They may indicate a blocked pipe, closed valve, low voltage, incorrect wiring, inadequate ventilation, bearing problems, or a pump that is operating outside its intended duty.

JET-S Series No Rust AISI304 Shaft Shallow Well Water Pump

Manufacturing Strengths Behind the Product

A reliable pump is the result of more than a single material or feature. It depends on coordinated design, component production, assembly control, electrical testing, hydraulic evaluation, and supply-chain management. Taizhou Edwin Electric Co., Ltd. operates as an integrated manufacturing enterprise with independent research and development, mass production, and global export capabilities.

This integrated structure supports a consistent product-development process. Engineers can evaluate customer requirements, select suitable hydraulic configurations, develop pump components, organize production, and coordinate delivery through one manufacturing organization. Such integration can shorten communication paths and make it easier to adapt products for different markets and applications.

Mass production also provides advantages when it is supported by controlled processes. Repeated production helps standardize dimensions, assembly procedures, winding operations, bearing installation, seal fitting, and final inspection. Consistency is particularly important for self-priming pumps, because small air leaks or incorrect alignment can affect priming performance and operating stability.

The company’s product portfolio includes deep well pumps, submersible pumps, domestic booster pumps, circulation pumps, solar water pumps, intelligent booster pumps, and other water-treatment peripheral products. This broad product knowledge supports practical understanding of different water systems and allows the manufacturer to develop solutions for domestic, agricultural, commercial, municipal, construction, mining, HVAC, and new-energy projects.

Manufacturing strength should also be evaluated through product architecture. The JET-S Series uses a combination of metal and polymer components selected according to their function. HT200 cast iron provides structural support, brass provides a durable impeller, PPO is used in the nozzle, Venturi, and diffuser, aluminum forms the motor case, PP is used for the fan, and carbon/ceramic materials are used for the mechanical seal. This functional material selection balances strength, corrosion resistance, weight, manufacturability, and cost.

The use of dedicated components such as the Venturi and diffuser demonstrates that the pump is engineered as a complete self-priming system rather than as a basic centrifugal pump with a marketing label. Each component contributes to hydraulic circulation and air removal. Proper dimensional control during production is essential to preserve the intended relationship between these parts.

For international buyers, manufacturing capability is also connected to order management and export support. Edwin Pump established affiliated import and export organizations to support procurement planning, order tracking, cross-border delivery, and foreign-trade services. This one-stop approach can be valuable for distributors and project buyers managing multiple pump categories or requiring coordinated international shipment.

Installation Guidance for Reliable Performance

The pump should be installed on a solid, level base that can support its weight and absorb normal vibration. The suction pipe should be as short and direct as practical, with a diameter appropriate to the pump inlet. Although the inlet and outlet are specified as 1 inch by 1 inch, reducing the suction pipe diameter or using excessive fittings can increase friction losses and reduce practical performance.

All suction-side connections must be airtight. A suction leak may allow air to enter even when no water is visibly leaking out. This is one of the most common causes of poor priming and unstable flow. Thread sealant or suitable sealing tape should be applied correctly, and pipe joints should be tightened without damaging the fittings.

A foot valve can help keep the suction pipe filled when the pump is stopped. The valve should be suitable for clean-water service and positioned so that it remains submerged under the lowest expected water level. A strainer may be used to prevent debris from entering the pump, but it must be maintained so that it does not become blocked and restrict the inlet.

Before starting the pump for the first time, the pump chamber should be filled with clean water as required by the installation instructions. The suction line should also be checked for proper filling and valve position. Operating a self-priming pump without the necessary initial water charge can damage the mechanical seal and prevent successful priming.

The discharge line should include an isolation valve where appropriate. This allows the installer to perform maintenance and control commissioning. However, the pump must not be operated for a prolonged period against a fully closed discharge valve, because the water inside the casing can heat rapidly.

Electrical connections should be completed by a qualified professional. The power supply must match the motor rating, and the system should include suitable overcurrent protection, grounding, and disconnecting equipment. Cable size should be selected according to motor current, cable length, installation method, ambient temperature, and local electrical requirements.

Maintenance Practices

Routine maintenance begins with visual inspection. Users should check for water leakage, unusual vibration, abnormal noise, damaged cables, loose fasteners, blocked ventilation openings, and signs of corrosion. A small problem identified early can often be corrected before it causes mechanical seal damage or motor failure.

The suction strainer and foot valve should be inspected periodically. A blocked strainer reduces inlet pressure and may cause cavitation, low flow, or loss of prime. A foot valve that does not close correctly may allow the suction line to empty after shutdown, forcing the pump to be reprimed.

Mechanical seals are wear components. Leakage around the shaft area may indicate seal wear, shaft damage, misalignment, or dry-running damage. Continued operation with significant leakage can damage bearings, electrical parts, or the pump support. Seal replacement should be performed using compatible parts and correct assembly procedures.

The motor should be kept dry and adequately ventilated. Dust, mud, vegetation, and stored materials should not block the cooling path. Outdoor installations should include a protective enclosure that prevents direct exposure to rain while allowing sufficient ventilation to avoid heat accumulation.

Seasonal installations require additional attention. If freezing temperatures are expected, water should be drained from the pump and exposed pipework according to the system design. If the pump will remain unused for a long time, it should be stored in a dry location and inspected before restarting. The brass impeller and rust-free inserts support restart reliability, but they do not eliminate the need for proper storage and commissioning.

Energy, Noise, and System Efficiency

Pump efficiency is influenced by both the pump and the installation. A correctly sized JET-S model can deliver the required water service without unnecessary motor capacity. Oversized pumps may operate far from their most suitable duty point, while undersized pumps may run continuously without reaching the required pressure.

Pipe diameter has a direct effect on friction loss. A properly sized discharge pipe can reduce energy loss and improve usable flow. Excessive elbows, narrow hoses, clogged filters, partially closed valves, and long undersized pipelines can all increase the head that the pump must overcome.

Noise and vibration are also system issues. The pump should be mounted securely, and piping should be supported independently so that pipe loads are not transferred to the pump casing. Flexible connectors may be useful in some installations, provided they are compatible with the pressure and temperature requirements.

The motor’s copper winding and C&U bearings support efficient mechanical and electrical operation. Nevertheless, energy performance depends on voltage stability, hydraulic sizing, duty cycle, maintenance, and control settings. Users seeking maximum efficiency should evaluate the complete pump system rather than focusing on one component alone.

Quality and Reliability Considerations for Buyers

When comparing shallow well pumps, buyers should review more than price and motor power. Important questions include the materials used for the shaft and impeller, the type of mechanical seal, the presence of thermal protection, the maximum suction height, the intended liquid temperature, the service environment, and the availability of technical support.

The JET-S Series provides clear specifications for these essential areas. It identifies the AISI 304 shaft, brass impeller, carbon/ceramic mechanical seal, Class F insulation, IP44 protection, +60°C maximum liquid temperature, +40°C maximum ambient temperature, and 8-meter maximum suction height. Transparent specifications make it easier for distributors and installers to determine whether the product is suitable for a project.

Buyers should also confirm the required voltage and frequency for the target market, as well as any local certification or documentation requirements. Product selection must account for regional electrical standards, installation codes, water regulations, and warranty conditions. The manufacturer or authorized supplier should be consulted when a project involves unusual liquid properties, high temperatures, frequent cycling, or complex control systems.

For wholesalers, the breadth of the manufacturer’s portfolio can be an advantage. A supplier that produces shallow well pumps alongside submersible pumps, deep well pumps, booster pumps, circulation pumps, solar pumps, and accessories may provide more coherent product matching. This can simplify procurement, spare-parts planning, technical communication, and future expansion.

How the Pump Supports Different Customer Groups

Homeowners

Homeowners often need a pump that is straightforward to understand and suitable for everyday water tasks. The self-priming design, built-in thermal protector, corrosion-resistant shaft, and compact power range make the JET-S Series appropriate for household water transfer, garden irrigation, and shallow-well supply when correctly installed.

Farm and Garden Operators

Small farms, allotments, and garden operators require dependable water movement without the complexity of a large industrial station. The available models can support hose watering, sprinklers, storage-tank filling, and small automatic irrigation systems. The installer can select a lower-power model for modest duties or a higher-head model for elevated fields and longer pipe runs.

Plumbing and Pump Installers

Professional installers benefit from standardized connections and a practical component structure. The 1-inch inlet and outlet arrangement can simplify integration into common small water systems. The product’s self-priming capability can also reduce the complexity of applications where the pump is positioned above the source.

Distributors and Project Buyers

Distributors need products that can serve several market segments while maintaining clear specifications. The JET-S Series offers three power options and a broad application range. Edwin Pump’s wider product portfolio and export-service capabilities can further support distributors seeking a single manufacturing partner for different water-pumping categories.

Troubleshooting Common Problems

The Pump Does Not Prime

First check whether the pump casing has been filled with water. Then inspect every suction-side connection for air leakage. Confirm that the foot valve is submerged, correctly installed, and closing properly. A blocked strainer, excessive suction height, damaged suction pipe, or incorrectly positioned valve can also prevent priming.

Flow Is Lower Than Expected

Low flow may result from a clogged strainer, blocked impeller, narrow pipe, excessive pipe length, insufficient water level, or operation at a head higher than expected. The actual pressure and elevation should be compared with the pump’s performance requirements. The maximum flow rating should not be interpreted as the flow available at maximum head.

The Motor Trips Frequently

Frequent thermal protection trips may indicate low voltage, incorrect wiring, inadequate ventilation, excessive hydraulic load, a jammed impeller, bearing wear, or repeated rapid cycling. The pump should be disconnected and inspected by a qualified technician rather than repeatedly restarted without identifying the cause.

The Pump Is Noisy or Vibrates

Possible causes include loose mounting, unsupported pipework, air entering the suction line, cavitation, worn bearings, debris in the hydraulic chamber, or operation outside the recommended range. Correcting the installation and checking the internal components can usually identify the source.

Water Leaks Near the Shaft

A leak near the shaft area may indicate mechanical seal damage, dry running, shaft corrosion, misalignment, or normal seal wear. The pump should be stopped if the leak is substantial. Replacing the seal with the correct component and checking shaft condition are important steps in restoring reliable service.

Q&A: Frequently Asked Questions

What type of pump is the JET-S Series?

It is a self-priming JET pump designed for shallow well water lifting, clean-water transfer, domestic supply, garden irrigation, tank filling, and similar applications.

What is the maximum suction height?

The specified maximum suction height is 8 meters. Actual performance depends on altitude, water temperature, suction-pipe length, pipe diameter, fittings, water level, and airtightness.

Can the pump handle dirty water?

The pump is intended for clean water or liquids with similar physical and chemical properties. It should not be used for abrasive slurry, heavily contaminated water, large solids, seawater, or chemically aggressive liquids unless compatibility has been confirmed.

What makes the AISI 304 shaft useful?

AISI 304 stainless steel offers strong corrosion resistance in common clean-water environments. The shaft is less vulnerable to rust-related deterioration than ordinary carbon-steel alternatives, helping protect seal performance and long-term reliability.

Why is a brass impeller advantageous?

A brass impeller offers good strength, corrosion resistance, and dimensional stability for clean-water service. It also works with the rust-free copper inserts to support smoother restarting after periods of inactivity.

Can the pump be used for drinking water?

It may be used in a domestic water system when the complete installation satisfies local water-quality, hygiene, material, and backflow-prevention requirements. The water source itself must be safe, and additional filtration or treatment may be necessary.

Does the thermal protector replace an electrical breaker?

No. The built-in thermal protector provides motor overheat protection, but the installation still requires suitable circuit protection, grounding, a correctly rated disconnect, and professional electrical wiring.

Which model should be selected for a home?

The choice depends on the required flow, pressure, elevation, pipework, and duty cycle. The JET-550S is suited to lighter duties, the JET-750S provides an intermediate option, and the JET-1100S provides the highest maximum head. A system calculation should be completed before purchase.

Can the pump operate outdoors?

It can be installed in a suitable sheltered environment. The IP44 rating does not mean the motor is submersible or protected against direct exposure to severe weather. A ventilated weather cover and proper drainage are recommended.

Does self-priming mean no initial filling is required?

No. The pump casing normally needs to be filled with water during initial commissioning. Self-priming helps the pump remove air and establish flow after proper preparation; it does not permit extended dry running.

What is the maximum liquid temperature?

The maximum specified liquid temperature is +60°C. The pump should not be used above this limit without written technical approval and confirmation that all components are suitable.

What is the motor insulation rating?

The motor has Class F insulation. This supports reliable operation within the specified electrical and thermal conditions, subject to correct installation and ventilation.

What is the protection rating?

The motor has an IP44 protection rating. It is intended for suitable protected installations and must not be submerged or exposed to uncontrolled water ingress.

Can the pump be used with an automatic irrigation controller?

Yes, it can be integrated into an automatic irrigation system when the controller, pressure arrangement, valves, and electrical protection are correctly matched to the motor and hydraulic requirements.

How can distributors benefit from this series?

The three-model range covers several common shallow-water applications, while the manufacturer’s wider portfolio supports additional categories such as deep well, submersible, booster, circulation, solar, and intelligent pumps. This can simplify product sourcing and technical coordination.

Conclusion

The JET-S Series No Rust AISI304 Shaft Shallow Well Water Pump is designed to provide a balanced combination of self-priming performance, corrosion resistance, motor protection, and application flexibility. Its AISI 304 stainless steel shaft, brass impeller, rust-free copper inserts, anti-rust-treated cast iron body, copper winding, C&U bearings, and built-in thermal protector address many of the practical problems encountered in domestic and small commercial water systems.

With models ranging from 0.6 kW to 1.1 kW, the series can support different flow and pressure requirements without forcing every user into the same pump size. Its maximum suction height of 8 meters makes it suitable for many shallow well and tank installations, while the self-priming JET structure supports convenient startup after correct commissioning.

The product also benefits from the manufacturing capabilities of Taizhou Edwin Electric Co., Ltd., an integrated pump enterprise with independent research and development, mass-production capacity, global export experience, and a broad water-pump portfolio. For homeowners, installers, agricultural users, distributors, and commercial buyers, the JET-S Series offers a practical solution for clean-water transfer and shallow-well supply when the pump is correctly selected, installed, protected, and maintained.

References

1. Product technical information for the JET-S Series No Rust AISI304 Shaft Shallow Well Water Pump.

2. Manufacturer-provided component and materials information for JET-S Series pumps.

3. Manufacturer-provided technical data for JET-550S, JET-750S, and JET-1100S models.

4. General principles of centrifugal and self-priming jet pump operation.

5. General guidance for shallow-well pump installation, suction-line design, and clean-water applications.

6. General motor protection principles concerning thermal protection, insulation classes, and enclosure ratings.

7. General pump maintenance practices for mechanical seals, bearings, suction valves, strainers, and hydraulic components.
