Why Self-Priming Jet Pumps Are a Practical Choice for Reliable Household Water Supply

Reliable water movement is essential in homes, gardens, small agricultural installations, and many civil water-supply systems. A pump must do more than move water. It should start dependably, maintain useful pressure, tolerate occasional air in the suction line, operate efficiently, and remain serviceable after long periods of use. For these requirements, a self-priming jet pump offers a practical balance of performance, convenience, and durability.

The HPJ Series Low Noise High Quality Self-Priming JET Pump is designed for users who need a compact surface-mounted pump capable of drawing clean water from wells, tanks, reservoirs, and other water sources. Its self-priming jet-pump construction supports applications where the suction pipe may contain air or where the pump is installed above the water level. At the same time, the series combines a cast iron hydraulic body, brass impeller, stainless steel shaft, thermal motor protection, and continuous-duty operation.

This article examines the design, operating principle, application range, construction materials, motor features, technical specifications, manufacturing strengths, and competitive advantages of the HPJ Series. It also explains how to select the appropriate model and how correct installation and maintenance can improve the service life of the complete pumping system.

1. The Role of a Self-Priming Jet Pump

A conventional surface centrifugal pump generally requires the suction pipe and pump casing to be completely filled with water before operation. If air enters the suction line, the pump may lose prime and fail to lift water. This creates inconvenience in installations where the water level changes, where the suction line is long, or where small amounts of air can enter through connections.

A self-priming jet pump addresses this challenge through a hydraulic arrangement that includes a nozzle, venturi, diffuser, and impeller. During priming, water recirculates within the pump and creates a low-pressure area that helps draw air and water from the suction line. Once the air has been removed and the suction pipe is full of water, the pump operates as a pressure-producing centrifugal unit.

This operating principle makes the pump suitable for domestic and civil applications in which the pump is positioned above the water source. It can support water transfer from tanks and wells, household distribution, garden irrigation, and small pressure systems. The pump is supplied with a flap-check valve, which assists with maintaining the water column and helps prevent unwanted reverse flow when the pump stops.

Self-priming capability does not eliminate the need for proper installation. The pump should be filled with water before its first start, the suction line should be airtight, and the supplied or suitable check valve should be installed correctly. The maximum stated suction height for the HPJ Series is 9 meters under suitable conditions. Actual performance depends on pipe length, pipe diameter, water temperature, atmospheric pressure, elevation, fittings, and the condition of the water source.

2. Overview of the HPJ Series

The HPJ Series is a family of low-noise, surface-mounted self-priming jet pumps developed for clean-water applications. The range includes six models with motor outputs from 0.6 kW to 2.2 kW, corresponding approximately to 0.8 horsepower through 3 horsepower. This range allows users to select a pump according to flow, pressure, pipe size, and required lifting height instead of using one oversized pump for every installation.

The series is intended for clean water or liquids with physical and chemical properties similar to water. It is not presented as a wastewater, slurry, seawater, or heavily abrasive-liquid pump. Correct fluid selection is important because suspended solids, aggressive chemicals, high salinity, and excessive temperature can damage the impeller, mechanical seal, hydraulic passages, or motor system.

The pump is designed for continuous work, making it suitable for applications that require a steady water supply rather than only occasional transfer. Its low-noise operating design is beneficial in residential environments, gardens, utility rooms, and other locations where excessive sound would be undesirable.

The stated maximum liquid temperature is +60°C. This gives the pump useful flexibility for certain warm-water applications, although the complete installation must also be evaluated for pipe material, seal compatibility, electrical safety, and operating conditions. The pump should be installed in an enclosed or sheltered environment and protected from rain, direct exposure to severe weather, flooding, and freezing conditions.

3. Main Advantages Compared with Basic Surface Pumps

3.1 Self-Priming Convenience

The most important advantage of the HPJ Series is its self-priming jet construction. Compared with a basic non-self-priming surface centrifugal pump, the HPJ design is better suited to installations where the pump is above the water level or where air may occasionally be present in the suction line.

This feature can reduce the need for repeated manual priming. It is particularly useful for well-water lifting, tank transfer, garden irrigation, and household installations that are not operated continuously. When the pump has been installed correctly and the suction line remains sufficiently airtight, the self-priming system helps the unit return to operation more easily after a stop.

3.2 Useful Pressure Range

The HPJ Series offers maximum heads from 40 meters to 55 meters for the smaller models and up to 165 meters for the HPJ-2200L2 model. This makes the series suitable for a wide variety of pressure requirements, including water distribution, small pressure sets, irrigation, and applications involving vertical lifting.

Maximum head is not the same as usable flow at every point in a system. A pump reaches its maximum head near zero flow, while its maximum flow is generally achieved at a much lower head. Users should therefore select the model using the complete system duty point, including static lift, pipe friction, required outlet pressure, and desired flow rate.

3.3 Low-Noise Operation

Noise is a significant consideration in household water systems. A pump installed near living areas, bedrooms, offices, or neighboring properties should not create unnecessary disturbance. The HPJ Series is designed around low-noise operation, supported by a balanced motor and hydraulic assembly, smooth bearing operation, and a compact integrated structure.

Actual sound levels depend on installation quality. Rigid mounting, poor pipe alignment, cavitation, worn bearings, air leakage, and vibration transfer through the building can increase noise. Flexible connectors, a stable base, correctly sized pipes, and proper maintenance are important for achieving the quiet operation expected from the pump.

3.4 Durable Hydraulic Materials

The pump body and support use HT200 cast iron with special anti-rust treatment. Cast iron provides structural strength and supports stable alignment of the hydraulic and motor components. The anti-rust treatment improves durability in normal protected installations.

The impeller is made of brass. Brass provides a robust rotating hydraulic component for clean-water service and can offer good resistance to corrosion in ordinary domestic water environments. The pump also uses rust-free copper inserts in the hydraulic arrangement to support reliable restarting after periods of inactivity.

The shaft is manufactured from AISI 304 stainless steel. Because the shaft is exposed to the mechanical seal and water-contact areas, stainless steel construction helps reduce rust-related deterioration. This is especially valuable in pumps that may remain idle for extended periods before restarting.

3.5 Electrical Protection

The single-phase motor includes a built-in thermal protector. If the motor temperature rises excessively because of overload, blocked ventilation, abnormal voltage, or other operating problems, the protector helps interrupt operation and reduce the risk of motor damage. The motor uses Class F insulation and has an IP44 protection rating.

Thermal protection is an important advantage over very basic motors that depend entirely on an external protective device. However, it should not be treated as a replacement for correct electrical installation. The pump still requires suitable circuit protection, correct voltage, proper grounding, and wiring performed by a qualified person.

3.6 Flexible Model Selection

With six power options, the HPJ Series supports more precise system matching than a single-model product line. Smaller units are suitable for moderate household and garden requirements, while the higher-output models provide greater pressure capability for larger systems or more demanding lifting conditions.

The available inlet and outlet sizes range from 1 inch by 1 inch on the smaller models to 1.5 inches by 1.5 inches on the three largest models. Pipe sizing should be considered together with flow requirements. Reducing the pipe diameter unnecessarily can increase friction losses, reduce actual flow, increase noise, and make the pump work harder.

HPJ Series Low Noise High Quality Self-priming JET Pump

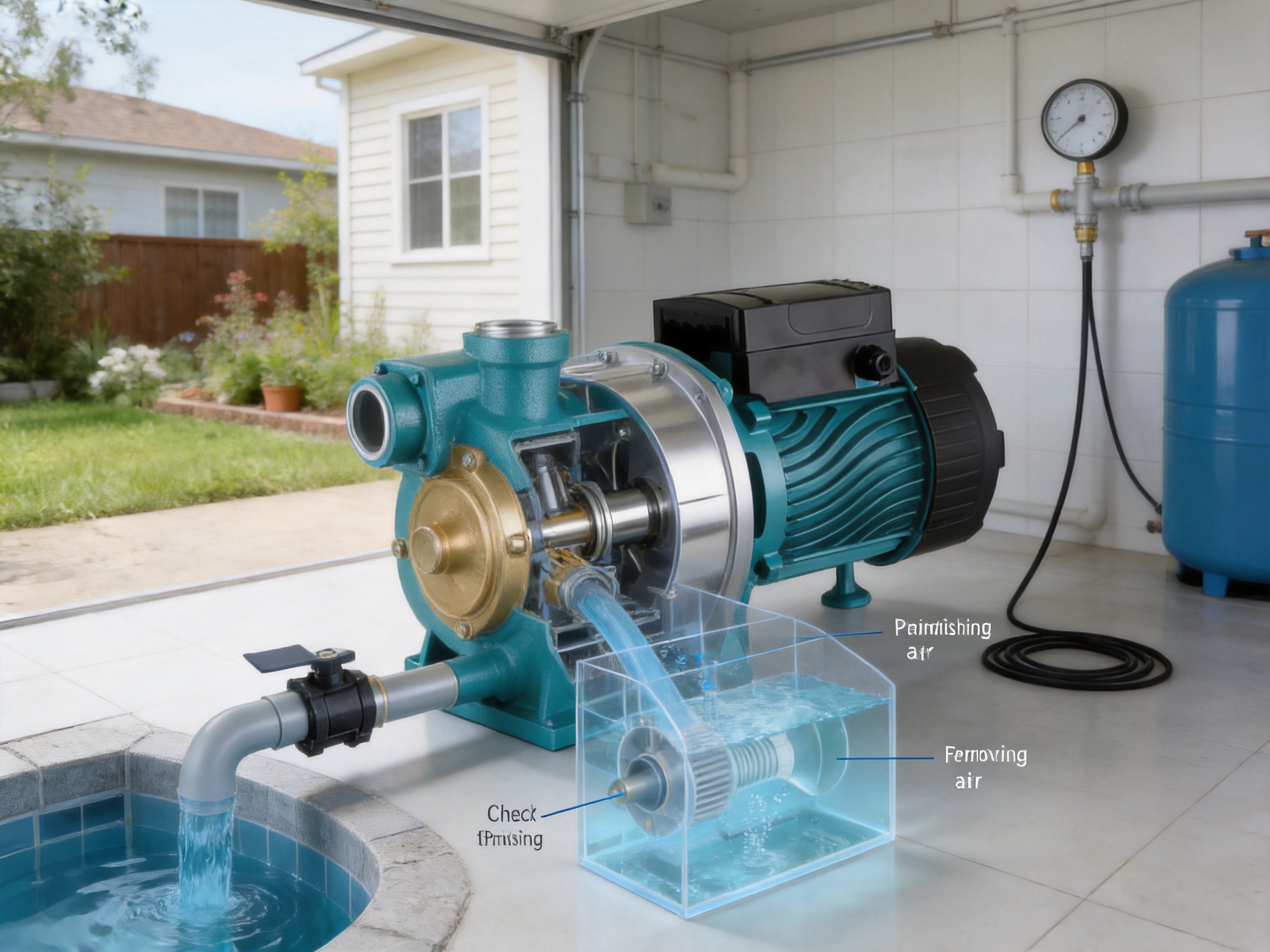

4. Operating Principle and Hydraulic Components

The hydraulic performance of a self-priming jet pump depends on the coordinated operation of several components. The impeller adds energy to the water. The nozzle converts pressure energy into a high-velocity jet. The venturi section uses that velocity to create a low-pressure zone. The diffuser then helps convert velocity into pressure while guiding the water through the pump.

During the initial priming process, water must be introduced into the pump casing through the appropriate filling opening. The impeller circulates this water through the jet system. The resulting pressure difference draws air and water through the suction pipe. The check valve helps retain water in the suction system after the pump stops.

Once the suction pipe is full, the pump delivers water through the discharge connection. The final performance depends on the relationship between the pump curve and the system curve. A system with a high vertical lift or long, narrow pipes will require more pressure than a short, low-level transfer line.

The jet assembly is made from PPO components, including the nozzle, venturi, and diffuser. PPO is a lightweight engineering thermoplastic commonly used for hydraulic components because of its dimensional stability and resistance to many normal water-service conditions. The selected material also supports a compact and efficient internal hydraulic arrangement.

The mechanical seal uses a carbon and ceramic combination. The mechanical seal prevents water from escaping along the rotating shaft into the motor area. Carbon and ceramic sealing faces are widely used in clean-water pumps because they provide a practical combination of wear resistance, sealing reliability, and compatibility with ordinary water service.

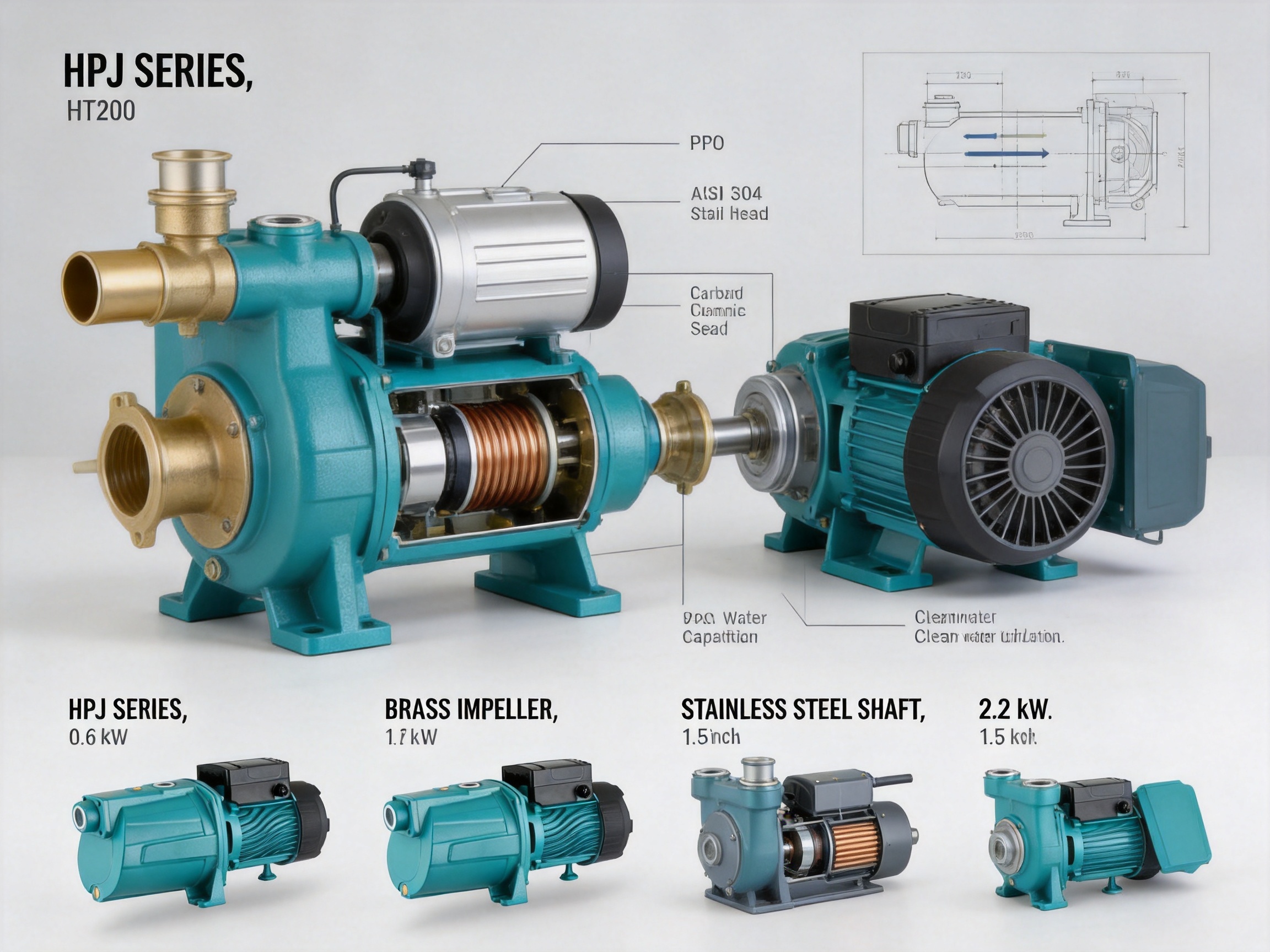

5. Materials and Component Construction

The HPJ Series incorporates a combination of metal and engineered polymer materials selected for the function of each component. This approach allows the pump to balance strength, corrosion resistance, hydraulic efficiency, weight, and manufacturing practicality.

The shaft and rotor, ball bearing, stator, fan cover, capacitor, and terminal cover complete the motor assembly. These parts work together to maintain stable rotation, electrical conversion, cooling, and safe enclosure of the motor system.

A key advantage of this material configuration is that it does not rely on one material for every function. Cast iron is used where rigidity and strength are important. Brass is used for the rotating hydraulic component. Stainless steel is used where rust resistance is especially valuable. Engineering plastics are used in the jet and diffuser components, where precise internal geometry and resistance to ordinary water exposure are required.

6. Technical Data and Model Comparison

The following table summarizes the principal technical data supplied for the HPJ Series. The power values are listed in both kilowatts and horsepower. Maximum flow is expressed in liters per minute, maximum head in meters, and maximum suction height in meters.

The HPJ-550L2 is the smallest model and may be appropriate for modest household transfer and garden applications. The HPJ-750L2 and HPJ-1100L2 provide progressively higher pressure capability while retaining 1-inch connections. The HPJ-1500L2 and HPJ-1800L2 increase the connection size and flow potential for larger demand. The HPJ-2200L2 provides the highest stated flow in the series, although its maximum head is lower than that of some smaller models.

This comparison demonstrates why model selection should be based on the complete operating requirement rather than motor power alone. A larger motor does not automatically provide the highest pressure. For example, the HPJ-2200L2 has the greatest stated maximum flow but a maximum head of 35 meters, while the HPJ-1100L2 reaches a stated maximum head of 55 meters. The correct choice depends on whether the system prioritizes flow, pressure, or a balanced duty point.

7. Application Areas

7.1 Household Water Supply

The HPJ Series can be used to transfer water from a ground-level or underground source to a household distribution system. It is suitable for homes that require improved pressure from a storage tank, well, or similar clean-water source.

In a domestic installation, the pump may be connected to a pressure vessel and pressure control system. This arrangement can reduce frequent motor starts and provide more stable water delivery. The pump may also be integrated with automatic controls, provided that the control equipment is compatible with the motor and the desired operating sequence.

7.2 Well-Water Lifting

The pump is suitable for drawing clean water from wells within the stated maximum suction height. The suction line should be as short and direct as practical, with airtight threaded connections and an appropriately installed foot valve or flap-check valve.

Well conditions should be checked before installation. If the water contains sand, silt, iron deposits, or other suspended matter, filtration or a different pump type may be required. The HPJ Series is intended for clean water, so water quality is a major factor in long-term reliability.

7.3 Garden and Allotment Irrigation

Garden irrigation systems often require moderate flow and useful pressure, especially when water must travel through hoses, sprinklers, drip lines, or several distribution points. The self-priming design is convenient when water is drawn from a tank or shallow source and the pump is installed nearby but above the water level.

For irrigation, users should consider the total number of outlets operating at one time. A pump selected for one sprinkler may not deliver adequate pressure when several sprinklers operate simultaneously. Pipe diameter and filter cleanliness also influence the real flow available at the outlet.

7.4 Tank Transfer

The pump can transfer clean water between storage tanks, reservoirs, and domestic systems. The check valve helps prevent reverse drainage, while the self-priming design supports installations where the pump is not located at the lowest point of the system.

Float switches, level sensors, or automatic controllers may be added where unattended operation is required. Such equipment should protect the pump against dry running and unnecessary operation when the source tank is empty.

7.5 Small Pressure Sets

The HPJ Series is suitable for small pressure sets used in homes, gardens, and civil applications. A pressure set commonly includes a pump, pressure switch or controller, pressure vessel, check valve, pressure gauge, and suitable piping.

When correctly configured, the pressure set can maintain a more useful water pressure at taps and outlets. It can also reduce the frequency of direct pump starts caused by very small water demands. Correct pressure settings are essential because excessive cut-in or cut-out pressure can cause unstable operation or overload.

7.6 General Civil and Utility Applications

The pump may be used in various civil water-transfer situations where the liquid is clean and the required duty falls within the technical range. Examples include water supply for small buildings, utility washdown, landscape systems, and water movement around non-industrial facilities.

For commercial or industrial projects, the pump should be evaluated by a qualified system designer. The duty point, electrical supply, environmental conditions, required redundancy, maintenance plan, and local regulations should all be confirmed before purchase.

8. Manufacturing Strengths and Product Development Capability

The manufacturer behind the HPJ Series is Taizhou Edwin Electric Co., Ltd., also known as Edwin Pump. The company was founded in 2008 and operates as an integrated manufacturing enterprise focused on independent research and development, mass production, and global export.

This combination is important for pump buyers because product reliability depends not only on the design concept but also on the ability to reproduce that design consistently. Independent research and development supports product adaptation and technical improvement. Mass-production capability supports repeatability, availability, and consistent component coordination. Export experience supports packaging, order management, documentation, and communication with international customers.

The company’s product portfolio includes deep-well pumps, submersible pumps, domestic booster pumps, circulation pumps, solar water pumps, intelligent booster pumps, and related water-treatment peripheral products. This broader product range gives the manufacturer experience across different hydraulic principles, motor formats, installation conditions, and customer requirements.

Since 2018, the company has invested in new energy and intelligent technology, expanding into solar water pumps and intelligent booster pumps. Although the HPJ Series is a conventional surface-mounted self-priming pump, this wider investment demonstrates an effort to respond to changing water-supply needs and to develop products for both traditional and emerging applications.

The company also established Taizhou Haipai Import and Export Co., Ltd. and Golden Falcon Industrial Co., Ltd. in 2012. These related organizations support procurement planning, order tracking, cross-border delivery, and foreign-trade services. For international buyers, this one-stop purchasing structure can simplify communication and coordination from product selection through shipment.

8.1 Integrated Product Understanding

A manufacturer with several pump categories can evaluate a customer’s application more broadly. A buyer who initially requests a surface jet pump may ultimately require a submersible pump, booster pump, pressure controller, or solar solution depending on source depth and duty conditions. A diversified product portfolio makes it easier to identify alternatives when the original pump type is not the best technical choice.

8.2 Materials-Based Design Approach

The HPJ Series reflects a materials-based design approach. The cast iron body and support provide a stable base. The brass impeller supports durable hydraulic operation. AISI 304 stainless steel is used for the shaft and water-contact areas. PPO is used for the nozzle, venturi, and diffuser, where hydraulic shape and dimensional consistency matter.

This type of component selection is a practical manufacturing strength because each material is matched to a specific job. The result is a pump that does not depend on a single low-cost material throughout the entire assembly. Instead, the construction is organized around structural performance, water compatibility, rotating reliability, and ease of production.

8.3 Motor Assembly Capability

The motor includes durable copper wiring, C&U bearings, a built-in thermal protector for the single-phase motor, Class F insulation, and IP44 protection. These features indicate attention to electrical winding quality, bearing smoothness, temperature control, insulation reliability, and protection against ordinary environmental exposure.

Motor manufacturing requires coordination between the stator, rotor, shaft, bearings, housing, fan, capacitor, terminal board, and protective covers. Correct alignment is particularly important in a pump because hydraulic loads and rotating forces must be handled continuously. A stable motor assembly helps reduce vibration, noise, bearing wear, and mechanical-seal stress.

8.4 Global Supply and One-Stop Service

International buyers often evaluate more than the product itself. They also consider minimum order planning, lead times, documentation, packaging, shipment coordination, spare parts, and after-sales communication. The manufacturer’s export-oriented structure and associated foreign-trade services are intended to support these requirements.

For distributors and project purchasers, the ability to source several types of pumps from one supplier can reduce supplier complexity. It may also make product training, spare-parts planning, and catalog management more efficient.

9. Competitive Advantages for Distributors and Buyers

The HPJ Series has several characteristics that can distinguish it from basic low-cost jet pumps in the market. These advantages should be considered in relation to the intended application and verified against the purchaser’s technical requirements.

First, the series offers a complete range rather than a single motor size. This supports more accurate selection and gives distributors a broader product offering. Second, it combines self-priming performance with a brass impeller and stainless steel shaft, providing a more durable material package than pumps that use less robust components in water-contact areas.

Third, the low-noise design and continuous-work capability make the pump suitable for regular household and utility use. Some inexpensive pumps are designed mainly for intermittent transfer and may be less appropriate for sustained operation. The HPJ Series is presented for continuous operation, which is valuable for steady water supply and pressure-set applications.

Fourth, the built-in thermal protector adds a layer of motor protection for single-phase use. While external electrical protection remains necessary, the integrated protector can help respond to overheating conditions during abnormal operation.

Fifth, the pump comes complete with a flap-check valve. Including this component simplifies installation and supports the self-priming function. Buyers should still confirm that the valve is compatible with the pipe arrangement and that it is installed in the correct direction.

Finally, the manufacturer offers access to a wider group of pump products and related services. This can benefit importers, wholesalers, contractors, and project buyers who prefer a single manufacturing partner for multiple water-pumping categories.

10. Installation Recommendations

The pump should be installed on a stable, level foundation capable of supporting its weight and absorbing normal vibration. The installation environment should be enclosed or sheltered from rain, snow, direct sunlight, flooding, and severe weather.

The suction pipe should be airtight. Even a small air leak can prevent effective priming or cause unstable operation. Threaded connections should be sealed appropriately, and the pipe should not have unnecessary high points where air can accumulate.

The suction pipe should be sized and routed to minimize friction loss. A long suction pipe, excessive elbows, undersized fittings, or a partially blocked filter can significantly reduce performance. The end of the suction line should remain below the minimum water level so that the pump does not draw air.

Before the first start, fill the pump casing with clean water according to the installation instructions. Do not operate the pump dry. Dry running can rapidly damage the mechanical seal and may cause overheating. If the pump fails to prime, stop it and inspect the water level, valve direction, pipe sealing, filling procedure, and suction height.

The discharge pipe should be supported independently rather than allowing its weight to rest on the pump connections. Pipe strain can distort the pump casing or create leakage at the inlet and outlet joints.

The electrical supply should match the motor rating. The circuit should include proper grounding and suitable overload and short-circuit protection. Electrical connections must be protected from water and completed by qualified personnel in accordance with applicable local regulations.

Where automatic operation is required, the system may include a pressure switch, electronic controller, float switch, or water-level sensor. The control method should include dry-run protection whenever the water source may become empty.

11. Maintenance and Service Practices

Regular inspection helps preserve the low-noise and high-efficiency characteristics of the HPJ Series. Operators should listen for unusual noise, observe vibration, check for leakage, and monitor changes in flow or pressure. A gradual reduction in performance may indicate a blocked suction filter, air leakage, worn hydraulic parts, low water level, or a problem with the discharge system.

The pump and surrounding area should be kept clean and dry. Ventilation openings must remain unobstructed so that the motor can release heat. Dust, leaves, packaging material, and other debris should not be allowed to accumulate around the motor fan cover.

Water filters and foot valves should be inspected periodically. A blocked filter increases suction resistance and may lead to cavitation or loss of prime. A damaged check valve can allow the suction line to drain after shutdown, causing repeated priming difficulties.

The mechanical seal should be monitored for signs of leakage. A small amount of initial moisture may occur in some mechanical-seal systems, but continuous or increasing leakage requires inspection. Operating the pump with a damaged seal can allow water to reach the bearings or motor components.

Bearings should be checked if the pump develops abnormal sound, excessive vibration, or increased operating temperature. The C&U bearings are designed for smooth operation, but any bearing will eventually be affected by contamination, misalignment, overload, or normal wear.

If the pump will be unused for a long period, it should be protected from freezing. In climates where temperatures may fall below the freezing point, the pump and exposed pipes should be drained or otherwise protected according to the installation design. Frozen water can damage the casing, fittings, and hydraulic components.

Before servicing the pump, disconnect the electrical supply and ensure that pressure has been released from the system. Repairs should use compatible replacement parts and should be carried out by trained personnel.

12. How to Select the Correct HPJ Model

Model selection begins with the required flow rate. Estimate the simultaneous water demand, not merely the total daily water consumption. A household may need only a small flow at one time, while an irrigation system may require a significantly larger flow when multiple outlets operate together.

Next, calculate the total dynamic head. This includes the vertical distance between the water surface and the highest outlet, the pressure required at the outlet, and friction losses in the suction and discharge pipes. Every elbow, valve, filter, check valve, and fitting contributes some resistance.

The suction height must also be checked. The HPJ Series has a stated maximum suction height of 9 meters, but the practical limit can be lower in difficult conditions. Atmospheric pressure decreases at higher elevations, and hot water increases vapor pressure, both of which can reduce available suction performance.

Pipe diameter should correspond to the selected pump. The three larger models use 1.5-inch inlet and outlet connections, while the smaller models use 1-inch connections. The use of larger pipes may be beneficial on long runs because it reduces friction loss. However, all components, including valves and filters, must be considered as part of the complete system.

Users should also consider the electrical supply. The supplied information identifies single-phase motor protection, but the buyer should confirm the exact voltage and frequency configuration before ordering. Electrical specifications can vary by market and should be matched to the intended installation.

13. Efficiency and Energy Considerations

High-efficient running depends on selecting a pump that operates near its intended duty point. A pump that is too large may consume more energy than necessary, cycle frequently, or require throttling. A pump that is too small may run continuously without achieving the desired pressure and may experience excessive thermal stress.

The HPJ Series uses copper motor wiring and a hydraulic design based on an impeller, nozzle, venturi, and diffuser. These features support efficient conversion of electrical energy into hydraulic energy. Nevertheless, system design remains equally important. A clogged filter, undersized pipe, leaking suction line, or partially closed valve can reduce overall efficiency even when the pump itself is functioning correctly.

Reducing unnecessary pipe bends and maintaining clean filters can improve performance. Avoiding leaks prevents the pump from running longer than required. Automatic pressure or level controls can also reduce wasted operating time, especially in systems where demand changes throughout the day.

Energy efficiency should be evaluated using actual flow, actual head, operating hours, and electricity cost. The model with the highest motor power is not automatically the most economical. The most efficient selection is usually the one that meets the required duty without excessive reserve capacity.

14. Safety and Operating Limits

The HPJ Series is intended for clean water and comparable liquids. Users should not assume that a self-priming pump can handle abrasive, fibrous, corrosive, or heavily contaminated fluids. If the water source contains sand or suspended particles, a filtration solution or a different pump category may be necessary.

The maximum liquid temperature is +60°C. Operation above this temperature may affect the mechanical seal, plastic hydraulic components, insulation system, and other parts. Temperature should be evaluated at the pump inlet, not only at the storage tank or source.

The IP44 rating indicates protection suitable for ordinary sheltered conditions, but it does not mean that the motor can be submerged or exposed to high-pressure water jets. The pump must be protected from flooding and direct weather exposure.

Never remove protective covers while the pump is energized. Rotating components and electrical terminals can create serious hazards. The pump should be isolated before inspection, cleaning, or repair.

Do not allow the pump to operate without water. If the source may run dry, use a level switch, dry-run controller, or another suitable protective method. Thermal protection may limit some motor damage, but it does not prevent mechanical-seal wear caused by dry running.

15. Why Product Support Matters in International Purchasing

For global distributors and project buyers, a dependable product is only one part of a successful supply relationship. Clear technical communication, stable production, accurate documentation, packaging suitable for export, and responsive order coordination are also important.

Edwin Pump’s manufacturing and export structure is designed to support international customers requiring different pump categories. The company serves markets connected with new energy projects, agricultural irrigation, municipal engineering, mining, construction, HVAC systems, and household water supply.

This industry coverage can be useful to buyers who need more than one product type. For example, a project may require a surface pump for tank transfer, a submersible pump for drainage or well service, a booster pump for pressure control, and a circulation pump for HVAC. A supplier with a broad product portfolio can help coordinate these requirements through a more unified procurement process.

Product selection should still be based on documented technical requirements. Buyers are encouraged to request the appropriate performance curves, electrical details, dimensional drawings, installation instructions, spare-parts information, and packaging specifications for their market and project.

16. Q&A

Q1: What is the main purpose of the HPJ Series?

The HPJ Series is designed to transfer clean water and similar liquids in household, garden, irrigation, tank, well-water, civil, and small pressure-set applications. Its self-priming jet construction is especially useful when the pump is installed above the water source.

Q2: What does self-priming mean?

Self-priming means that the pump uses an internal jet arrangement to help remove air from the suction line after the casing has been filled with water. This allows the pump to recover prime more conveniently than a basic non-self-priming centrifugal pump, provided that the suction line is airtight and the installation remains within the stated limits.

Q3: Can the pump run dry?

No. The pump should not be operated without water. Dry running can damage the mechanical seal and cause overheating. A float switch, level sensor, or dry-run controller should be considered where the water source may become empty.

Q4: What is the maximum suction height?

The stated maximum suction height for all listed HPJ models is 9 meters. Actual performance may be lower because of pipe friction, air leakage, altitude, water temperature, valves, filters, and other installation conditions.

Q5: What type of water can the pump handle?

The pump is suitable for clean water or liquids with similar physical and chemical properties. It is not intended for wastewater, abrasive slurry, heavily contaminated water, or aggressive chemicals unless compatibility has been specifically confirmed.

Q6: Which HPJ model provides the highest flow?

The HPJ-2200L2 has the highest stated maximum flow at 165 liters per minute. It has a rated power of 2.2 kW or 3 HP and a maximum stated head of 35 meters. The required operating point should be checked before selecting it solely because of its maximum flow.

Q7: Which model has the highest stated maximum head?

The HPJ-2200L2 has a maximum stated head of 165 meters according to the supplied technical data. Because this value is unusually different from the other listed maximum-head values, buyers should confirm the applicable product data sheet and performance curve before final selection.

Q8: Is the pump suitable for hot water?

The maximum stated liquid temperature is +60°C. It may therefore be used for certain warm-water applications within this limit, provided that the complete system, seals, pipes, controls, and safety arrangements are also suitable.

Q9: Is the motor protected against overheating?

The single-phase motor includes a built-in thermal protector. This helps protect the motor during certain overload or overheating conditions. It does not replace correct circuit protection, grounding, ventilation, and professional electrical installation.

Q10: What does IP44 mean?

IP44 indicates protection against solid objects above a specified size and splashing water from different directions under defined test conditions. It does not mean the motor is waterproof, submersible, or suitable for direct high-pressure washing. The pump should be installed in a sheltered environment.

Q11: Why is a check valve included?

The flap-check valve helps control the direction of water flow and supports retention of water in the suction system after shutdown. This is important for self-priming performance and can reduce the chance of the suction line draining back into the source.

Q12: Can the pump be used for automatic irrigation?

Yes, the pump is suitable for automatic irrigation systems when correctly sized and combined with compatible controls. The system should include protection against dry running and should be designed according to the number of irrigation outlets operating at the same time.

Q13: What maintenance does the pump require?

Maintenance includes checking for leakage, unusual noise, vibration, blocked filters, damaged valves, pipe air leaks, and adequate motor ventilation. The pump should be drained or protected in freezing conditions and disconnected from power before service work.

Q14: What makes the pump different from a basic low-cost surface pump?

Its differentiating features include self-priming jet construction, low-noise operation, continuous-work capability, a brass impeller, AISI 304 stainless steel shaft, cast iron body and support, built-in thermal protection, and a six-model range covering different flow and pressure requirements.

Q15: How should an importer evaluate the series?

An importer should compare the required duty point, water quality, electrical supply, connection sizes, operating schedule, installation environment, available technical documentation, spare-parts support, packaging, and order-service capability. The pump should be assessed as part of the complete water system rather than by motor power alone.

17. Final Assessment

The HPJ Series Low Noise High Quality Self-Priming JET Pump is a practical solution for clean-water transfer, domestic supply, irrigation, well lifting, tank service, and small pressure systems. Its principal value comes from combining self-priming convenience with a durable material package and a protected single-phase motor.

The cast iron body and support provide a stable structure, while the brass impeller and AISI 304 stainless steel shaft support dependable water-contact operation. PPO jet components help create the internal self-priming action, and the carbon/ceramic mechanical seal helps control shaft leakage. Low-noise operation, continuous-duty design, thermal protection, Class F insulation, and IP44 protection further support everyday usability.

Compared with basic surface pumps, the series offers greater application flexibility, a broader model range, and features aimed at reducing common operating problems. Its effectiveness will depend on correct model selection, airtight suction piping, adequate water supply, proper electrical protection, and regular maintenance.

The manufacturer’s integrated approach to research and development, mass production, and international export provides additional value for distributors and project buyers. With experience across deep-well, submersible, booster, circulation, solar, intelligent, and other pump categories, the company is positioned to support broader water-supply requirements beyond a single product family.

For buyers seeking a compact and adaptable pump for clean-water applications, the HPJ Series offers a balanced combination of hydraulic capability, self-priming performance, material durability, motor protection, and procurement flexibility. Final selection should always be confirmed against the actual system duty point and the latest product documentation.

References

1. HPJ Series product information and technical data supplied for this article.

2. Taizhou Edwin Electric Co., Ltd. company profile and manufacturing information supplied for this article.

3. General principles of centrifugal and self-priming jet-pump operation.

4. General guidance on pump system design, suction lift, pipe friction, and hydraulic duty-point selection.

5. General engineering references concerning mechanical seals, motor insulation classes, ingress-protection ratings, and thermal motor protection.

Product: HPJ Series Low Noise High Quality Self-priming JET Pump

Lu Wanying — Senior After-Sales Service Specialist

over 8 years of experience in pump after-sales support, focusing on technical consultation, warranty coordination, customer feedback tracking, and service solutions for deep well pumps, submersible pumps, and intelligent booster pumps in overseas markets.
