Wholesale 4SDM10 4SDM9 4 Inch High Barrel High Precision Bearing Anti-aging Borehole Submersible Pump for industrial and mining enterprises Supplier, OEM/ODM Company

Description :

EDWIN offers high-quality 4SDM10/4SDM9 Deep Well Pump, designed specifically for industrial and mining enterprises. This professional-grade pump is engineered to deliver outstanding performance and reliability, making it the ideal choice for demanding applications.

Applications :

Provides water supply from wells or reservoirs for various use cases.

Caters to domestic, civil, and industrial applications with stable performance.

Supports garden maintenance and agricultural irrigation operations efficiently.

Key Features :

1、Featuring a high barrel design, our 4SDM10/4SDM9 Deep Well Pump ensures maximum efficiency and durability. Its high precision bearing guarantees smooth operation, reducing friction and extending the pump's lifespan. With its anti-aging properties, this pump is built to withstand harsh environments and prolonged usage, providing long-lasting performance.
2、Our 4SDM10/4SDM9 Deep Well Pump is meticulously crafted to meet the rigorous demands of industrial and mining enterprises. Its robust construction and advanced technology make it capable of handling heavy-duty tasks with ease. Whether it's extracting water from deep wells or pumping fluids in challenging environments, this pump delivers exceptional results.
3、Invest in the reliability and efficiency of our 4SDM10/4SDM9 Deep Well Pump for your industrial and mining operations. With its superior features and professional-grade performance, this pump is the perfect solution to meet your needs. Trust in our product to ensure smooth operations and maximize productivity in your enterprise.
4、Small footprint, no need to build pump house

Operating Conditions:

Maximum fluid temperature up to +35℃
Maximum sand content : 0.25%
Minimum well diameter : 4"

Motor and Pump:

Rewindable electric motor

Single-phase: 220-240V/50Hz or Three-phase: 380-415V/50Hz

Equipped with a starting control box or digital automatic control box

Pumps are designed with casing stress considerations

Compliant with NEMA dimensional standards

Curve tolerances adhere to ISO 9906 guidelines

Options on request:

Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor

Warranty : 2 years

(according to our general sales conditions)

CE Certificate :

Components :

Components	Material
Pump external casing	Stainless Steel
Delivery casing	①Cast-Cu ASTM C85500②AISI 304 SS
Suction lantern	①Cast-Cu ASTM C85500②AISI 304 SS
Diffuser	Plastic.PC
Impeller	1.Plastic.POM 2.Plastic.PPO
Shaft	AISI 304 SS
Shaft coupling	AISI 304 SS
Wear ring	AISI 304 SS
Motor external casing	Stainless Steel
Oil chamber	①Cast-Cu ASTM C85500 ②AISI 420 SS
Oil chamber	③Cast-iron ASTM NO.30
Bottom support	AISI 304 SS
Mechanical seal	Special seal for deep well (Graphite-Ceramic/TC)
Shaft	AISI 304 SS-ASTM 5140
Seal lubricant oil	Oil for food machinery and pharmaceutic use.

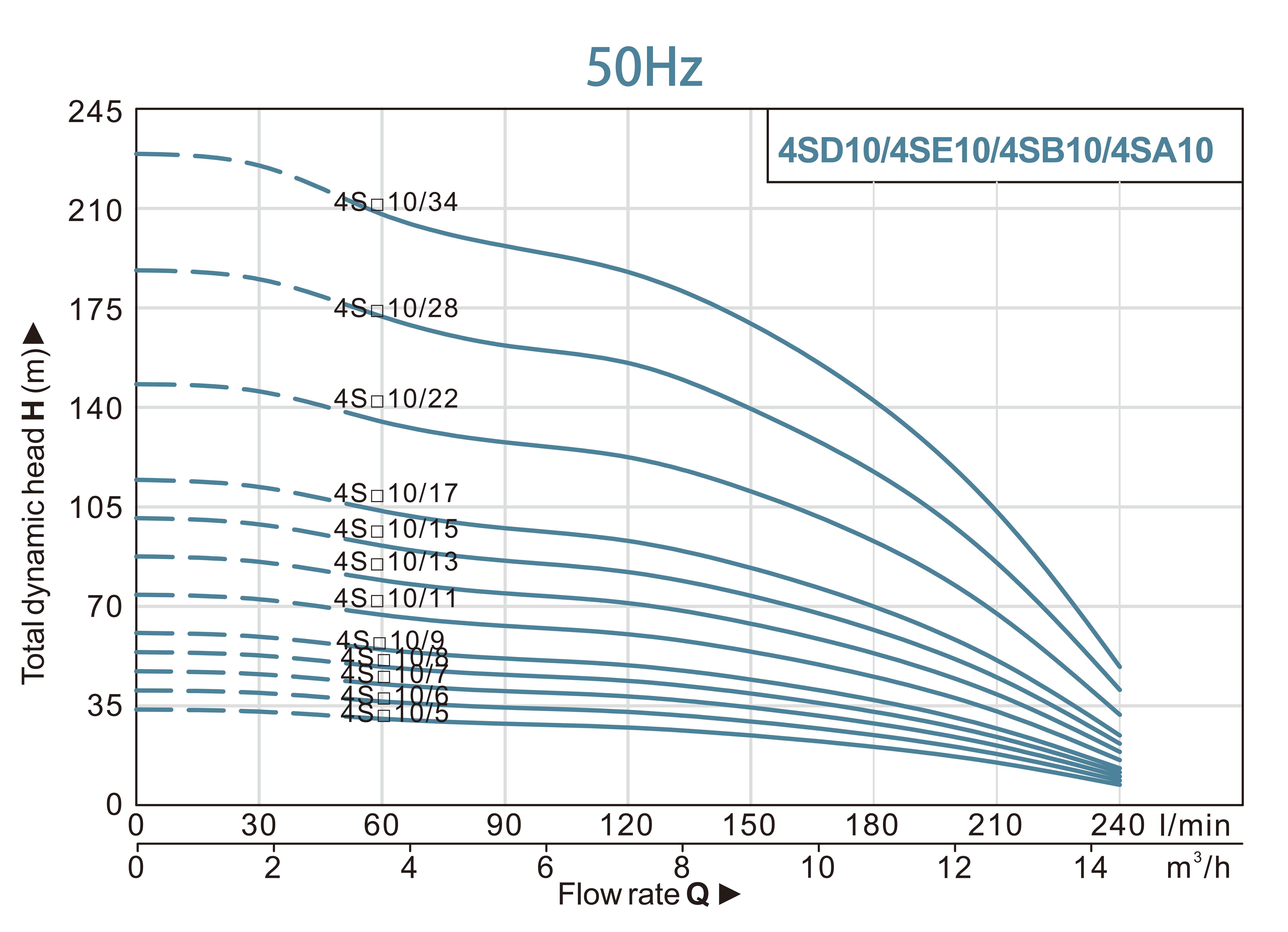

Performance Curves：

Performance Data ( 50Hz ) :

Model		Power		Delivery n≈2850 r/min
1~220-240V	3~380-415V	KW	HP	Q(m³/h)	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4
1~220-240V	3~380-415V	KW	HP	Q(l/min)	0	30	60	90	120	150	180	210	240
4S□M10/5	4S□10/5	0.75	1	H(m)	34	33	30	29	27	25	21	15	7
4S□M10/6	-	0.92	1.25		40	40	37	34	33	29	25	18	9
4S□M10/7	4S□10/7	1.1	1.5		47	46	43	40	38	34	29	21	10
4S□M10/8	-	1.3	1.75		54	53	49	46	44	39	33	24	12
4S□M10/9	4S□10/9	1.5	2		61	59	55	52	49	44	37	27	13
4S□M10/11	-	1.8	2.5		74	72	67	63	60	54	45	33	16
4S□M10/13	4S□10/13	2.2	3		88	86	79	75	71	64	53	39	19
4S□M10/15	4S□10/15	2.6	3.5		101	99	91	86	82	74	62	45	22
4S□M10/17	4S□10/17	3	4		115	112	104	98	93	84	70	51	25
-	4S□10/22	4	5.5		148	145	134	126	120	108	91	66	31
-	4S□10/28	5.5	7.5		189	185	170	161	153	138	115	84	40
-	4S□10/34	7.5	10		229	224	207	195	186	167	140	102	49

4S□ in the above table can be replaced by any of 4SD,4SE,4SB,4SA

Performance Data ( 60Hz ) :

MODEL		MOTOR		Delivery n≈3450 r/min
1~ 110/220V	3~ 220/380V	KW	HP	Q(m³/h)	0	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.6	10.8	12.0	13.2
1~ 110/220V	3~ 220/380V	KW	HP	Q(l/min)	0	20	40	60	80	100	120	140	160	180	200	220
4□□M9/3	4□□9/3	0.75	1	H(m)	29	29	27	25	24	23	22	20	17	13	9	4
4□□M9/4	4□□9/4	0.92	1.25		39	38	36	34	32	31	29	26	22	18	12	6
4□□M9/5	4□□9/5	1.1	1.5		49	48	45	42	40	39	36	33	28	22	15	7
4□□M9/6	4□□9/6	1.3	1.75		58	58	54	51	48	46	44	39	34	26	18	9
4□□M9/7	4□□9/7	1.5	2		68	67	64	59	57	54	51	46	39	32	22	10
4□□M9/9	4□□9/9	1.8	2.5		87	86	82	76	73	69	66	59	50	40	28	13
4□□M9/11	4□□9/11	2.2	3		107	106	100	93	89	85	80	72	62	48	34	16
-	4□□9/12	2.6	3.5		116	115	109	102	97	92	88	78	67	53	37	18
-	4□□9/14	3	4		136	134	127	119	113	108	102	91	78	62	43	21
-	4□□9/16	3.7	5		155	153	145	136	129	123	117	104	89	71	49	24
-	4□□9/18	4	5.5		175	173	163	153	145	139	131	117	101	79	55	27
-	4□□9/20	5	7		194	192	181	170	161	154	146	130	112	88	61	30
-	4□□9/22	5.5	7.5		213	211	200	187	178	169	161	143	123	97	68	33
-	4□□9/25	7	10		243	240	227	212	202	193	182	163	140	110	77	37
-	4□□9/27	7.5	10		262	259	245	229	218	208	197	176	151	119	83	40
