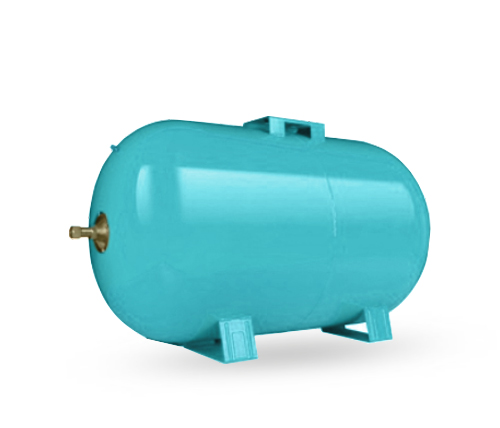

WCF Series 6 Bar to 16 Bar 1 Inch Connector Horizontal Water Pressure Tank

Replaceable membrane pressure tanks
Carbon steel flange
Working temperature : -10°C~99°C (Butyl)
-10°C~99°C (EPDM)

PREV：NVT Series Vertical Pressure Tank for Pump
NEXT：VT-XY Series Fixed Membrane Expansion Vertical Tank for Heating System

Description
Components
Curves
Performance Data
Contact Us

Technical Data :

Model	Max. pressure	Length	Height	Precharge Pressure	Connector	Packing
Model	bar	mm	mm	bar	Connector	CBM
WCF60L	6;8;10;16	680	408	1.8-2.0	1"	0.1054
WCF80L	6; 8;10;16	640	470	1.8-2.0	1"	0.1398
WCF100L	6; 8;10;16	725	470	1.8-2.0	1"	0.1616
WCF150L	10;16	980	532	2.5/4.0	1"	0.2803
WCF200L	10;16	912	660	2.5/4.0	1.5"	0.4134
WCF300L	10;16	1192	660	2.5/4.0	1.5"	0.5353
