KA Series 230V Submersible Pump For Seawater And Freshwater Aquaculture

Rated voltage : 230V
Power : 0.75kW / 1HP-11kW / 15HP
Max. flow : 42-420m³/h
Submersible Pump
For Seawater And Freshwater Aquaculture

PREV：KSS Series Waterproof Stainless Steel Submersible Pump for Sewage Treatment Plants
NEXT：QXN Series High-lift Efficiency Submersible Pump for Water Supply from Wells

Description
Components
Curves
Performance Data
Contact Us

Description :

The KA Series 230V Anti-aging Submersible Pump is a versatile and reliable solution for both seawater and freshwater aquaculture. With exceptional performance and durability, this pump is designed to meet the demanding requirements of various applications, including water supply and drainage for aquaculture, agricultural irrigation, ponds and lakes, as well as landscape water features.

Application :

Seawater and freshwater aquaculture water supply and drainage: It is specially designed to meet the water circulation needs of seawater and freshwater aquaculture systems, efficiently completing water supply and drainage operations to maintain stable water quality and suitable water levels for fish, shrimp, shellfish and other aquatic organisms, supporting healthy growth and high-yield breeding.

Agricultural irrigation water supply and drainage: It provides reliable water supply and drainage solutions for agricultural irrigation, effectively transporting water resources to farmland, orchards and other planting areas, and can also timely drain excess water from farmland to avoid waterlogging, thus ensuring normal crop growth and improving agricultural production efficiency.

Ponds and lakes water supply and drainage: It is suitable for water supply and drainage management of natural or artificial ponds and lakes, helping to regulate water storage capacity, maintain ecological water level balance, and support water environment maintenance and ecological restoration of water areas such as fisheries and leisure lakes.

Landscape water management: It participates in the operation and maintenance of landscape water bodies such as urban parks, residential community waters and scenic artificial lakes, realizing water circulation, water replenishment and drainage, and creating a beautiful and stable ecological landscape water environment.

Operating conditions :

Water temperature : up to 40℃

Max. water depth : 25m

Specification :

Capacity: up to 660m³/h

Head: up to 50m

Insulation class : F

Protection class : IP68

Cable length : 6m

Options on request :

Other voltages

The length of cable is optional

Warranty : 1 year

(according to our general sales conditions)

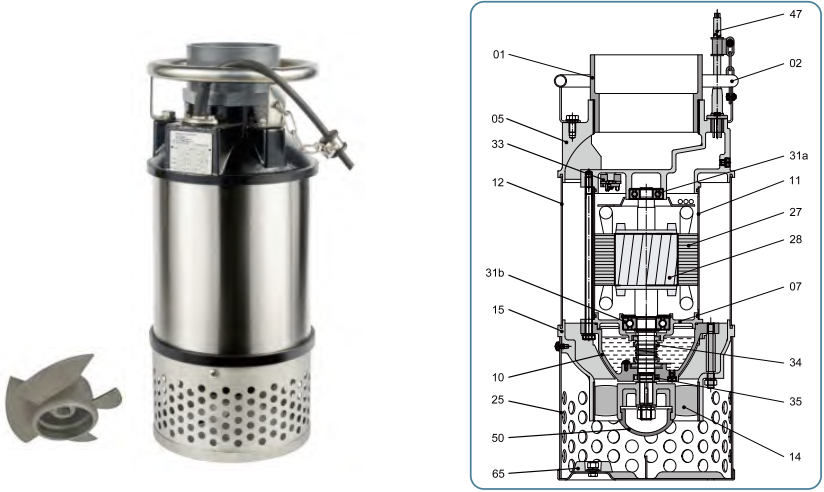

Material of Construction :

Materials Table
NO.	Name	Material
01	Hose coupling	PVC-U
02	Handle	AISI304SS
05	Upper cover	Cast iron
07	Bearing house	Cast iron
10	Seal house	Cast iron
11	Motor casing	AISI316LSS
12	Outer casing	AISI304SS
14	Impeller	AISI444SS
15	Diffuser	Cast iron
25	Strainer	AISI304SS
27	Stator
28	Rotor	Shaft : AISI316LSS
31a	Bearing	Ball bearing
31b	Bearing	Ball bearing
33	Motor protector
34	Mechanical seal	KA(M)4.75:Sic-Ceramic/Carbon-Ceramic
34	Mechanical seal	KA62.2:Sic-Sic/Carbon-Ceramic
35	Oil seal
47	Cable	H07RN-F
50	Sealing bowl	NBR
65	Cathodic protection plate	Aluminum die casting

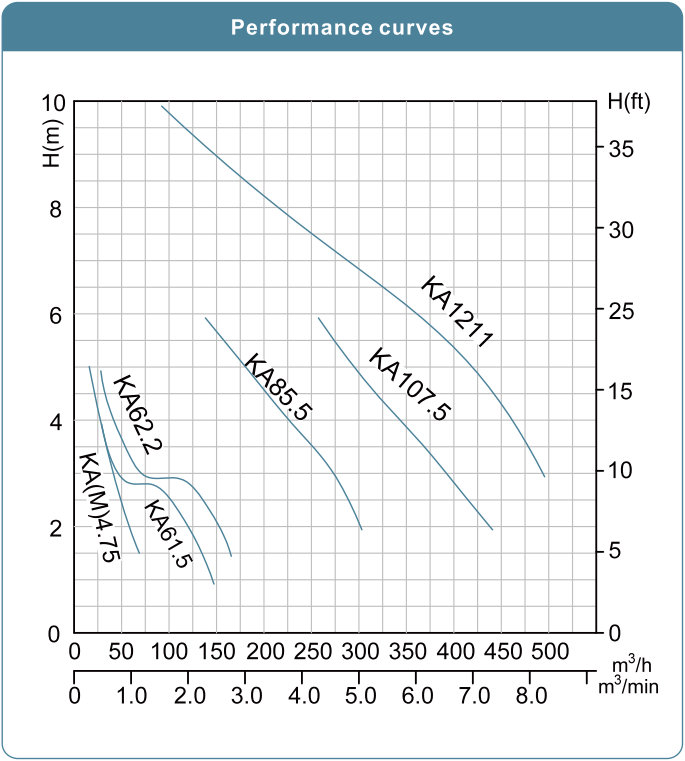

Performance Curves :

Performance Data :

Model	Motor power (kw/HP)	Outlet (mm)	Voltage (V)	Max. flow (m³/h)	Max.head (m)	Impeller passage (mm)	G.W. (kg)	Dimensions (cm)
KA(M)4.75	0.75/1.0	100	230	63	3	10	27	62.0×27.0×31.5
KA61.5	1.5/2.0	150	230	162	2.3	20	51	75.0×32.0×34.5
KA62.2	2.2/3.0	150	230	180	3	20	54	75.0×32.0×34.5
KA85.5	5.5/7.5	200	230	330	4	22	128	94.5×39.5×46.5
KA107.5	7.5/10	250	230	480	4	22	160	106.5×43.5×50.5
KA1211	11/15	300	230	540	5	23	205	110.5×49.5×56.5
