Cast Iron Pump Body
Mechanical Circulation Pump
for Heating System
Inlet/Outlet : 1" x 1"
Body length : 180mm
This pump is engineered to deliver exceptional performance with a flow rate of up to 3.4m³/h and a head of up to 8 meters, making it ideal for a variety of heating applications
Applications:
Heating systems in residential and commercial buildings
Industrial equipment cooling
Solar water heating systems
Boiler circulation systems
Technical Specifications:
Flow Rate: Up to 3.4 m³/h
Head: Up to 8 meters
Pressure: Up to 10 bar
Ambient Temperature: 0℃~40℃
Ambient Humidity: 95%
Liquid Temperature: -10℃~110℃
Motor: Copper-wound with thermal protection
Shaft Material: Ceramic
Bearing Material: Ceramic
Impeller Material: Polypropylene
Connection: Flange mount
Voltage and Frequency: Customizable (50Hz or 60Hz)

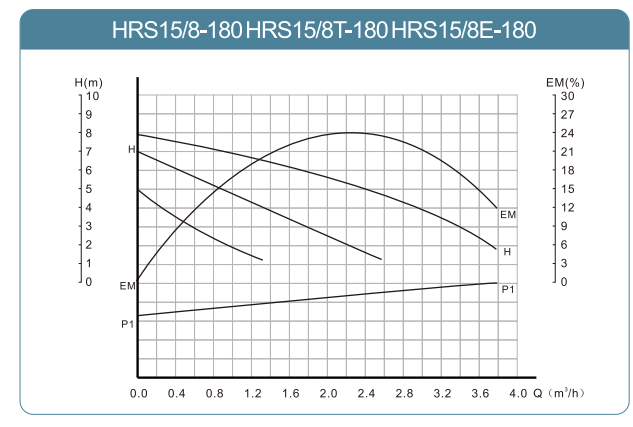

Performance Curves :
Technical Data :
| Model | Max.Flow | Max.Head | Voltage | Material of pump body | Dimension(mm) | Weight | |||||||
| (m³/h) | (m) | 220V/ 50Hz | 220V/ 60Hz | 127V/ 60Hz | Cast Iron | Brass | Stainless steel | L | B | H | G | (Kg) | |
| HRS15/8-180 | 3.4/2.4/1.2 | 8/7/5 | ★ | ★ | ★ | ★ | 180 | 127 | 159 | 1" | 3.3 | ||
| HRS15/8T-180 | 3.3 | ||||||||||||
| HRS15/8E-180 | 3.3 | ||||||||||||
Installation Dimension :
