HRS40/8GF Series Ceramic Shaft Circulation Pump with Flange for Heating System

Power (W) : 270/220/150

Max. flow (m³/h) : 9.6/6.2/2.6

Max. head (m) : 8/7.5/6.5
Ceramic shaft

with Flange for Heating System

PREV：HGR Seires Ceramic Bearing Circulation Pump with Flange
NEXT：No next product

Description
Components
Curves
Performance Data
Contact Us

Product Description:

Introducing the HRS40/8GF Series, a high-performance ceramic shaft circulation pump designed for robust and reliable operation in heating systems. This pump is engineered to deliver exceptional performance with a flow rate of up to 40,000 m³/h and a head of up to 8 meters, making it ideal for a variety of heating applications.

Key Features:

Durable Ceramic Shaft: The HRS40/8GF Series boasts a ceramic shaft that offers unparalleled durability and resistance to wear, ensuring a long service life even in the most demanding conditions.
Flange Mounting: Equipped with a flange for easy installation, this pump can be seamlessly integrated into existing heating systems, simplifying maintenance and reducing downtime.
High-Temperature Tolerance: With the ability to handle temperatures ranging from -40°C to 180°C, the HRS40/8GF Series is suitable for a wide range of heating applications, including those with high-temperature demands.
Efficient Operation: The pump's PP (Polypropylene) impeller and ceramic bearings contribute to its high efficiency and low-noise operation, making it an environmentally friendly choice for heating systems.
Safety and Protection: The HRS40/8GF Series is equipped with a copper-wound motor and an integrated thermal protector, ensuring safe and reliable operation.
Customizable Options: Available with various cable lengths and plug options, as well as the option for a brass flow meter, this pump can be tailored to fit specific system requirements.
Global Compatibility: With the ability to provide pumps with different voltage and frequency options (50Hz or 60Hz), the HRS40/8GF Series is suitable for use in multiple countries and regions.
Warranty: Backed by a 1-year warranty, the HRS40/8GF Series offers peace of mind and confidence in the quality and reliability of your heating system's circulation pump.

Applications:

Heating systems in residential and commercial buildings
Industrial equipment cooling
Solar water heating systems
Boiler circulation systems

Technical Specifications:

Flow Rate: Up to 40,000 m³/h
Head: Up to 8 meters
Pressure: Up to 10 bar
Temperature Range: -40°C to 180°C
Motor: Copper-wound with thermal protection
Shaft Material: Ceramic
Bearing Material: Ceramic
Impeller Material: Polypropylene
Connection: Flange mount
Voltage and Frequency: Customizable (50Hz or 60Hz)

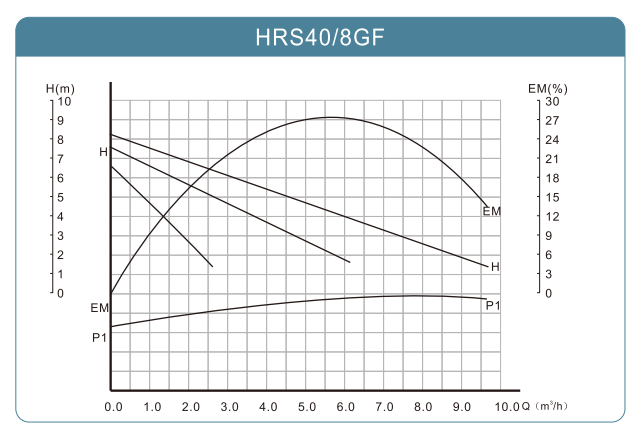

Performance Curves :

Performance Data :

Model	Power	Max. Flow	Max. Head	Voltage			Pump Dimension (mm)				Flange Dimension (mm)				Weight (kg)
Model	W	(m³/h)	(m)	220V/50Hz	220V/60Hz	127V/60Hz	L	B	H	G	D1	D2	D3	D4	Weight (kg)
HRS40/8GF	270	9.6	8	★	★	★	200	147	166	2”	93	90.5	12	64	5.9
HRS40/8GF	220	6.2	7.5	★	★	★	200	147	166	2”	93	90.5	12	64	5.9
HRS40/8GF	150	2.6	6.5	★	★	★	200	147	166	2”	93	90.5	12	64	5.9
