HGZ15/45EA-A Series Energy Saving Self-suction Intelligent Adaptive VFD Permanent Magnet Booster Pump

Power : 600W

Self-suction function

Memory function

Temperature control
Constant voltage automatic function

Hot and cold water
Booster and circulation models

PREV：HGZ15/35EA-B Silent WIFI Water Cooled Frequency Conversion Permanent Magnet Intelligent Shield Booster Pump
NEXT：ITCPM-A/B Series Stainless Steel Impeller Adaptive Low Noise High Pressure Booster Pump

Description
Components
Curves
Performance Data
Contact Us

Description ：

The HGZ15/45EA-A series energy-saving self-priming intelligent adaptive VFD permanent magnet booster pump is a cutting-edge pump product that combines advanced technology with excellent performance. It has the characteristics of low noise, compact structure and easy installation, making it an ideal choice for various applications.

Key Feature ：

Energy-saving permanent magnet and VFD technology: Adopts high-efficiency permanent magnet motor and variable frequency drive to optimize energy consumption and reduce operating costs.
Self-priming function: enables the pump to absorb water quickly and efficiently, even when initial water filling is required.
Intelligent adaptive control: automatically adjusts its performance according to actual water demand to ensure stable pressure and flow.
Shielded design: Unlike traditional cooling methods, the shielded structure reduces noise to below 55db in full-load working mode, eliminating the risk of water pump leakage.
Temperature control start and stop: operates in a cycle mode based on temperature control, and automatically starts and stops according to the set temperature.
Intelligent memory: learns and records your usage patterns, operates according to your habits, and saves energy and is environmentally friendly.
Water-cooled design: The water-cooled motor effectively dissipates heat, ensuring optimal performance even at high ambient temperatures and extending the service life of the pump.
Intelligent dual control: Equipped with intelligent flow and pressure control functions, the parameters can be precisely adjusted to meet continuous water pressure and flow requirements.
Hot and cold water compatibility: It can handle hot and cold water at the same time, integrating boosting and circulation.
Comprehensive protection: including stall protection, undervoltage protection, temperature abnormality reminder, waterless operation protection, water leakage protection, etc.
High-quality SENSATA sensors and switches: ensure accurate testing, reliable operation, intelligent and stable.

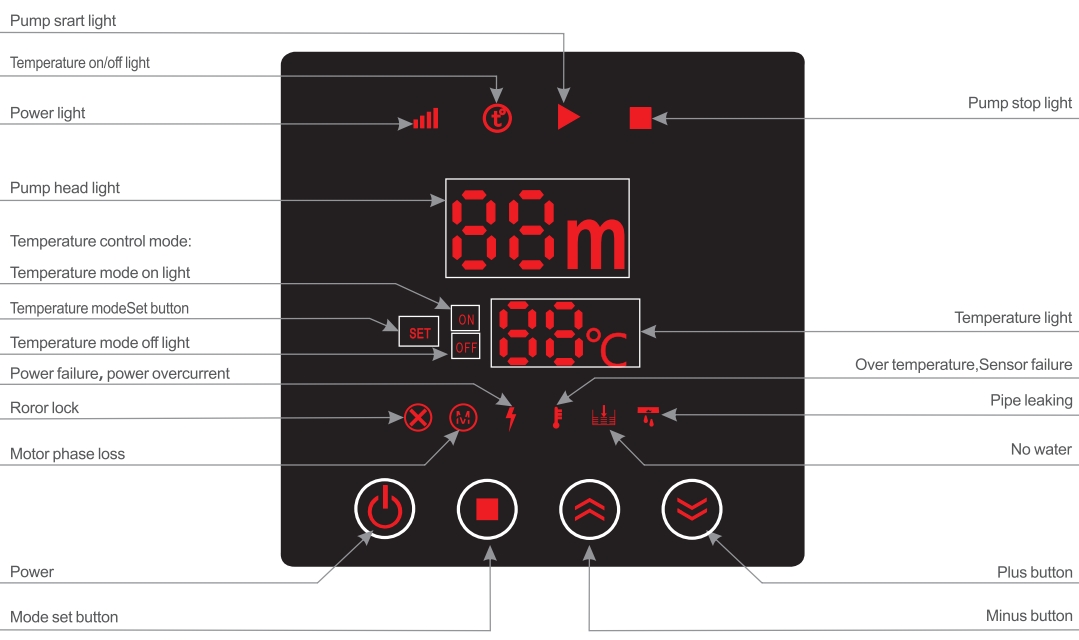

Operation Interface :

Part and Material :

Part	Material
Stator winding	Copper wire + silicon steel sheet
Rotor	Ceramic + silicon steel sheet
Pump body	SUS 304
Impeller	PPO
Check valve	Brass

Dimension :

Connection:

Installation:

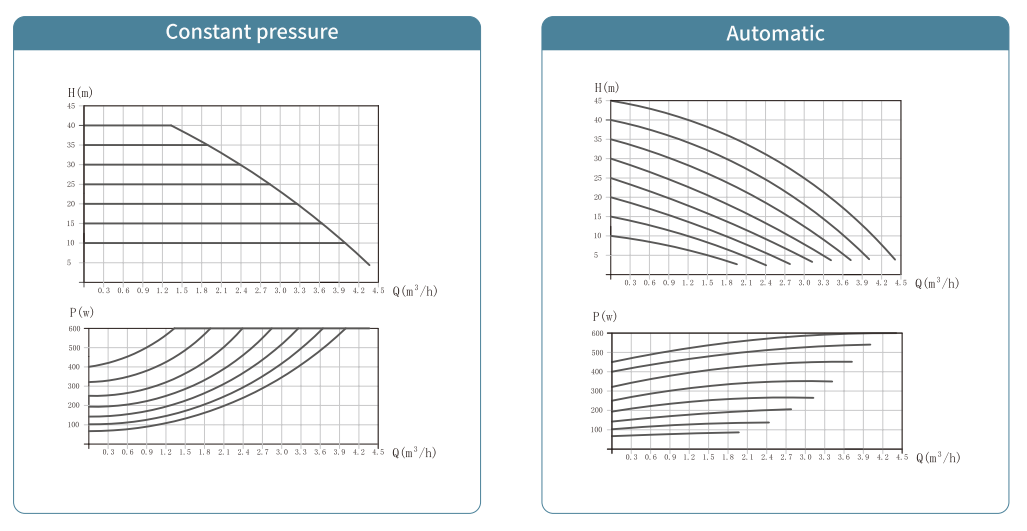

Performance Curves :

Performance Data:

Model	Connection size（Inch）	Power (W)	Rated flow （m³/h）	Rated head （m）	Max.head （m）	Max.suction （m）
HGZ15/45EA-A	1”	600	0.8	25	45	8
