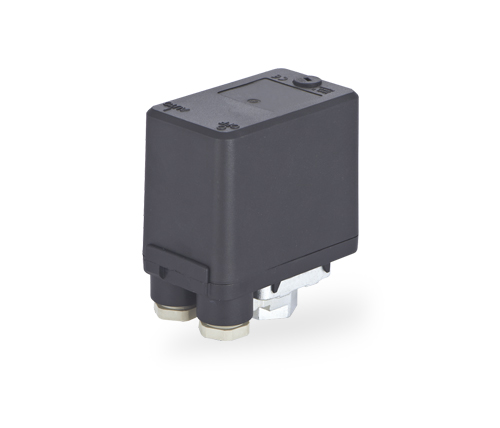

ERS-8 Series One-phase or Three-phase Easy to Install Rust Resistant Thread Pressure Switch for Water Systems

One-phase or Three-phases
Easy to Install
Rust Resistant Thread
Pressure Switch for Water Systems

Pressure range : 1-6BAR , 6-12BAR

Rated Voltage : One-phase or Three-phase

Rated Current : 16 (20) A

PREV：ERS-1 Series Low Noise Mechanical Pressure Switch Uesd in Water Pumps
NEXT：ERQ-3 Series Automatically Delayed Closing System Pressure Switch for Air Compressors

Description
Components
Curves
Performance Data
Contact Us

Description :

The ERS-8 Series One-phase or Three-phase Easy to Install Rust Resistant Thread Pressure Switch is a specialized pressure switch designed for water systems. This pressure switch is versatile, allowing for use with both one-phase and three-phase electrical systems. It is designed for easy installation and features rust-resistant threads for durability.

Key Features :

1、The ERS-8 Series pressure switch is compatible with both one-phase and three-phase electrical systems, providing flexibility in its application. This makes it suitable for a wide range of water systems, regardless of the electrical setup.
2、The pressure switch is designed for easy installation, allowing for quick and hassle-free setup in water systems. This feature saves time and effort during installation, ensuring a smooth integration into the water system.
3、The rust-resistant threads of the pressure switch enhance its durability and longevity. The threads are designed to withstand exposure to water and prevent corrosion, ensuring reliable performance even in wet environments.
4、The pressure switch is responsible for monitoring the pressure in the water system. When the pressure drops below a certain threshold, the switch will activate the system to maintain or restore the desired pressure. Once the pressure reaches the desired level, the switch will deactivate the system, preventing over-pressurization and potential damage.
5、The ERS-8 Series pressure switch is commonly used in various water systems, including residential, commercial, and industrial applications, where easy installation and rust resistance are desired.
6、1 year warranty
7、The switch automatically starts and stops the water pump based on the preset pressure setting.
8、The hydraulic connection option includes 1/4" male and 3/8" female.
9、Customization of settings is available.

Options :

Hydraulics connection according to customers’needs.

Pressure setting according to customers’needs.

Technical Data :

Rated voltage	110-240V / 400V
Rated current	20(16)A
Min.cut-in	1BAR
Max.cut-out	12BAR
Pressure range	1-6BAR , 6-12BAR
Screw	1/4" ; 3/8"
Protection Rating	IP44
Max. Working Temperature	55℃
