Power : 250W to 450W
Low Noise

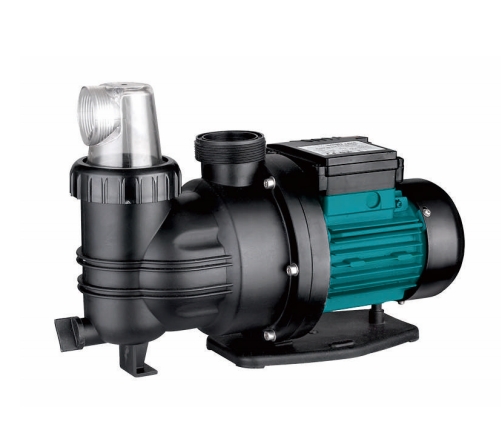

Swimming Pool Pump
for Water Circulation and Filtration System
Introducing the EXKP Series, a range of low noise swimming pool pumps designed for efficient water circulation and filtration. Engineered to provide a tranquil poolside environment, these pumps are the epitome of performance and quiet operation, ensuring your pool water stays clean and clear without disturbing the peace.
Mainly used for water circulation & filtration systems, such as :
※ Hot springs
※ Small and medium-sized swimming pools
※Water treatment systems
※ Land scape fountains
※Light industries
Motor :
※ Insulation Class F
※ Protection lPX5
※ Integrated pre-filter
※ Quiet operation
※ Thermal protector for single phase
Operating Conditions :
※ Liquid temperature up to 35°C
※ Ambient temperature up to 30°C
※ Total suction up to 3m
|
Components |
Construction |
|
Pump body |
Techno-polymer |
|
Pump support |
Aluminum |
|
Motor housing |
Aluminum |
|
Impeller |
Techno-polymer |
|
Motor shaft |
AISI304 SS |
|
Mechanical seal |
Ceramic/Graphite |
|

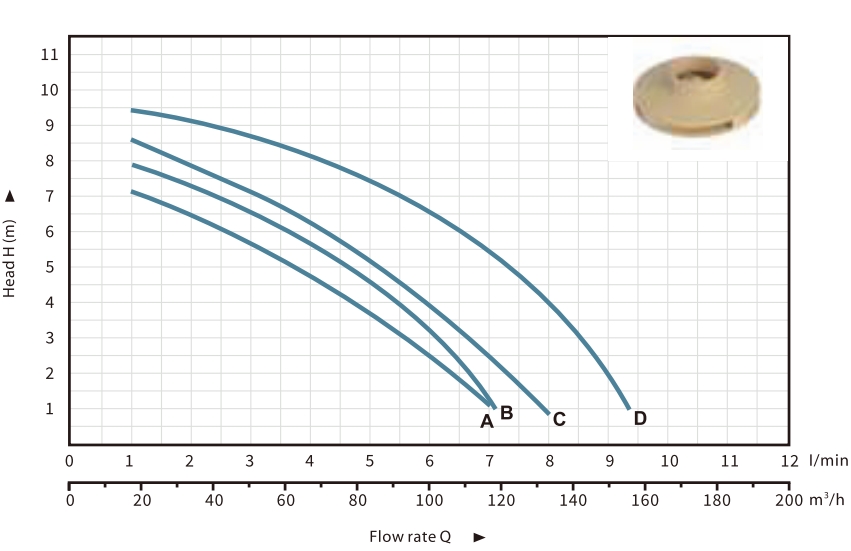

NO. |
Model |
Power |
Max. Flow |
Max. Head |
Inlet / Outlet |
|
W |
(m³/h) |
(M) |
(mm) |
||
|
A |
EXKP-250/2 |
250 |
7 |
7.5 |
40/40 |
|
B |
EXKP-300/2 |
300 |
7 |
8.5 |
40/40 |
|
C |
EXKP-350/2 |
350 |
8.5 |
9 |
40/40 |
|
D |
EXKP-450/2 |
450 |
9.5 |
10 |
40/40 |
