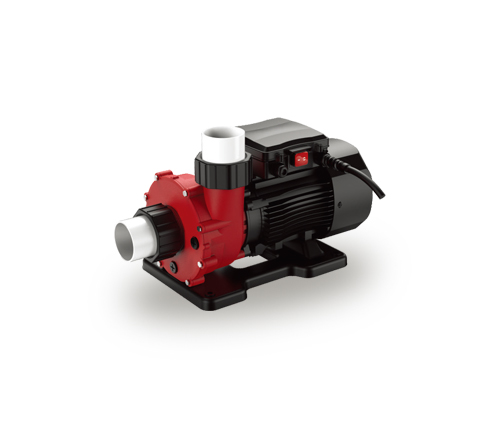

HSTP Series Anti-corrosion Anti-leak Heat Resistance Sea Raw Water Marine Pump

Anti-corrosion
Anti-leak
Heat Resistance
Sea Raw Water Marine Pump

PREV：220V 380V HSPP Series 316SS BUT Bearing Fine Processing Swimming Pool Pump with Sand Filter
NEXT：HSSP750-3000 Series 316SS Shaft Heat Dissipation UV Sterilizer Swimming Pool Pump

Description
Components
Curves
Performance Data
Contact Us

Description :

The HSTP Series Anti-corrosion Anti-leak Heat Resistance Sea Raw Water Marine Pump is a specialized pump designed for marine applications where sea raw water needs to be pumped. This pump is specifically engineered to withstand the harsh conditions of seawater, including its corrosive nature, high temperatures, and potential leaks.

One of the key features of the HSTP Series pump is its anti-corrosion properties. It is constructed using corrosion-resistant materials such as stainless steel or titanium, which can withstand the corrosive effects of seawater over an extended period. This ensures the longevity and durability of the pump, even in marine environments.

Additionally, the pump is designed to be leak-proof. It incorporates advanced sealing mechanisms and gaskets to prevent any leakage of seawater, which could be detrimental to the surrounding equipment and systems. This feature ensures the safe and efficient operation of the pump, minimizing the risk of damage or accidents.

The HSTP Series pump also offers excellent heat resistance capabilities. It is designed to handle the high temperatures that can occur in marine environments, ensuring that the pump operates reliably and efficiently even under extreme conditions.

Furthermore, this marine pump is specifically engineered for sea raw water applications. It is designed to handle the unique characteristics of seawater, including its salinity, suspended solids, and potential contaminants. The pump's impeller and other components are optimized to handle these conditions, ensuring efficient pumping and minimizing the risk of clogging or damage.

Overall, the HSTP Series Anti-corrosion Anti-leak Heat Resistance Sea Raw Water Marine Pump is a reliable and durable solution for marine applications that require the pumping of seawater. Its anti-corrosion properties, leak-proof design, heat resistance, and suitability for sea raw water make it an ideal choice for marine vessels, offshore platforms, and other marine installations.

Components and Materials :

Components	Materials
Nut tightening tool	PA reinforced nylon（ PA）
Cap nut	ABS
Clear cover	PC
filter tank	PP
inlet/outlet	PVC
Inlet and outlet nut	ABS
pump body	PA reinforced nylon （PA）
outfall screw	reinforced polypropylene（PP)
base	reinforced polypropylene(PP)
guide vane	reinforced nylon PA（only 2.2kw）
impeller	reinforced PPO
mechanical seal	SB-16 fluororubber +316 spring Silicon carbide + graphite
waterproof sheet	reinforced nylon PA66
motor casing	aluminium alloy
front bearing	aluminium alloy
stator & rotor	Hitachi standard cold rolling 600#
shaft	316SS stainless steel & 40Cr tempered steel combination
rear bearing	BUT6303
Seal	Main sealing ring: fluororubber
Seal	Secondary sealing ring: nitrile

Additional fittings
Front and rear motor seal	DUPONT fluororubber+DAIKIN teflon patch combination
Switch & Thermal protector	S11 Current overload protector +30A switch
Front and rear waterproof ring	Fluorine paper gasket

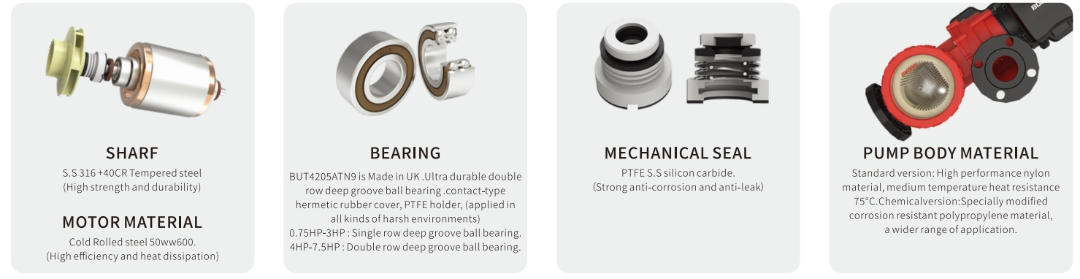

Core parts :

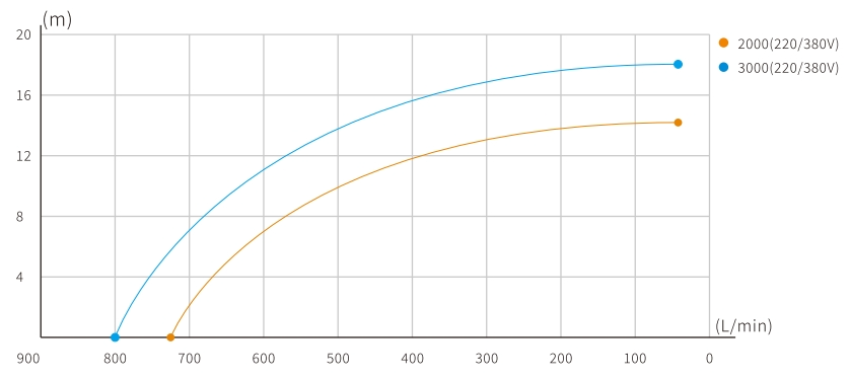

Hydraulic Performance Curves :

Technical Data :

Model	Power	Input power	Max. Flow	Max. Head
Model	( hp )	( kw )	( l/min)	( m )
HSTP-2000 ( 220 / 380V )	2	1.5	720	15
HSTP-3000 ( 220 / 380V )	3	2.2	800	18
