The ADCPM Series AC/DC Environmental Protection Solar Centrifugal Pump ,a high-performance pump, is specifically engineered to meet the demands of modern farming, ensuring optimal efficiency and productivity. With its advanced features and superior functionality, this pump is set to become an indispensable tool for farmers worldwide.
1.Brushless Non-senor Motor : With its advanced brushless motor technology, this pump delivers high efficiency and low maintenance, making it an ideal choice for remote locations where power supply is limited.
2.MPPT performance : With its advanced MPPT technology, this pump ensures maximum power extraction from solar panels, resulting in higher water flow rates and improved overall performance
3.Special Mechanical Seal : Our Special Mechanical Seal is specifically engineered to withstand the demanding conditions of borehole pumping.
4.Low / Over-voltage Protection : With its advanced low/over-voltage protection feature, this pump ensures safe and stable operation even in challenging environments.

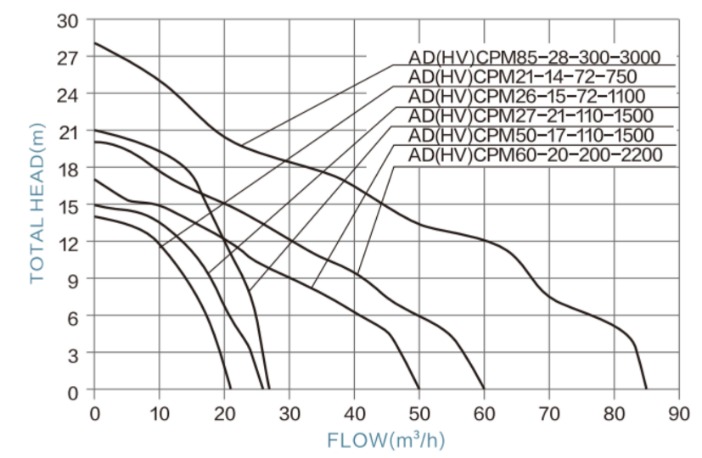

| ITEM | (AC) Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage(VOC) |
Solar panel - Power |
| ADCPM21-14-72-750 | 85V-280V | 100V-350V | 750W | 21m³/h | 14m | 2" | 0.6m | <450V | ≥1.3*PUMP POWER |
| ADCPM26-15-72-1100 | 85V-280V | 100V-350V | 1100W | 26m³/h | 15m | 2" | 0.6m | <450V | ≥1.3*PUMP POWER |
| ADCPM27-21-110-1500 | 85V-280V | 110V-350V | 1500W | 27m³/h | 21m | 2" | 0.6m | <450V | ≥1.3*PUMP POWER |
| ADCPM50-17-110-1500 | 85V-280V | 110V-350V | 1500W | 50m³/h | 17m | 3" | 0.6m | <450V | ≥1.3*PUMP POWER |
| ADCPM60-20-200-2200 | 85V-280V | 200V-350V | 2200W | 60m³/h | 20m | 4" | 0.6m | <450V | ≥1.3*PUMP POWER |
| ADCPM85-28-300-3000 | 85V-280V | 300V-350V | 3000W | 85m³/h | 28m | 5" | 0.6m | <450V | ≥1.3*PUMP POWER |
