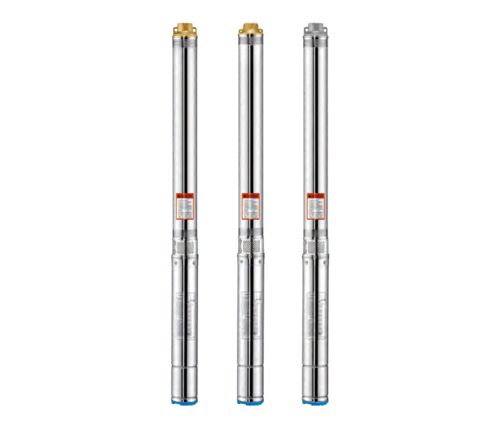

3SDM4 3" Energy-saving Anti-corrosive Copper Core Motor Borehole Submersible Pump
View All Products
en
This innovative pump is specifically engineered to provide efficient and reliable water supply in remote areas where electricity is scarce or unreliable. With its advanced technology and superior performance, this pump is a game-changer in the field of water pumping systems. With its small occupation of land, high machine barrel design, sand-resistant impeller, and submersible operation, this pump provides reliable and efficient performance in borehole applications with limited space and sand content.
Applications :
Provides water supply from wells or reservoirs for various use cases.
Caters to domestic, civil, and industrial applications with stable performance.
Supports garden maintenance and agricultural irrigation operations efficiently.
1. Multi-stage impeller : This pump is equipped with a multi-stage impeller, a device that increases the pressure of the fluid going through the pump. This allows the pump to draw water from significant depths, resulting in high efficiency.This innovative design allows for enhanced water flow, ensuring optimal efficiency and reducing energy consumption. Whether you require water for agricultural purposes, residential use, or industrial applications, our pump delivers exceptional results.
Operating Conditions:
Maximum fluid temperature up to +35℃
Maximum sand content : 0.25%
Minimum well diameter : 3"
Equip with start control box or digital auto-control box
Single-phase: 220-240V/50Hz or Three-phase: 380-415V/50Hz compatibility
Pumps are designed by casing stressed
Curve tolerance according to ISO 9903
Options on request :
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
(according to our general sales conditions)
CE Certification :
|
Materials Table |
||
|
NO. |
Part |
Material |
|
1 |
Pump external casing |
Stainless Steel |
|
2 |
Delivery casing |
|
|
3 |
Suction lantern |
|
|
4 |
Diffuser |
|
|
5 |
Impeller |
Plastic.POM |
|
6 |
Pump shaft |
AISI 304 SS |
|
7 |
Shaft coupling |
AISI 304 SS |
|
8 |
Wear ring |
AISI 304 SS |
|
9 |
Motor external casing |
Stainless Steel |
|
10 |
Oil chamber |
1. Cast-Cu ASTM C85500 2. Cast-iron ASTM NO.30 3. Aluminium alloy |
|
11 |
Bottom support |
AISI 304 SS |
|
12 |
Mechanical Seal |
Special seal for deep well (Graphite-Ceramic/TC) |
|
13 |
Seal lubricant oil |
Oil for food machinery and pharmaceutic use |
|
14 |
Motor shaft |
AISI 303 SS-ASTM 5140 |


|

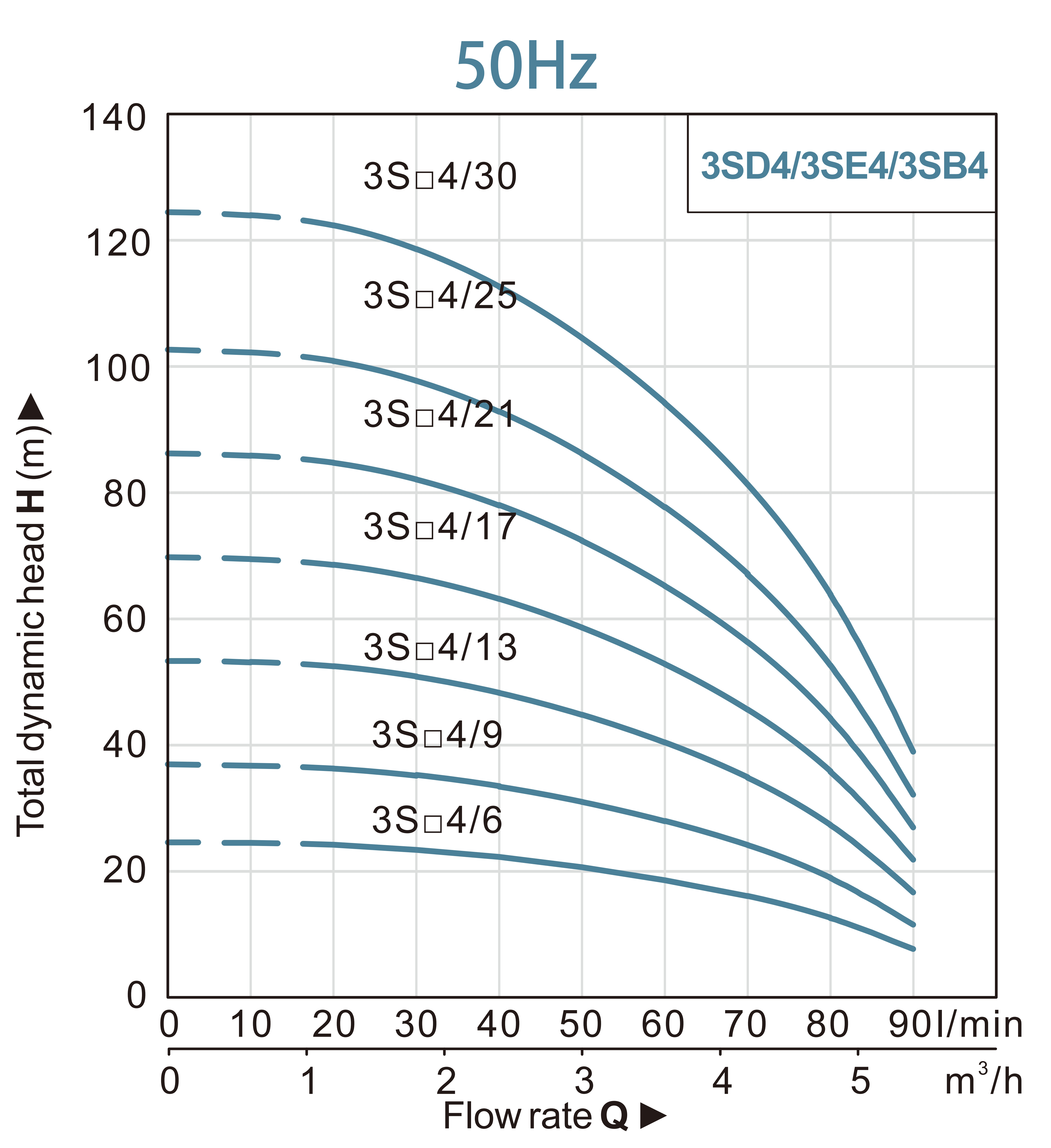

Model |
Power |
Delivery n≈2850 r/min |
||||||||||||
|
1~220-240V |
3~380-415V |
KW |
HP |
Q(m³/h) |
0 |
0.6 |
1.2 |
1.8 |
2.4 |
3.0 |
3.6 |
4.2 |
4.8 |
5.4 |
|
Q(l/min) |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
||||
|
3S□M4/6 |
- |
0.25 |
0.33 |
H(m) |
25 |
25 |
24 |
23 |
22 |
21 |
19 |
16 |
13 |
8 |
|
3S□M4/9 |
- |
0.37 |
0.5 |
37 |
37 |
36 |
35 |
33 |
32 |
28 |
24 |
19 |
12 |
|
|
3S□M4/12 |
3S□4/13 |
0.55 |
0.75 |
53 |
53 |
52 |
51 |
48 |
45 |
40 |
35 |
27 |
17 |
|
|
3S□M4/16 |
3S□4/17 |
0.75 |
1 |
70 |
70 |
69 |
66 |
63 |
59 |
53 |
46 |
36 |
22 |
|
|
3S□M4/20 |
- |
0.92 |
1.25 |
86 |
86 |
85 |
82 |
78 |
72 |
65 |
56 |
44 |
27 |
|
|
3S□M4/24 |
3S□4/25 |
1.1 |
1.5 |
103 |
102 |
101 |
98 |
93 |
86 |
78 |
67 |
53 |
32 |
|
|
3S□M4/28 |
3S□4/30 |
1.5 |
2 |
123 |
123 |
121 |
117 |
111 |
103 |
93 |
80 |
63 |
39 |
|
3S□ in the above table can be replaced by any of 3SD,3SE,3SB
|

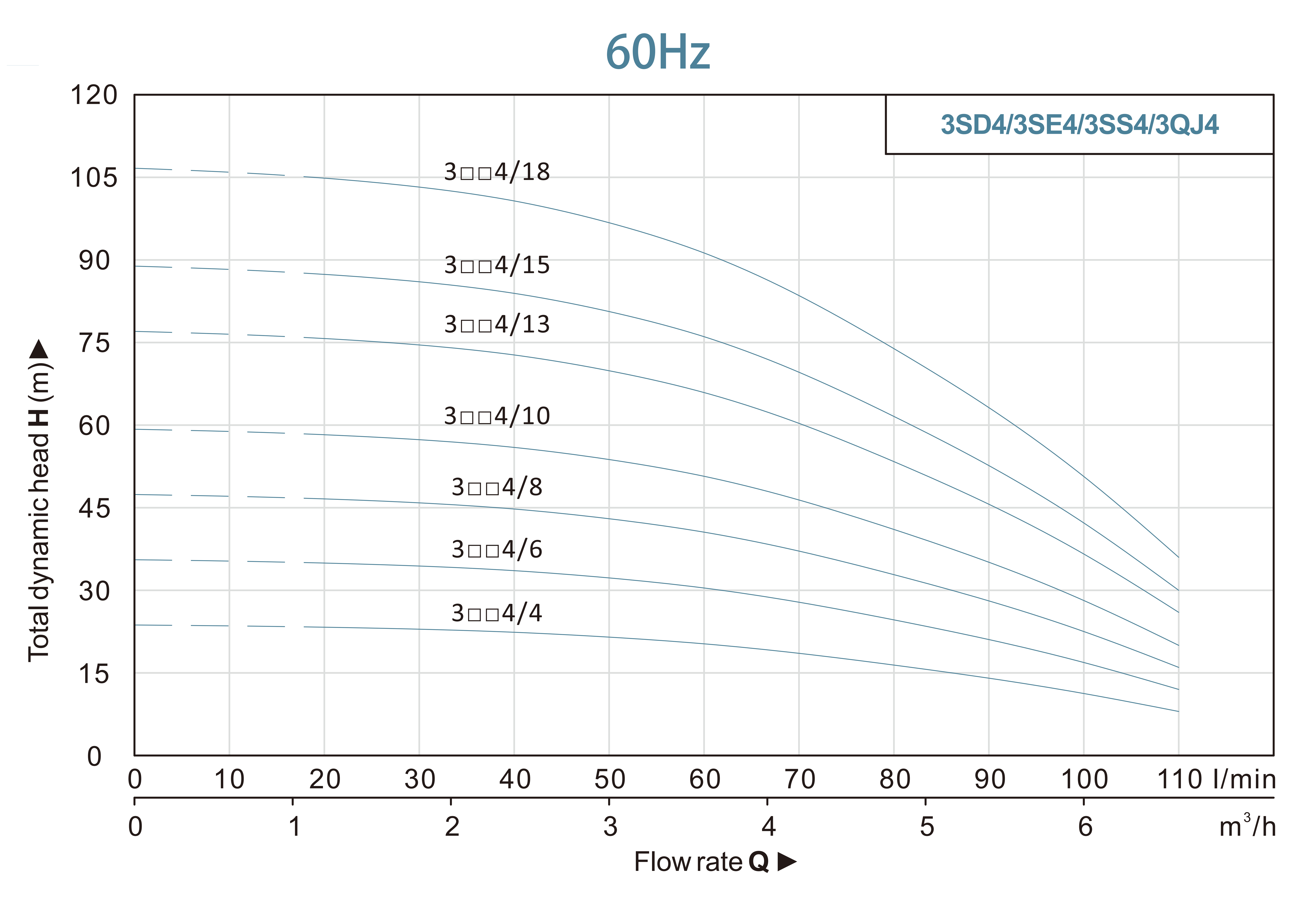

Model |
Power |
Delivery n≈3450r/min |
||||||||||||||
|
1~110V/220V |
3~220V/380V |
KW |
HP |
Q(m³/h) |
0 |
0.6 |
1.2 |
1.8 |
2.4 |
3.0 |
3.6 |
4.2 |
4.8 |
5.4 |
6.0 |
6.6 |
|
Q(l/min) |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
||||
|
3□□M4/4 |
3□□4/4 |
0.25 |
0.33 |
H(m) |
24 |
24 |
23 |
23 |
23 |
22 |
20 |
19 |
16 |
14 |
11 |
8 |
|
3□□M4/6 |
3□□4/6 |
0.37 |
0.5 |
36 |
35 |
35 |
35 |
34 |
32 |
31 |
28 |
25 |
21 |
17 |
12 |
|
|
3□□M4/8 |
3□□4/8 |
0.55 |
0.75 |
48 |
47 |
47 |
46 |
45 |
43 |
41 |
37 |
33 |
28 |
23 |
16 |
|
|
3□□M4/10 |
3□□4/10 |
0.75 |
1 |
59 |
59 |
58 |
58 |
57 |
54 |
51 |
47 |
41 |
35 |
28 |
19 |
|
|
3□□M4/13 |
3□□4/13 |
0.92 |
1.25 |
77 |
77 |
76 |
75 |
74 |
70 |
66 |
61 |
53 |
46 |
37 |
25 |
|
|
3□□M4/15 |
3□□4/15 |
1.1 |
1.5 |
89 |
88 |
88 |
87 |
85 |
81 |
77 |
70 |
62 |
53 |
43 |
29 |
|
|
3□□M4/18 |
3□□4/18 |
1.5 |
2 |
107 |
106 |
105 |
104 |
102 |
97 |
92 |
84 |
74 |
63 |
51 |
35 |
|
3□□ in the above table can be replaced by any of 3SD,3SE,3SS,3QJ
