3SDM6 0.33HP to 2HP Submersible Manual Deep Well Water Pump

Name: 3SDM6 0.33HP to 2HP Submersible Manual Deep Well Water Pump
Rating: 5 (99 reviews)

Minimum well diameter : 3"

Power : 0.25KW/0.33HP-1.5KW/2HP

Max Head : 79m

Rated capacity : 6m³/h

PREV：2.5SDM1.5 Series Stainless Steel Deep Well Pump with Control Box
NEXT：3.5SDM5 3.5SDM6 Series Submersible Deep Well Water Pump

Description
Components
Curves
Performance Data
Contact Us

Description :

Introducing the 3SDM6 series, a robust and reliable submersible deep well water pump designed for a variety of applications, from domestic water supply to industrial and agricultural use. This manual deep well water pump is engineered to deliver optimal performance and longevity, ensuring a consistent water supply in various conditions.

Applications :

Provides water supply from wells or reservoirs for various use cases.

Caters to domestic, civil, and industrial applications with stable performance.

Supports garden maintenance and agricultural irrigation operations efficiently.

Key Features :

1. Multi-stage impeller : This pump is equipped with a multi-stage impeller, a device that increases the pressure of the fluid going through the pump. This allows the pump to draw water from significant depths, resulting in high efficiency.This innovative design allows for enhanced water flow, ensuring optimal efficiency and reducing energy consumption. Whether you require water for agricultural purposes, residential use, or industrial applications, our pump delivers exceptional results.
2. Stainless steel end construction : The pump is made of robust stainless steel, which offers excellent corrosion and rust resistance. This construction material ensures the pump's longevity even in wet or humid conditions.This high-quality material ensures resistance against corrosion, making it suitable for various water sources, including boreholes. With its robust construction, this pump is built to withstand the test of time, providing you with a reliable water pumping solution for years to come.

Operating Conditions:

Maximum fluid temperature up to +35℃
Maximum sand content : 0.25%
Minimum well diameter : 3"

Motor and Pump :

Equip with start control box or digital auto-control box

Single-phase: 220-240V/50Hz or Three-phase: 380-415V/50Hz compatibility

Pumps are designed by casing stressed

Curve tolerance according to ISO 9903

Options on request :

Special mechanical seal

Other voltages or frequency 60Hz

Single phase motor with built-in capacitor

Warranty : 2 years

(according to our general sales conditions)

CE Certification :

Components and Materials :

Materials Table
NO.	Part	Material
1	Pump external casing	Stainless Steel
2	Delivery casing	Cast-Cu ASTM C85500 AISI 304 SS
3	Suction lantern	Cast-Cu ASTM C85500 AISI 304 SS
4	Diffuser	Plastic.PC
5	Impeller	Plastic.POM
6	Pump shaft	AISI 304 SS
7	Shaft coupling	AISI 304 SS
8	Wear ring	AISI 304 SS
9	Motor external casing	Stainless Steel
10	Oil chamber	Cast-Cu ASTM C8550 Cast-iron ASTM NO.30 Aluminium alloy
11	Bottom support	AISI 304 SS
12	Mechanical Seal	Special seal for deep well (Graphite-Ceramic/TC)
13	Seal lubricant oil	Oil for food machinery and pharmaceutic use
14	Motor shaft	AISI 304 SS-ASTM 5140

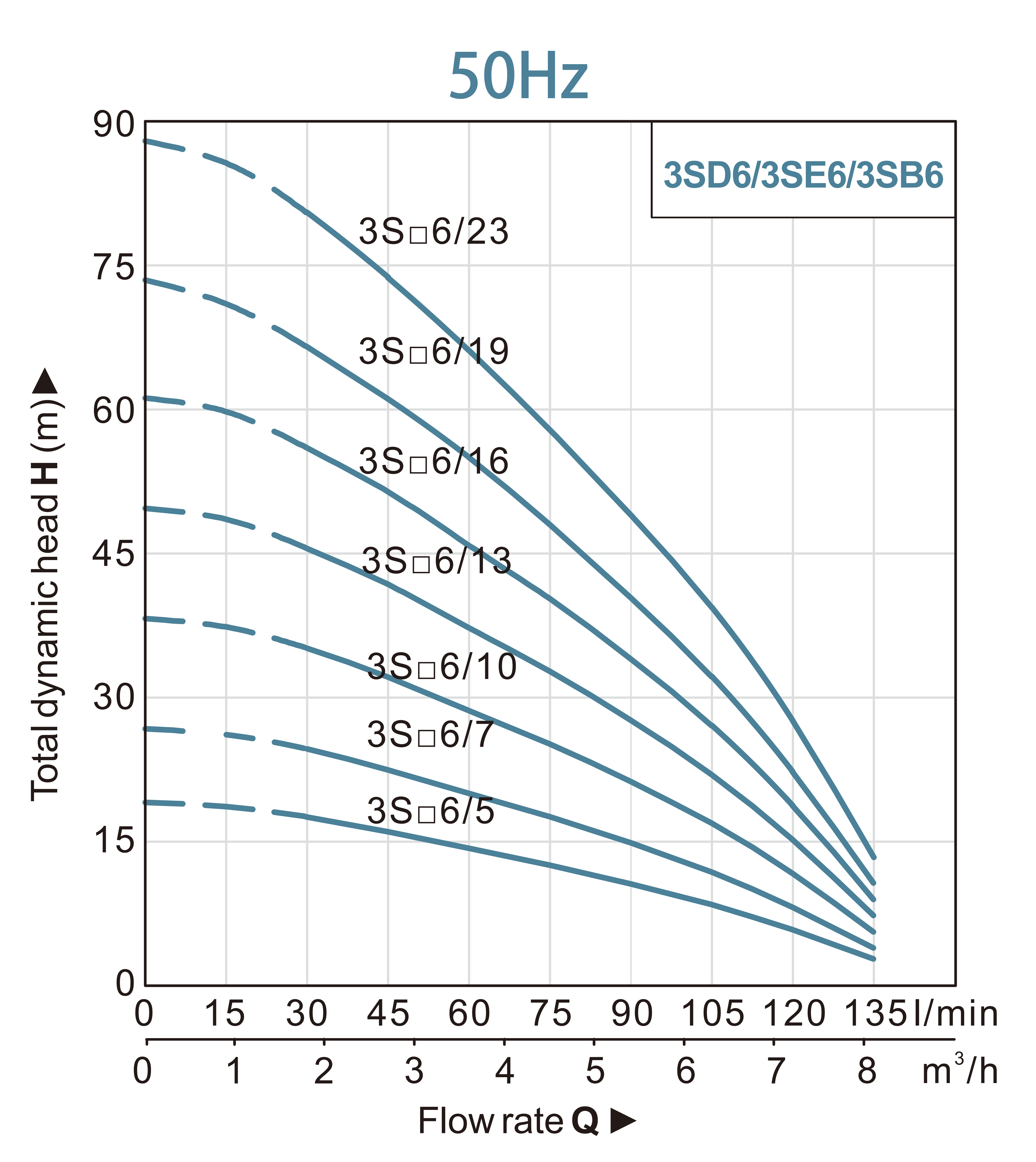

Performance Curves :

Technical Data ( 50Hz ) :

Model		Power		Delivery n≈2850r/min
1~220-240V	3~380-415V	KW	HP	Q(m³/h)	0	0.9	1.8	2.7	3.6	4.5	5.4	6.3	7.2	8.4
1~220-240V	3~380-415V	KW	HP	Q(l/min)	0	15	30	45	60	75	90	105	120	135
3S□M6/5	-	0.25	0.33	H(m)	19	18	17	16	15	13	8	9	5	3
3S□M6/7	-	0.37	0.5		27	26	24	22	20	18	12	12	8	4
3S□M6/10	3S□6/10	0.55	0.75		38	37	34	31	29	25	16	17	11	5
3S□M6/13	3S□6/13	0.75	1		50	49	45	41	38	33	22	23	14	7
3S□M6/16	-	0.92	1.25		61	60	55	50	47	40	28	28	17	8
3S□M6/19	3S□6/19	1.1	1.5		73	71	65	59	55	48	34	33	21	10
3S□M6/23	3S□6/23	1.5	2		88	86	79	72	67	58	40	40	25	12

3S□ in the above table can be replaced by any of 3SD,3SE,3SB
