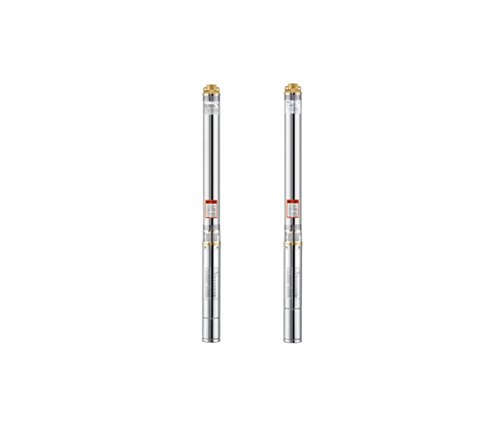

Introducing the 2.5SDM1.5 series, a robust and reliable stainless steel deep well pump designed for a variety of applications, from home and garden use to industrial and agricultural needs. This multistage submersible pump is engineered for performance and durability, ensuring efficient water extraction from deep wells.
-For water supply from wells or reservoirs
-For domestic use,for civil and industrial applications
-For garden use and irrigation

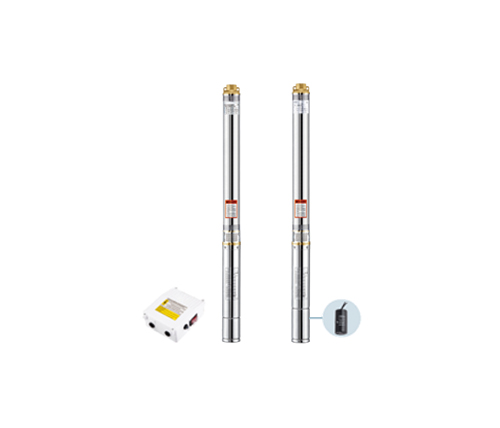

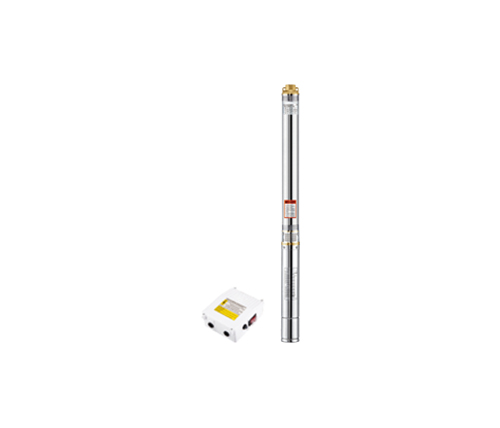

-Equip with start control box or digital auto-control box
-Pumps are designed by casing stressed
-Curve tolerance according to lS09903
1、Special mechanical seal
2、Other voltages or frequency 60Hz

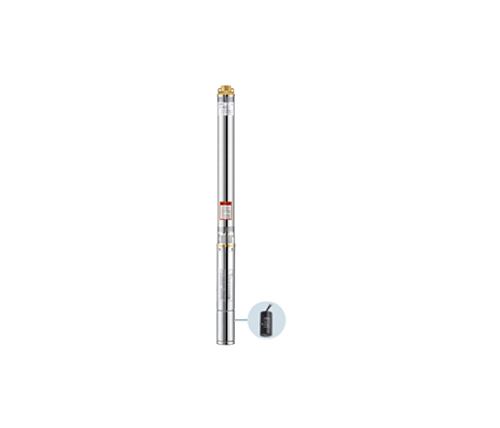

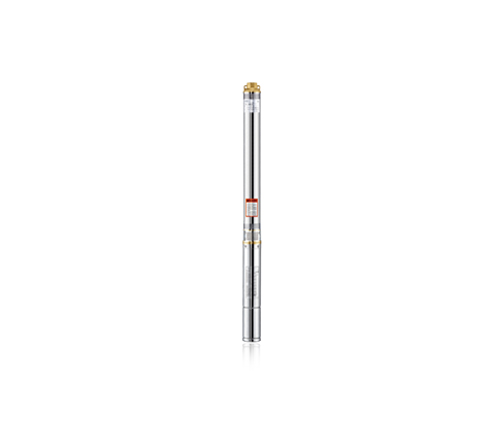

3、Single-phase motor equipped with an integrated capacitor.
|
Components |
Material |
|
Pump external casing |
AISI 304 SS |
|
Delivery casing |
Cast-Cu ASTM C85500 |
|
Suction lantern |
Cast-Cu ASTM C85500 |
|
Diffuser |
Plastic.PC |
|
Impeller |
Plastic.POM |
|
Shaft |
AISI 304 SS |
|
Shaft coupling |
AISI 304 SS |
|
Wear ring |
AISI 304 SS |
|
Motor external casing |
AISI 304 SS |
|
Oil Chamber |
®Cast-Cu ASTM C85500 |
|
②Cast-iron ASTM NO.30 |
|
|
Bottom support |
AISI 304 SS |
|
Mechanical seal |
Special seal for deep well(Graphite-Ceramic/TC) |
|
Shaft |
AISI 304 SS-ASTM 5140 |
|
Seal lubricant oil |
Oil for food machinery and pharmaceutic use. |
|

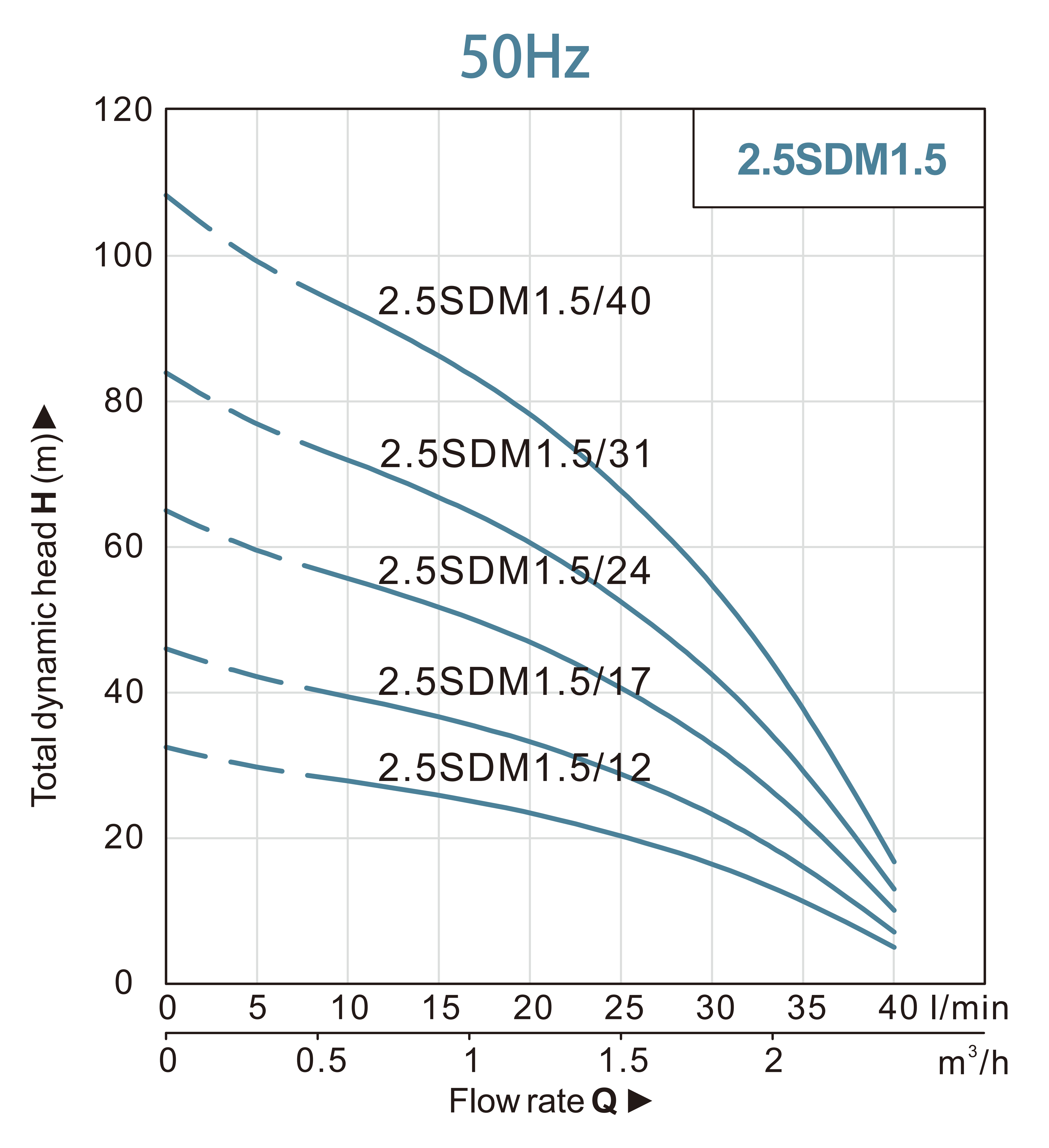

Model |
Power |
Deliver |
|||||||||||
|
1~220V-240V |
KW |
HP |
Q(m³/h) |
0 |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
2.7 |
|
Q(l/min) |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
|||
|
2.5SDM1.5/12 |
0.18 |
0.25 |
H(m) |
33 |
30 |
28 |
26 |
23 |
20 |
17 |
11 |
5 |
- |
|
2.5SDM1.5/17 |
0.25 |
0.33 |
46 |
42 |
39 |
37 |
33 |
29 |
24 |
16 |
7 |
- |
|
|
2.5SDM1.5/24 |
0.37 |
0.5 |
65 |
60 |
56 |
52 |
46 |
40 |
33 |
22 |
10 |
- |
|
|
2.5SDM1.5/31 |
0.55 |
0.75 |
84 |
77 |
72 |
67 |
60 |
52 |
43 |
29 |
13 |
- |
|
|
2.5SDM1.5/40 |
0.75 |
1 |
108 |
99 |
93 |
87 |
77 |
67 |
55 |
37 |
17 |
- |
|
