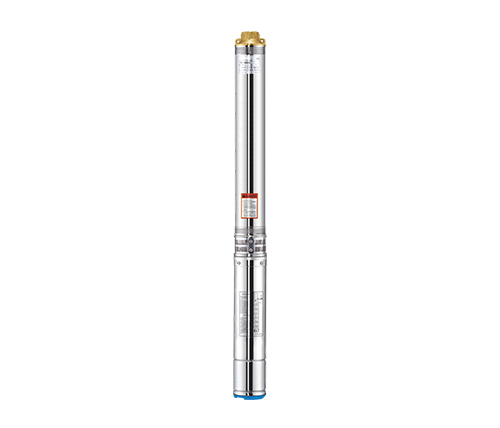

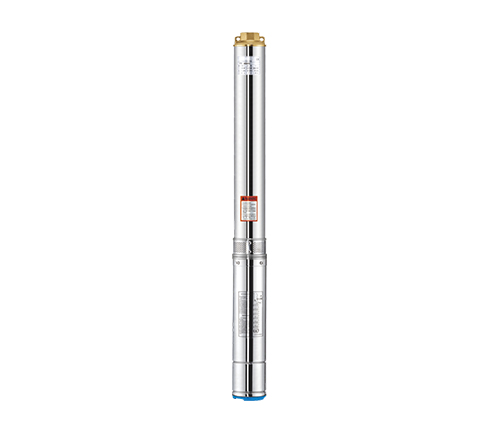

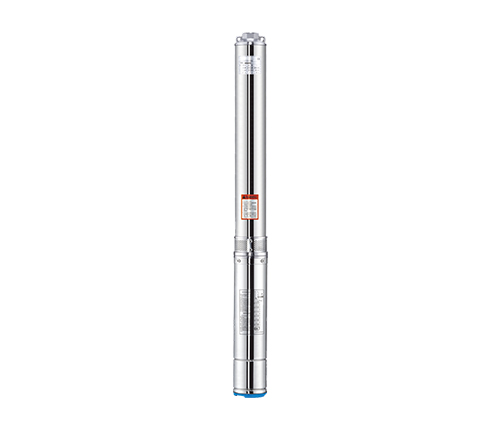

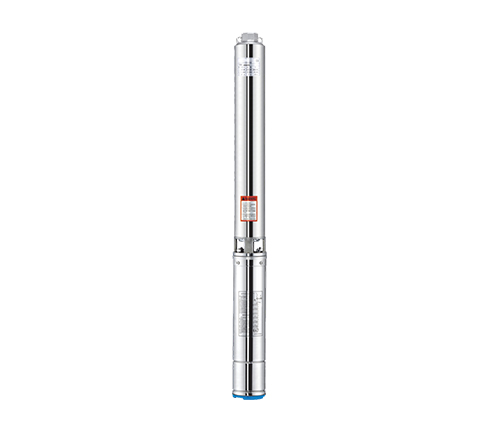

Name: 4SDM4 4' Thermal Protection High Speed Balanced Rotor Convenient Borehole Submersible Pump for Sewage Treatment
Rating: 5 (99 reviews)

Description :

4SDM4 4" Thermal Protection High Speed Balanced Rotor Convenient Borehole Submersible Pump for Sewage Treatment is designed to provide reliable and efficient performance, making it an ideal choice for deep well applications. Crafted with precision and care, this submersible deep well pump is built to last.

Applications :

Provides water supply from wells or reservoirs for various use cases.

Caters to domestic, civil, and industrial applications with stable performance.

Supports garden maintenance and agricultural irrigation operations efficiently.

Key Features :

1、It features a high-speed balanced rotor that ensures smooth and stable operation, while the 4sdm4 thermal protection system prevents overheating and damage to the motor.
2、With its robust construction and advanced features, this submersible water pump is the perfect choice for demanding applications.
3、Crafted with precision and care, this submersible deep well pump is built to last. It features a high-speed balanced rotor that ensures smooth and stable operation, while the 4sdm4 thermal protection system prevents overheating and damage to the motor. With its robust construction and advanced features, this submersible water pump is the perfect choice for demanding applications.
4、It delivers a powerful flow rate and can handle a wide range of liquids, including sewage and wastewater.

Motor and Pump:

Reversible motor

Single-phase: 220-240V/50Hz or Three-phase: 380-415V/50Hz compatibility

Equipped with a start control box or digital auto-control box

Pumps are designed with casing stress analysis

Curve tolerance complies with ISO 9906 requirements

Operating Conditions:

Maximum fluid temperature up to +35℃
Maximum sand content : 0.25%
Minimum well diameter : 4"

Options on request :

Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor

Warranty : 2 years

(according to our general sales conditions)

CE Certificate :

Components :

Components	Material
Pump external casing	Stainless Steel
Delivery casing	①Cast-Cu ASTM C85500②AISI 304 SS
Suction lantern	①Cast-Cu ASTM C85500②AISI 304 SS
Diffuser	Plastic.PC
Impeller	Plastic.POM
Shaft	AISI 304 SS
Shaft coupling	AISI 304 SS
Wear ring	AISI 304 SS
Motor external casing	Stainless Steel
Oil chamber	①Cast-Cu ASTM C85500 ②AISI 420 SS
Oil chamber	③Cast-iron ASTM NO.30
Bottom support	AISI 304 SS
Mechanical seal	Special seal for deep well(Graphite-Ceramic/TC)
Shaft	AISI 304 SS-ASTM 5140
Seal lubricant oil	Oil for food machinery and pharmaceutic use.

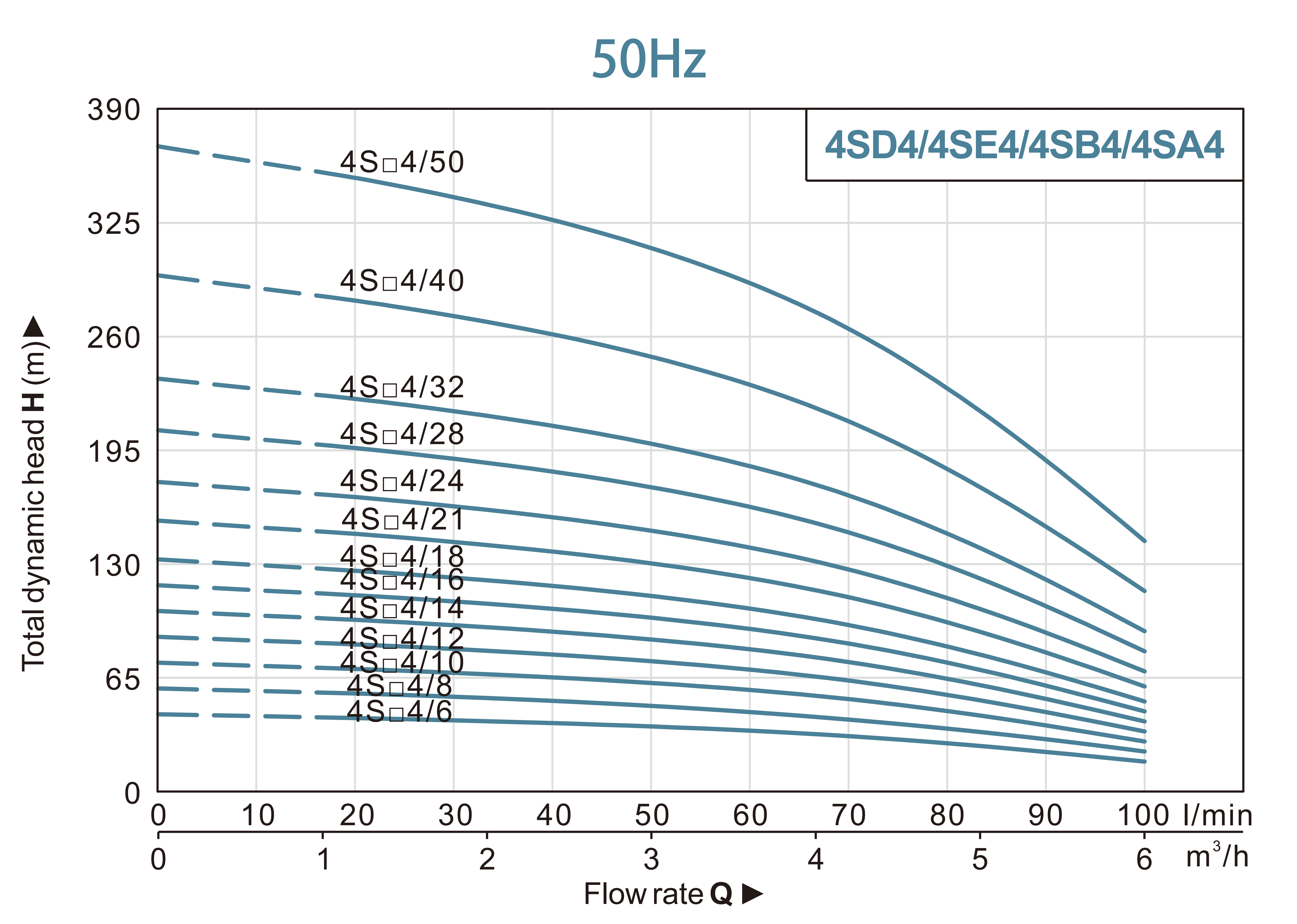

Performance Curves :

Technical Data ( 50Hz ) :

Model		Power		Delivery n≈2850r/min
1~220-240V	3~380-415V	KW	HP	Q(m³/h)	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0
1~220-240V	3~380-415V	KW	HP	Q(l/min)	0	10	20	30	40	50	60	70	80	90	100
4S□M4/6	-	0.37	0.5	H(m)	44	43	41	40	39	37	36	32	28	23	17
4S□M4/8	4S□4/8	0.55	0.75		59	57	55	54	52	49	47	42	37	30	23
4S□M4/10	4S□4/10	0.75	1		74	71	69	67	65	61	59	53	46	38	29
4S□M4/12	-	0.92	1.25		88	86	82	81	78	74	71	63	56	45	34
4S□M4/14	4S□4/14	1.1	1.5		103	100	96	94	91	86	83	74	65	53	40
4S□M4/16	-	1.3	1.75		118	114	110	107	104	98	95	85	74	61	46
4S□M4/18	4S□4/18	1.5	2		132	129	123	121	117	111	107	95	84	68	51
4S□M4/21	-	1.8	2.5		155	150	144	141	136	129	124	111	97	79	60
4S□M4/24	4S□4/24	2.2	3		177	171	165	161	156	147	142	127	111	91	69
4S□M4/28	4S□4/28	2.6	3.5		206	200	192	188	182	172	166	148	130	106	80
4S□M4/32	4S□4/32	3	4		235	229	219	215	208	197	190	169	149	121	91
-	4S□4/40	3.7	5		294	286	274	269	260	246	237	211	186	151	114
-	4S□4/50	4	5.5		368	357	343	336	325	307	296	264	232	189	143

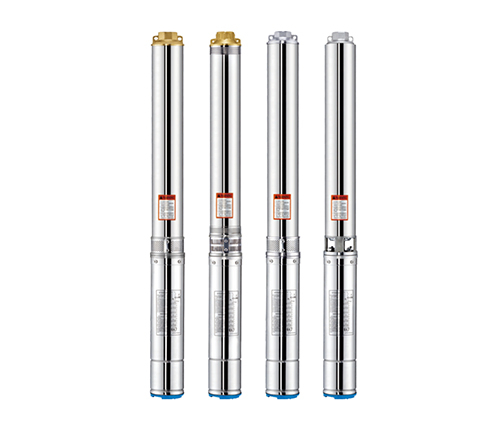

4S□ in the above table can be replaced by any of 4S□,4SE,4SB,4SA

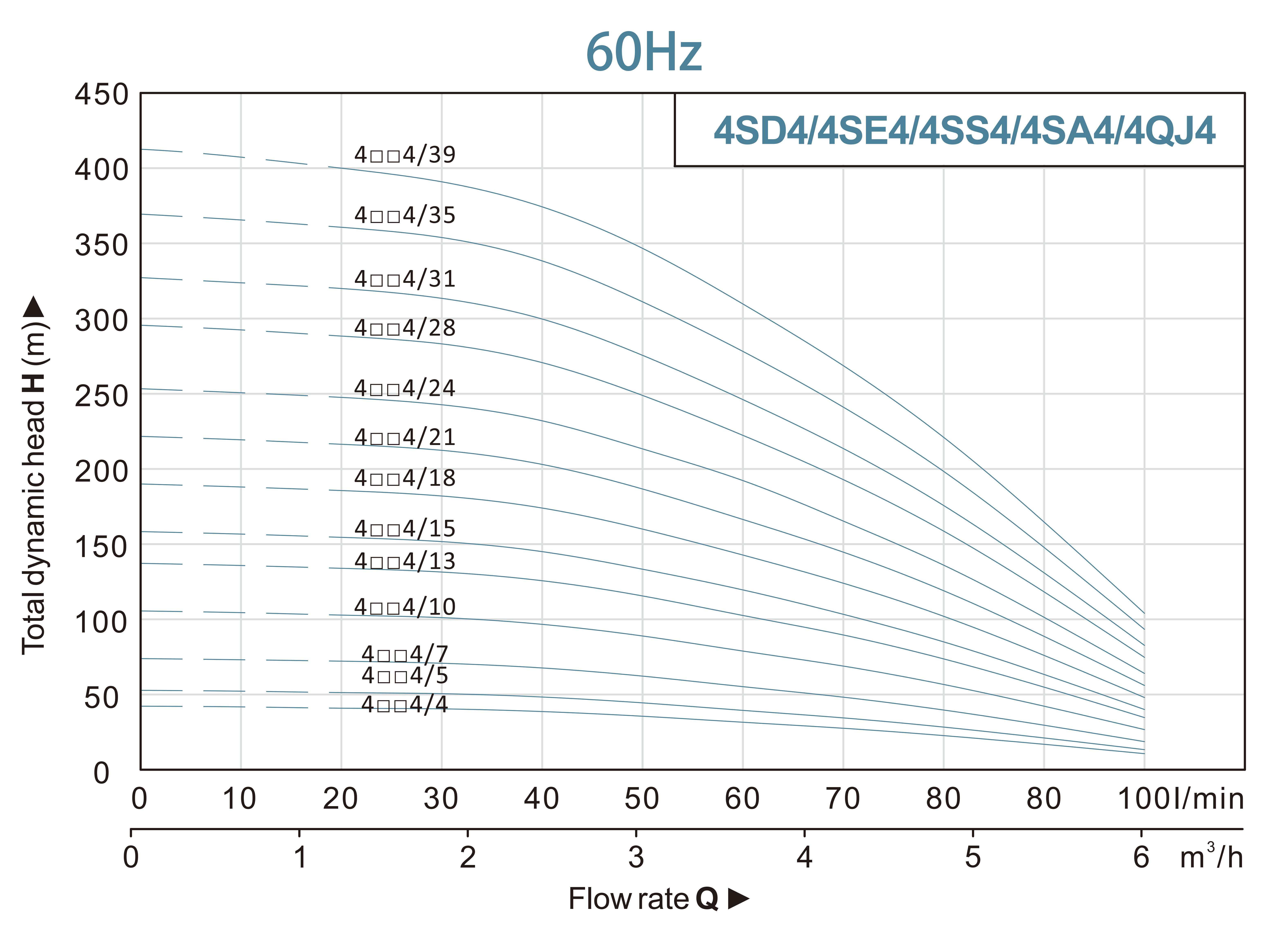

Technical Data ( 60Hz ) :

Model		Power		Delivery n≈3450r/min
1~110V/220V	3~220V/380V	KW	HP	Q(m³/h)	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0
1~110V/220V	3~220V/380V	KW	HP	Q(l/min)	0	10	20	30	40	50	60	70	80	90	100
4□□M4/4	4□□4/4	0.37	0.5	H(m)	42	42	40	40	38	36	32	28	23	17	11
4□□M4/5	4□□4/5	0.55	0.75		53	52	51	50	48	44	39	34	28	21	13
4□□M4/7	4□□4/7	0.75	1		74	73	71	70	67	62	55	48	40	30	19
4□□M4/10	4□□4/10	1.1	1.5		106	104	101	100	96	89	79	69	57	42	27
4□□M4/13	4□□4/13	1.5	2		137	136	131	130	124	116	103	90	74	55	35
4□□M4/15	4□□4/15	1.8	2.5		158	157	152	150	143	133	118	103	85	63	40
4□□M4/18	4□□4/18	2.2	3		190	188	182	180	172	160	142	124	102	76	48
-	4□□4/21	2.6	3.5		222	219	212	210	201	187	166	145	119	89	56
-	4□□4/24	3	4		253	251	243	240	229	213	189	165	136	101	64
-	4□□4/28	3.7	5		296	292	283	280	268	249	221	193	159	118	75
-	4□□4/31	4	5.5		327	324	313	310	296	276	245	214	176	131	83
-	4□□4/35	5	7		369	366	354	350	334	311	276	241	198	148	93
-	4□□4/39	5.5	7.5		412	407	394	390	373	347	308	269	221	165	104
