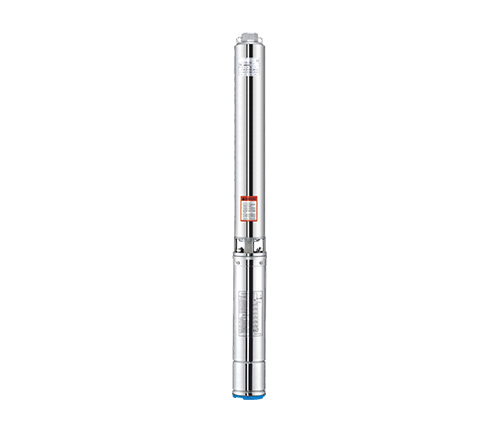

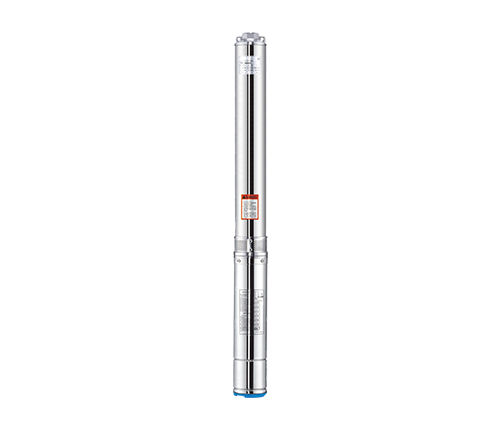

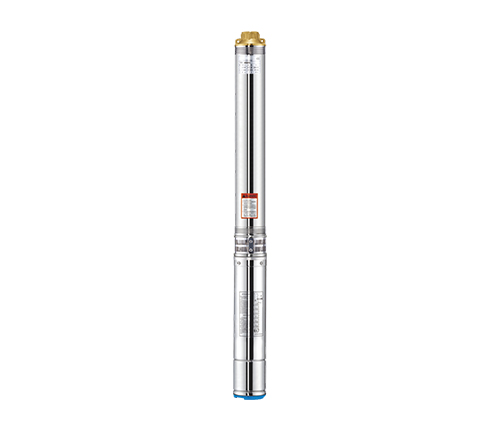

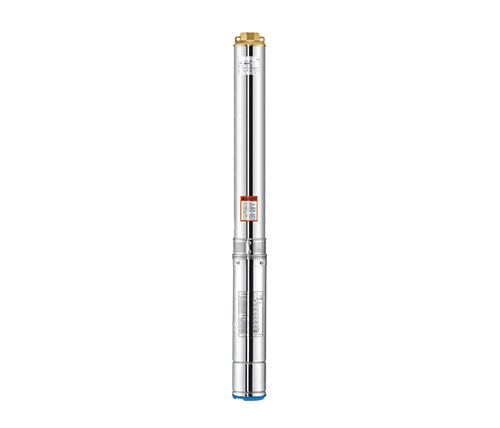

4SDM6 4SDM5 4" Energy Saving Well-adapted Borehole Submersible Pump for Construction of Drainage
View All Products
en
The 4SDM6/4SDM5 Energy Saving Well-adapted Borehole Submersible Pump is a powerful and efficient water pumping solution designed specifically for construction drainage applications. This pump is capable of handling large volumes of water and is well-suited for draining water from construction sites.With its energy-saving design, adaptability to various drainage scenarios, and durable construction, this pump provides reliable and efficient water pumping for construction projects.
Applications :
Provides water supply from wells or reservoirs for various use cases.
Caters to domestic, civil, and industrial applications with stable performance.
Supports garden maintenance and agricultural irrigation operations efficiently.
1、The energy-saving design of the 4SDM6/4SDM5 pump ensures efficient operation, reducing power consumption and minimizing energy costs. This is particularly important for construction projects where continuous drainage is required over an extended period.
Operating Conditions:
Maximum fluid temperature up to +35℃
Maximum sand content : 0.25%
Minimum well diameter : 4"
Rewindable electric motor
Single-phase: 220-240V/50Hz or Three-phase: 380-415V/50Hz
Equipped with a starting control box or a digital automatic control box
Pumps are designed with casings under stress
Complying with NEMA dimensional standards
Curve tolerance meets ISO 9906 requirements.
Options on request:
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty : 2 years
(according to our general sales conditions)

|
Components |
Material |
|
Pump external casing |
Stainless Steel |
|
Delivery casing |
①Cast-Cu ASTM C85500②AISI 304 SS |
|
Suction lantern |
①Cast-Cu ASTM C85500②AISI 304 SS |
|
Diffuser |
Plastic.PC |
|
Impeller |
1.Plastic.POM 2.Plastic.PPO |
|
Shaft |
AISI 304 SS |
|
Shaft coupling |
AISI 304 SS |
|
Wear ring |
AISI 304 SS |
|
Motor external casing |
Stainless Steel |
|
Oil chamber |
①Cast-Cu ASTM C85500 ②AISI 420 SS |
|
③Cast-iron ASTM NO.30 |
|
|
Bottom support |
AISI 304 SS |
|
Mechanical seal |
Special seal for deep well(Graphite-Ceramic/TC) |
|
Shaft |
AISI 304 SS-ASTM 5140 |
|
Seal lubricant oil |
Oil for food machinery and pharmaceutic use. |


|

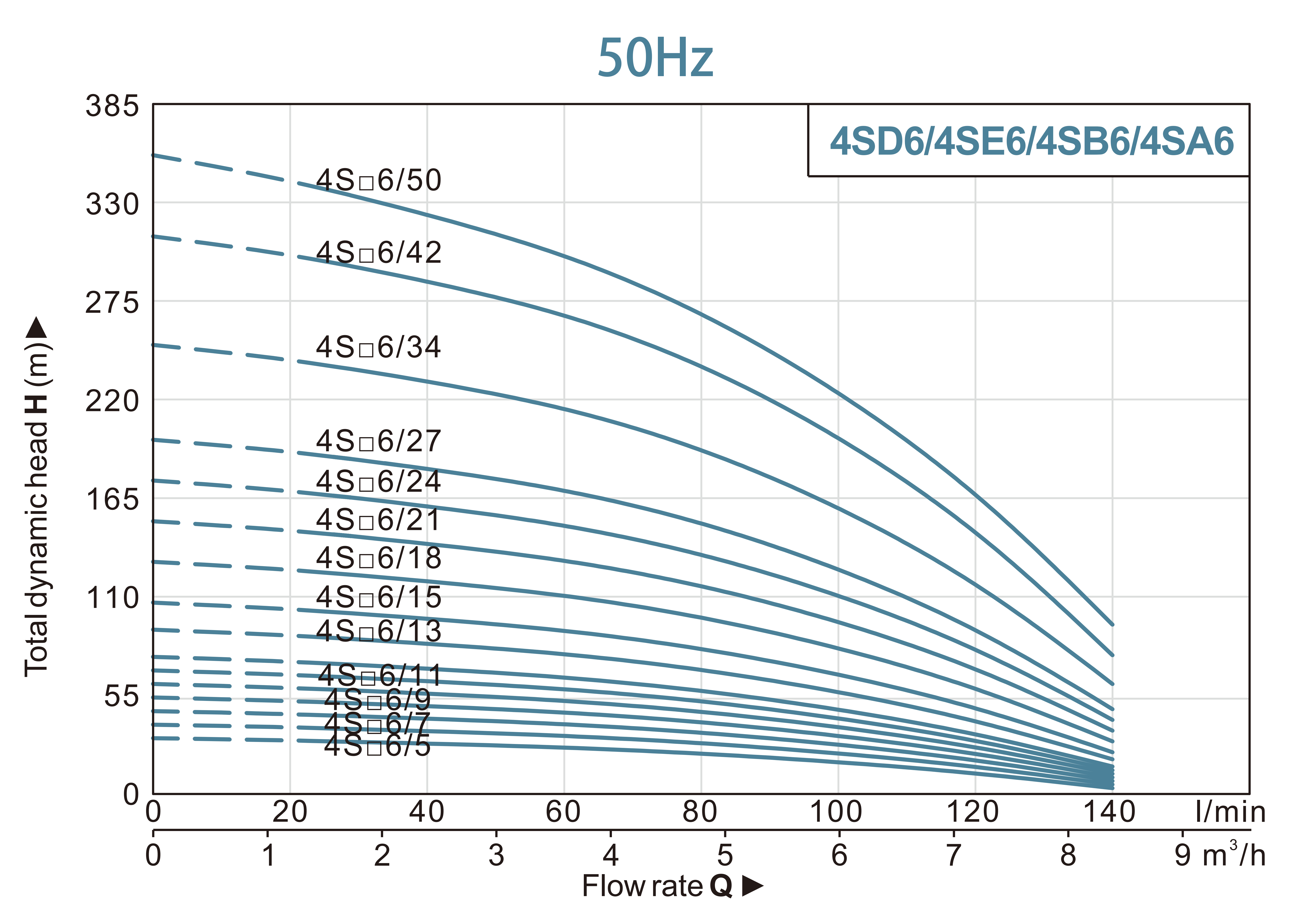

Model |
Power |
Delivery n≈2850 r/min |
||||||||||
|
1~220V-240V |
3~380V-415V |
KW |
HP |
Q(m³/h) |
0 |
1.2 |
2.4 |
3.6 |
4.8 |
6.0 |
7.2 |
8.4 |
|
Q(l/min) |
0 |
20 |
40 |
60 |
80 |
100 |
120 |
140 |
||||
|
4S□M6/5 |
- |
0.37 |
0.5 |
H(m)
|
36 |
35 |
33 |
31 |
28 |
23 |
17 |
10 |
|
4S□M6/6 |
4S□6/6 |
0.55 |
0.75 |
43 |
41 |
40 |
37 |
33 |
28 |
21 |
11 |
|
|
4S□M6/7 |
4S□6/7 |
0.75 |
1 |
50 |
48 |
46 |
43 |
39 |
32 |
24 |
13 |
|
|
4S□M6/8 |
4S□6/8 |
0.75 |
1 |
57 |
55 |
53 |
49 |
44 |
37 |
28 |
15 |
|
|
4S□M6/9 |
- |
0.92 |
1.25 |
65 |
62 |
60 |
56 |
50 |
42 |
31 |
17 |
|
|
4S□M6/10 |
4S□6/10 |
1.1 |
1.5 |
72 |
69 |
66 |
62 |
55 |
46 |
35 |
19 |
|
|
4S□M6/11 |
4S□6/11 |
1.1 |
1.5 |
79 |
76 |
73 |
68 |
61 |
51 |
38 |
21 |
|
|
4S□M6/13 |
- |
1.3 |
1.75 |
93 |
90 |
86 |
80 |
72 |
60 |
45 |
25 |
|
|
4S□M6/15 |
4S□6/15 |
1.5 |
2 |
108 |
104 |
100 |
93 |
83 |
70 |
52 |
29 |
|
|
4S□M6/18 |
- |
1.8 |
2.5 |
129 |
124 |
120 |
111 |
100 |
84 |
62 |
34 |
|
|
4S□M6/21 |
4S□6/21 |
2.2 |
3 |
151 |
145 |
139 |
130 |
116 |
97 |
72 |
40 |
|
|
4S□M6/24 |
4S□6/24 |
2.6 |
3.5 |
173 |
166 |
159 |
149 |
133 |
111 |
83 |
46 |
|
|
4S□M6/27 |
4S□6/27 |
3 |
4 |
194 |
186 |
179 |
167 |
150 |
125 |
93 |
51 |
|
|
- |
4S□6/34 |
4 |
5.5 |
244 |
235 |
226 |
210 |
189 |
158 |
117 |
65 |
|
|
- |
4S□6/42 |
5.5 |
7.5 |
302 |
290 |
279 |
269 |
233 |
195 |
145 |
80 |
|
|
- |
4S□6/50 |
7.5 |
10 |
359 |
345 |
332 |
309 |
277 |
232 |
173 |
95 |
|

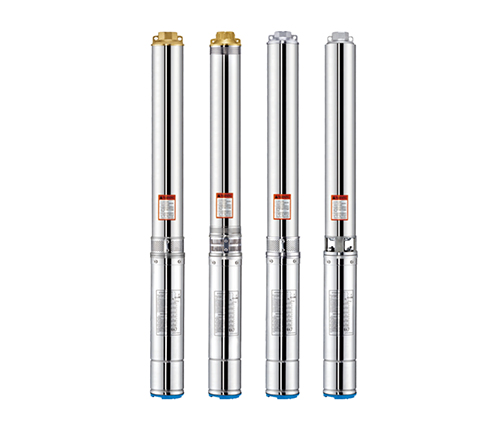

4S□ in the above table can be replaced by any of 4SD,4SE,4SB,4SA
| Model | Motor | Delivery n=3450r/min | |||||||||||
| 1~110/220V | 3~220/380V | KW | HP | Q(m³/h) Q(l/min) |
0 | 0.9 | 1.8 | 2.7 | 3.6 | 4.5 | 5.4 | 6.3 | 7.2 |
| 0 | 15 | 30 | 45 | 60 | 75 | 90 | 105 | 120 | |||||
| 4□□M5/3 | 4□□5/3 | 0.37 | 0.5 | H(m) | 32 | 30 | 29 | 28 | 26 | 23 | 18 | 14 | 9 |
| 4□□M5/4 | 4□□5/4 | 0.55 | 0.75 | 42 | 40 | 39 | 38 | 35 | 30 | 25 | 19 | 12 | |
| 4□□M5/6 | 4□□5/6 | 0.75 | 1 | 63 | 60 | 58 | 56 | 52 | 45 | 37 | 28 | 18 | |
| 4□□M5/8 | 4□□5/8 | 1.1 | 1.5 | 84 | 80 | 78 | 75 | 70 | 60 | 49 | 38 | 24 | |
| 4□□M5/11 | 4□□5/11 | 1.5 | 2 | 116 | 110 | 107 | 103 | 96 | 83 | 68 | 52 | 34 | |
| 4□□M5/13 | 4□□5/13 | 1.8 | 2.5 | 137 | 130 | 126 | 122 | 113 | 98 | 80 | 61 | 40 | |
| 4□□M5/16 | 4□□5/16 | 2.2 | 3 | 168 | 160 | 155 | 150 | 139 | 120 | 98 | 75 | 49 | |
| - | 4□□5/19 | 2.6 | 3.5 | 200 | 190 | 185 | 179 | 166 | 143 | 117 | 90 | 58 | |
| - | 4□□5/22 | 3 | 4 | 231 | 220 | 214 | 207 | 192 | 165 | 135 | 104 | 67 | |
| - | 4□□5/25 | 3.7 | 5 | 263 | 250 | 243 | 235 | 218 | 188 | 154 | 118 | 76 | |
| - | 4□□5/28 | 4 | 5.5 | 294 | 280 | 272 | 263 | 244 | 210 | 172 | 132 | 86 | |
| - | 4□□5/31 | 5 | 7 | 326 | 310 | 301 | 291 | 270 | 233 | 190 | 146 | 95 | |
| - | 4□□5/35 | 5.5 | 7.5 | 368 | 350 | 340 | 329 | 305 | 263 | 215 | 165 | 107 | |
4S□□ in the above table can be replaced by any of 4SD,4SE,4SS,4SA,4QJ
