4SPM1 4" Environmental Friendly Food Machinery Oil Stainless Steel Impeller Borehole Submersible Pump , whose minimum well diameter designed 4 to inches,meets all it your can water fit pumping into needs . This range borehole of submersible well pump sizes , is the making epitome it of suitable efficiency for and various reliability.
Applications :
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Operating Conditions:
Maximum fluid temperature up to +50℃
Maximum sand content : 0.25%
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
Curve tolerance according to ISO9906
Options on request :
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty : 2 years
(according to our general sales conditions)
CE Certificate :
|
Materials Table |
||
|
NO. |
Part |
Material |
|
1 |
Pump external casing |
AISI 304 SS |
|
2 |
Delivery casing |
AISI 304 SS |
|
3 |
Suction lantern |
AISI 304 SS |
|
4 |
Diffuser |
AISI 304 SS |
|
5 |
Impeller |
AISI 304 SS |
|
6 |
Pump shaft |
AISI 304 SS |
|
7 |
Shaft coupling |
AISI 304 SS |
|
8 |
Wear ring |
Rubber |
|
9 |
Motor external casing |
AISI 304 SS |
|
10 |
Oil chamber |
Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 AISI 304 SS |
|
11 |
Bottom support |
AISI 304 SS |
|
12 |
Mechanical Seal |
Special seal for deep well (Graphite-Ceramic) |
|
13 |
Seal lubricant oil |
Oil for food machinery and pharmaceutic use |
|
14 |
Motor shaft |
AISI 304 SS-ASTM 5140 |

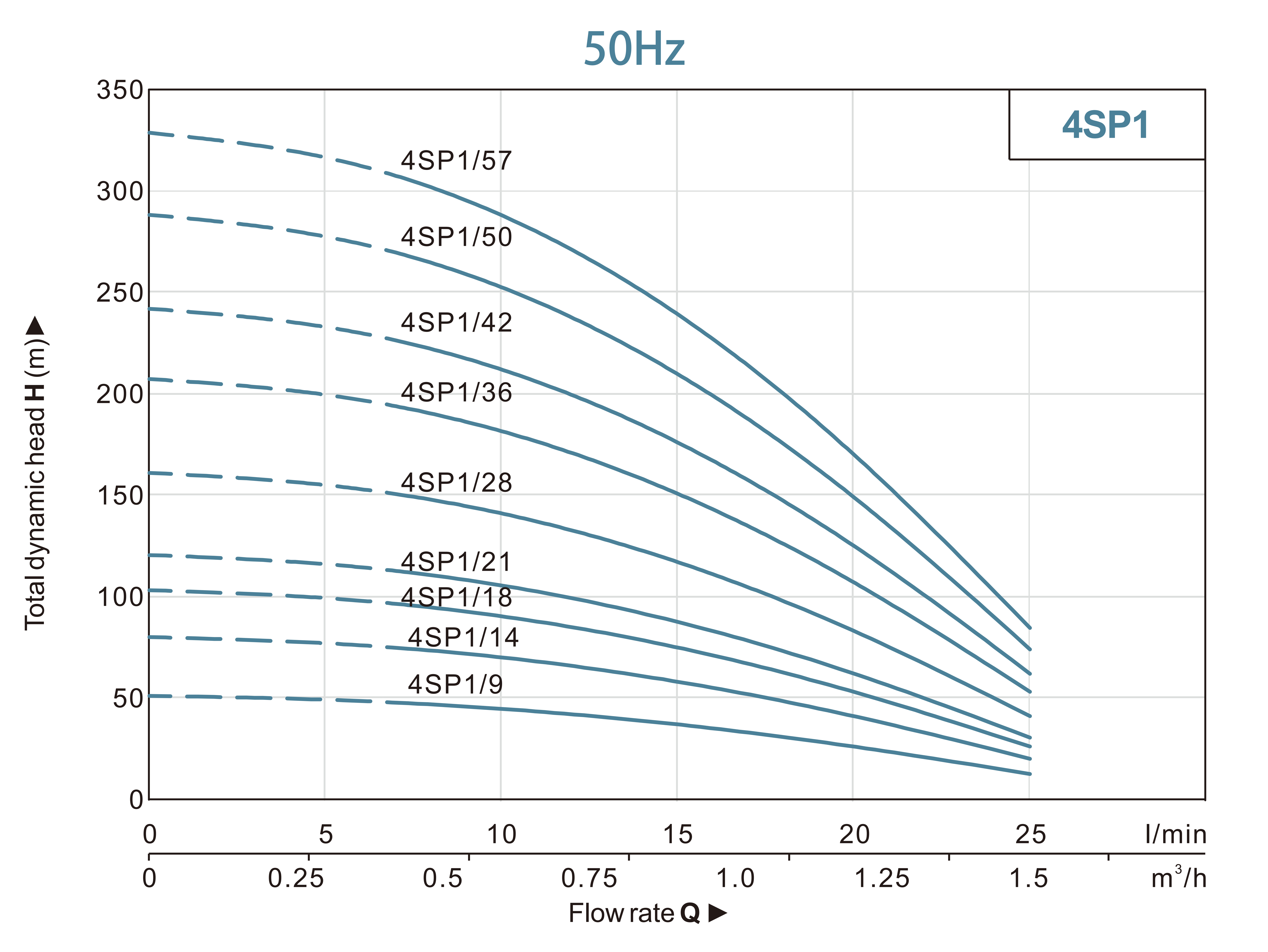

| MODEL | MOTOR | DELIVERY n≈2850 r/min | ||||||||
| 1~ 220-240V |
3~ 380-415V |
KW | HP | Q(m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 |
| Q(l/min) | 0 | 5 | 10 | 15 | 20 | 25 | ||||
| 45PM1/9 | - | 0.37 | 0.5 | H(m) | 52 | 50 | 46 | 38 | 27 | 14 |
| 4SPM1/14 | - | 0.37 | 0.5 | 81 | 78 | 71 | 59 | 42 | 21 | |
| 4SPM1/18 | 4SP1/18 | 0.55 | 0.75 | 104 | 100 | 91 | 76 | 54 | 27 | |
| 4SPM1/21 | 4SP1/21 | 0.75 | 0.75 | 122 | 117 | 107 | 89 | 63 | 32 | |
| 4SPM1/28 | 4SP1/28 | 0.75 | 1 | 162 | 156 | 142 | 118 | 84 | 42 | |
| 4SPM1/36 | - | 0.92 | 1.25 | 208 | 201 | 183 | 152 | 108 | 54 | |
| 4SPM1/42 | 4SP1/42 | 1.1 | 1.5 | 243 | 234 | 213 | 177 | 126 | 63 | |
| 4SPM1/50 | - | 1.3 | 1.75 | 289 | 279 | 254 | 211 | 150 | 75 | |
| 4SPM1/57 | 4SP1/57 | 1.5 | 2 | 330 | 318 | 289 | 240 | 171 | 86 | |
