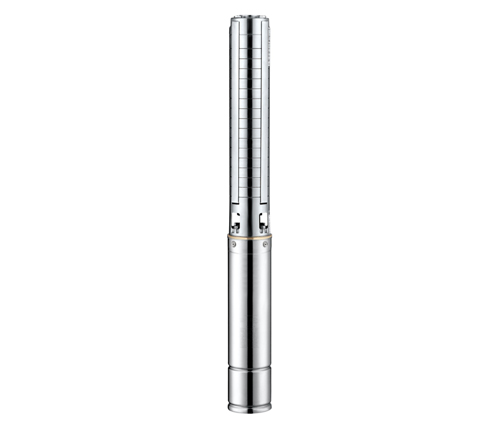

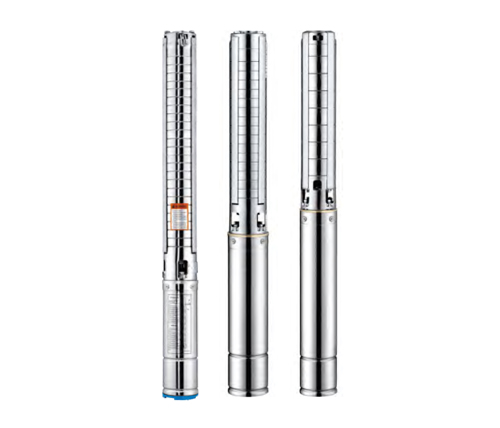

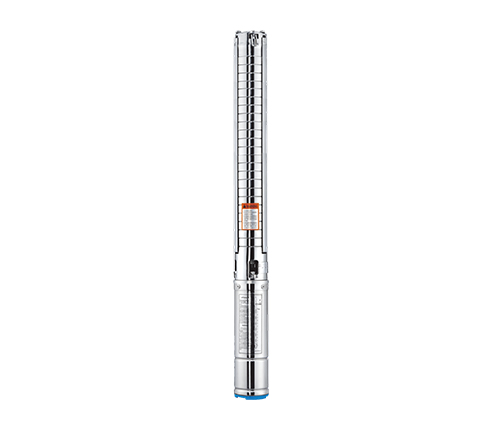

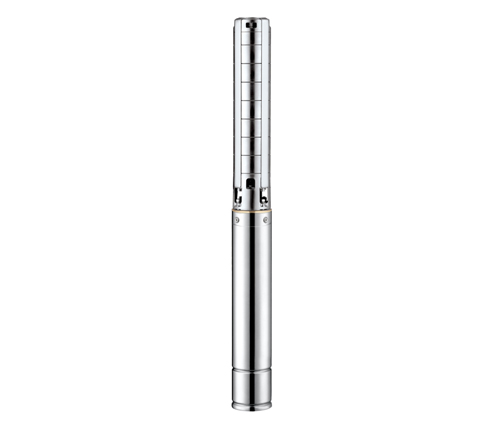

4SPM10 4" Environmental Friendly Food Machinery Oil Stainless Steel Impeller Borehole Submersible Pump , whose minimum well diameter designed 4 to inches,meets all it your can water fit pumping into needs . This range borehole of submersible well pump sizes , is the making epitome it of suitable efficiency for and various reliability.
Applications :
Forwater supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Operating Conditions:
Maximum fluid temperature up to +50℃
Maximum sand content : 0.25%
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
Curve tolerance according to ISO9906
Options on request :
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty : 2 years
(according to our general sales conditions)
CE Certificate :
|
Materials Table |
||
|
NO. |
Part |
Material |
|
1 |
Pump external casing |
AISI 304 SS |
|
2 |
Delivery casing |
AISI 304 SS |
|
3 |
Suction lantern |
AISI 304 SS |
|
4 |
Diffuser |
AISI 304 SS |
|
5 |
Impeller |
AISI 304 SS |
|
6 |
Pump shaft |
AISI 304 SS |
|
7 |
Shaft coupling |
AISI 304 SS |
|
8 |
Wear ring |
Rubber |
|
9 |
Motor external casing |
AISI 304 SS |
|
10 |
Oil chamber |
Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 AISI 304 SS |
|
11 |
Bottom support |
AISI 304 SS |
|
12 |
Mechanical Seal |
Special seal for deep well (Graphite-Ceramic) |
|
13 |
Seal lubricant oil |
Oil for food machinery and pharmaceutic use |
|
14 |
Motor shaft |
AISI 304 SS-ASTM 5140 |

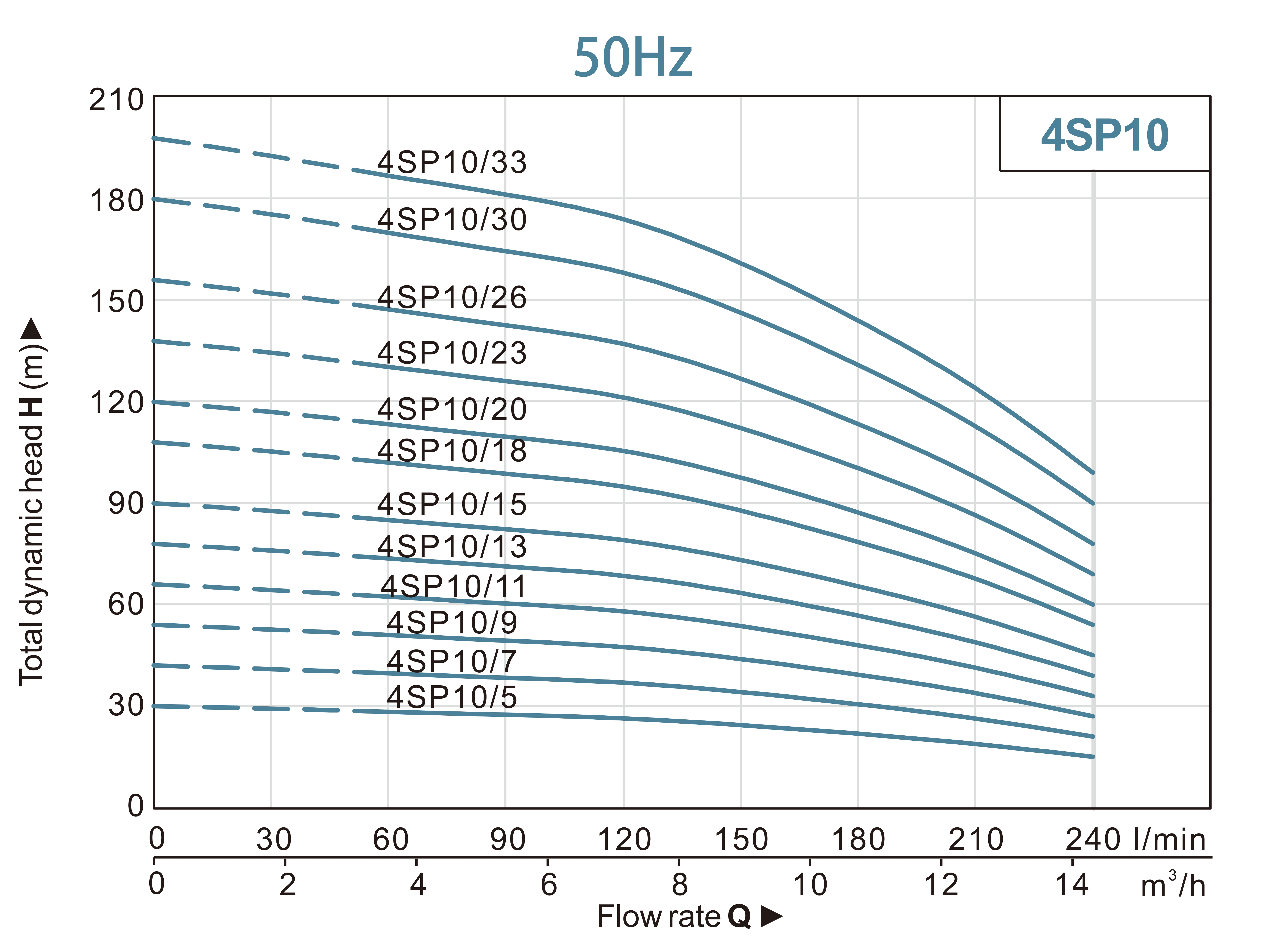

| MODEL | MOTOR | DELIVERY n≈2850 r/min | |||||||||||
| 1~ 220-240V |
3~ 380-415V |
KW | HP | Q(m³/h) | 0 | 1.8 | 3.6 | 5.4 | 7.2 | 9.0 | 10.8 | 12.6 | 14.4 |
| Q(l/min) | 0 | 30 | 60 | 90 | 120 | 150 | 180 | 210 | 240 | ||||
| 4SPM10/5 | 45P10/5 | 1.1 | 1.5 | H(m) | 30 | 29 | 28 | 27 | 26 | 24 | 22 | 19 | 15 |
| 4SPM10/7 | 4SP10/7 | 1.5 | 2 | 42 | 41 | 39 | 38 | 37 | 34 | 30 | 26 | 21 | |
| 45PM10/9 | - | 1.8 | 2.5 | 54 | 52 | 51 | 49 | 47 | 44 | 39 | 34 | 27 | |
| 4SPM10/11 | 4SP10/11 | 2.2 | 3 | 66 | 64 | 62 | 60 | 58 | 54 | 47 | 41 | 33 | |
| 4SPM10/13 | 4SP10/13 | 2.6 | 3.5 | 78 | 76 | 73 | 71 | 69 | 63 | 56 | 49 | 39 | |
| 4SPM10/15 | 4SP10/15 | 3 | 4 | 90 | 87 | 85 | 82 | 79 | 73 | 65 | 56 | 45 | |
| - | 4SPI0/18 | 4 | 5.5 | 108 | 105 | 101 | 98 | 95 | 88 | 77 | 68 | 54 | |
| - | 45P10/20 | 4 | 5.5 | 120 | 116 | 113 | 109 | 105 | 98 | 86 | 75 | 60 | |
| - | 4SP10/23 | 5.5 | 7.5 | 138 | 134 | 130 | 125 | 121 | 112 | 99 | 86 | 69 | |
| - | 4SP10/26 | 5.5 | 7.5 | 156 | 151 | 147 | 142 | 137 | 127 | 112 | 98 | 78 | |
| - | 4SP10/30 | 7.5 | 10 | 180 | 175 | 169 | 164 | 158 | 146 | 129 | 113 | 90 | |
| - | 4SP10/33 | 7.5 | 10 | 198 | 192 | 186 | 180 | 174 | 161 | 142 | 124 | 99 | |
