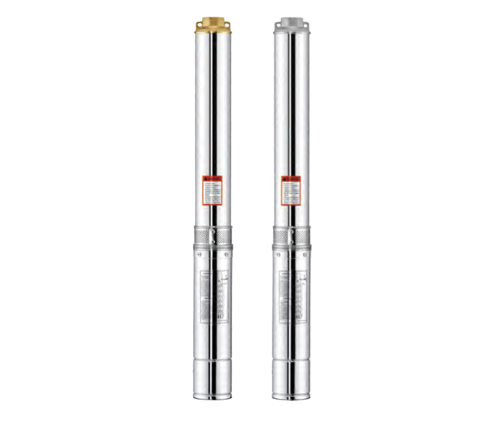

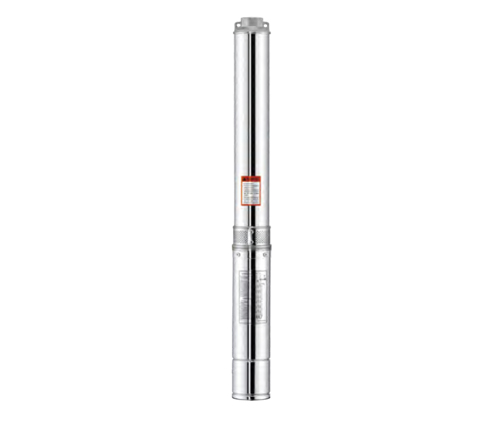

5SDM10 5SDM12 5" Long Life High Assembling Accuracy Borehole Submersible Pump for Rescue and Relief Work
View All Products
en
5SDM10,5SDM12 5" Long Life High Assembling Accuracy Borehole Submersible Pump for Rescue and Relief Work is a remarkable product designed to meet the demands of cross-border e-commerce platforms. With a combination of industry expertise and marketing know-how, we have crafted a product description that will ensure your offering stands out from the competition.
Applications :
Provides water supply from wells or reservoirs for various use cases.
Caters to domestic, civil, and industrial applications with stable performance.
Supports garden maintenance and agricultural irrigation operations efficiently.
Key Features :
1、Long life : Its robust construction ensures durability and longevity, making it the ideal choice for demanding environments.
2、With its high pressure capabilities, this pump can effectively handle deep well applications, providing you with a consistent and reliable water supply.
3、The submersible design ensures quiet operation, making it suitable for residential areas.
4、With its heavy-duty design, this pump can handle even the toughest pumping tasks. Its high pressure capabilities allow for efficient water delivery, ensuring that your water needs are met in a timely manner.
Operating Conditions:
Maximum fluid temperature up to +35℃
Maximum sand content : 0.25%
Minimum well diameter : 5"
Reversible electric motor
Single-phase: 220-240V/50Hz or Three-phase: 380-415V/50Hz
Equipped with a starting control box or digital automatic control box
Pumps are designed with stress consideration in the casing
Curve tolerances adhere to ISO 9906 guidelines
Options on request :
Special mechanical seal
Single phase motor with built-in capacitor
Warranty : 2 years
(according to our general sales conditions)
CE Certificate :
|
Components |
Material |
|
Pump external casing |
Stainless Steel |
|
Delivery casing |
①Cast-Cu ASTM C85500②AISI 304 SS |
|
Suction lantern |
①Cast-Cu ASTM C85500②AISI 304 SS |
|
Diffuser |
Plastic.PC |
|
Impeller |
Plastic.POM |
|
Shaft |
AISI 304 SS |
|
Shaft coupling |
AISI 304 SS |
|
Wear ring |
AISI 304 SS |
|
Motor external casing |
Stainless Steel |
|
Oil chamber |
①Cast-Cu ASTM C85500 |
|
②Cast-iron ASTM NO.30 |
|
|
Bottom support |
AISI 304 SS |
|
Mechanical seal |
Special seal for deep well(Graphite-Ceramic) |
|
Shaft |
AISI 304 SS-ASTM 5140 |
|
Seal lubricant oil |
Oil for food machinery and pharmaceutic use. |


|

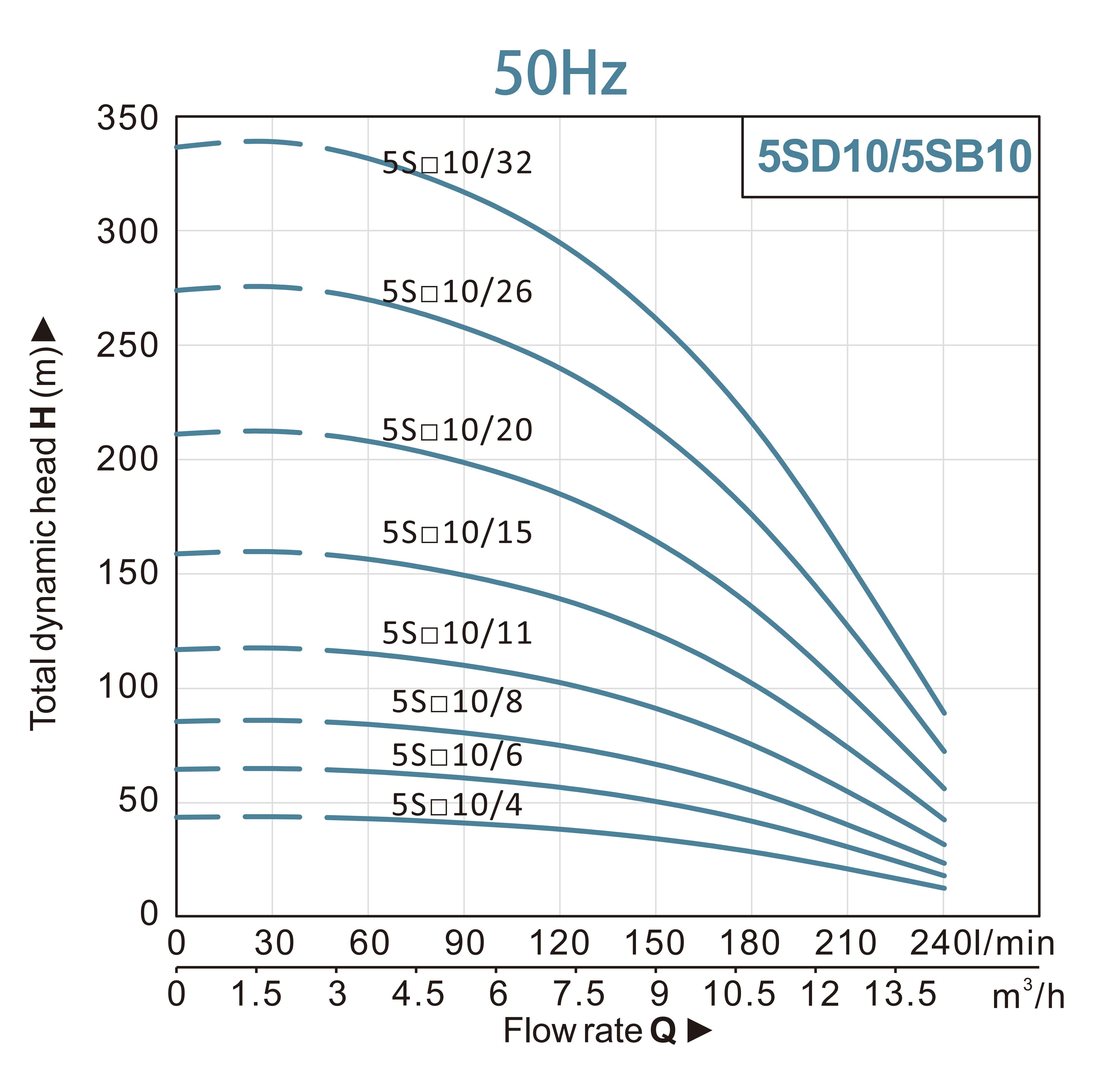

Model |
Power |
Delivery n≈2850 r/min |
|||||||||||
|
1~220V-240V |
3~380V-415V |
KW |
HP |
Q(m³/h) |
0 |
1.8 |
3.6 |
5.4 |
7.2 |
9.0 |
10.8 |
12.6 |
14.4 |
|
Q(l/min) |
0 |
30 |
60 |
90 |
120 |
150 |
180 |
210 |
240 |
||||
|
5S□M10/4 |
5S□10/4 |
1.5 |
2 |
H(m) |
42 |
42 |
41 |
39 |
37 |
33 |
27 |
19 |
11 |
|
5S□M10/6 |
5S□10/6 |
2.2 |
3 |
63 |
63 |
62 |
59 |
55 |
49 |
40 |
29 |
16 |
|
|
5S□M10/8 |
5S□10/8 |
3 |
4 |
84 |
84 |
83 |
79 |
73 |
65 |
54 |
39 |
22 |
|
|
5S□M10/11 |
5S□10/11 |
4 |
5.5 |
115 |
116 |
113 |
108 |
101 |
89 |
74 |
53 |
30 |
|
|
- |
5S□10/15 |
5.5 |
7.5 |
157 |
158 |
155 |
148 |
137 |
122 |
100 |
72 |
41 |
|
|
- |
5S□10/20 |
7.5 |
10 |
209 |
211 |
206 |
197 |
183 |
163 |
134 |
96 |
54 |
|
|
- |
5S□10/26 |
11 |
15 |
272 |
274 |
268 |
256 |
238 |
211 |
174 |
125 |
71 |
|
|
- |
5S□10/32 |
15 |
20 |
335 |
337 |
330 |
315 |
293 |
260 |
214 |
154 |
87 |
|
5S□ in the above table can be replaced by any of 5SD,5SB

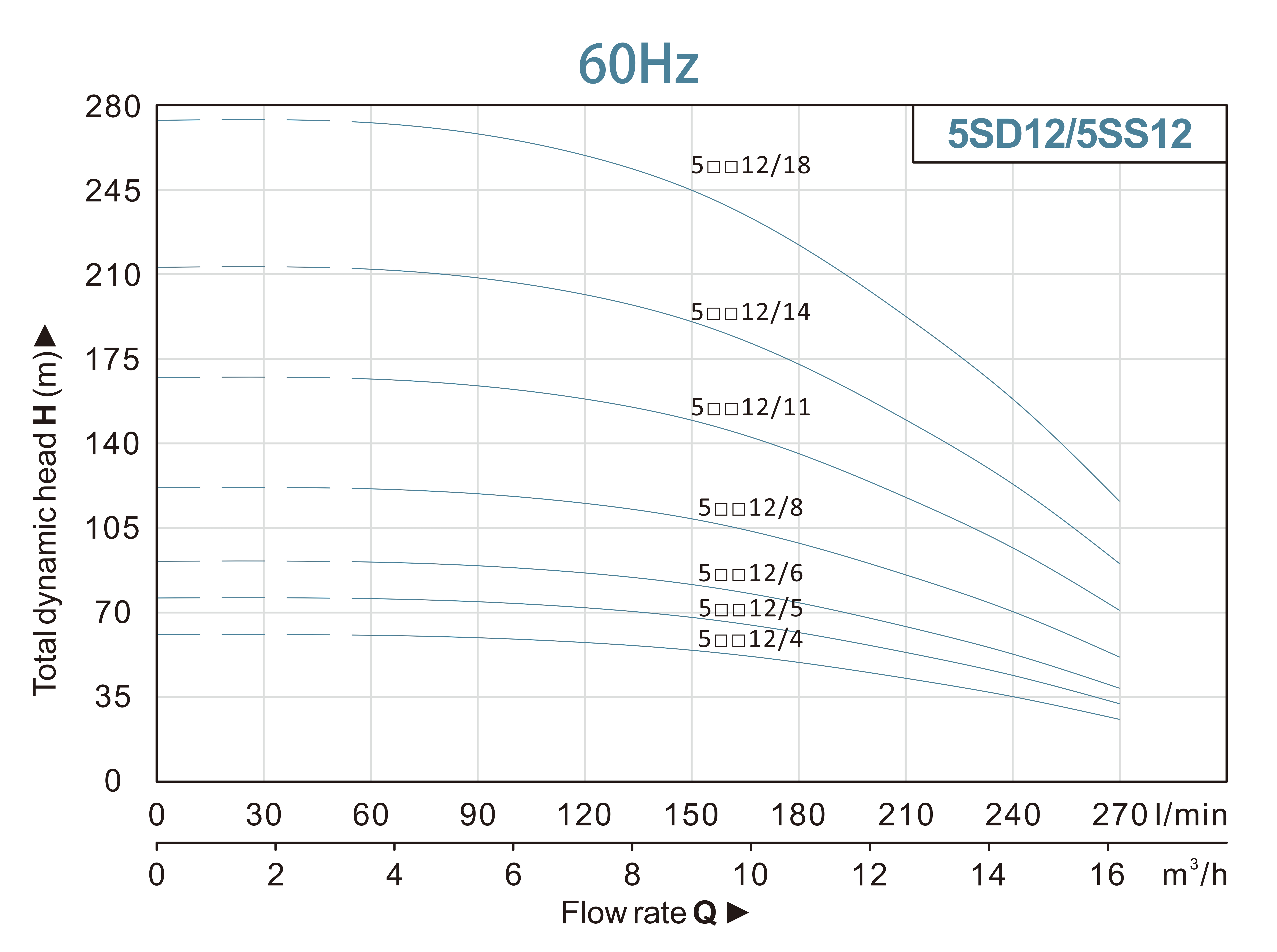

| MODEL | MOTOR | DELIVERY n≈3450 r/min | |||||||||||
| 3~ 220/380V | KW | HP | Q(m³/h) | 0 | 1.8 | 3.6 | 5.4 | 7.2 | 9 | 10.8 | 12.6 | 14.4 | 16.2 |
| Q(l/min) | 0 | 30 | 60 | 90 | 120 | 150 | 180 | 210 | 240 | 270 | |||
| 5□□12/4 | 1.5 | 2 | H(m) | 60 | 61 | 61 | 60 | 58 | 54 | 49 | 43 | 35 | 26 |
| 5□□12/5 | 2.2 | 3 | 76 | 76 | 76 | 74 | 72 | 68 | 62 | 54 | 44 | 32 | |
| 5□□12/6 | 3 | 4 | 91 | 91 | 91 | 89 | 86 | 82 | 74 | 64 | 53 | 39 | |
| 5□□12/8 | 4 | 5.5 | 121 | 122 | 121 | 119 | 115 | 109 | 99 | 86 | 70 | 52 | |
| 5□□12/11 | 5.5 | 7.5 | 166 | 167 | 167 | 164 | 158 | 150 | 136 | 118 | 97 | 71 | |
| 5□□12/14 | 7.5 | 10 | 212 | 213 | 212 | 208 | 201 | 191 | 173 | 150 | 123 | 90 | |
| 5□□12/18 | 11 | 15 | 272 | 274 | 273 | 267 | 259 | 245 | 222 | 193 | 158 | 116 | |
5S□□ in the above table can be replaced by any of 5SD,5SS
