Wholesale 5SDM15 5SDM18 5 Inch No Rust Screw Earth Leakage Protection Borehole Submersible Pump for Industrial Watering Recycling Supplier, OEM/ODM Company

Description :

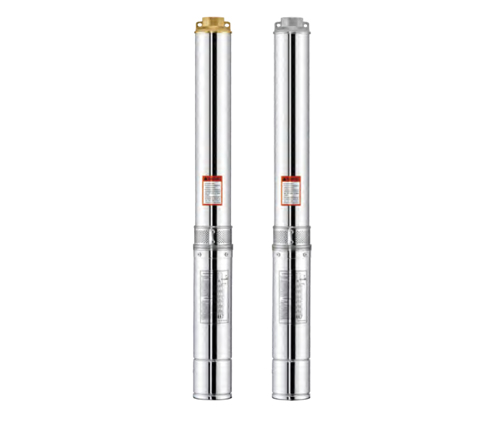

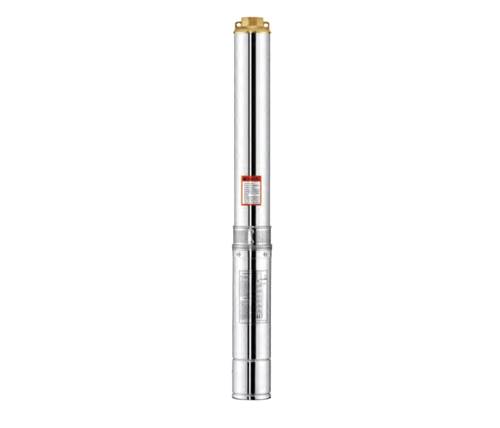

EDWIN offers 5SDM15 5SDM18 5" No Rust Screw Earth Leakage Protection Borehole Submersible Pump for Industrial Watering Recycling that is a reliable and efficient solution for all your industrial watering and recycling needs. This borehole submersible pump is designed to deliver exceptional performance and durability, making it the perfect choice for various applications.

Applications :

Provides water supply from wells or reservoirs for various use cases.

Caters to domestic, civil, and industrial applications with stable performance.

Supports garden maintenance and agricultural irrigation operations efficiently.

Key Features :

1、Crafted from high-quality stainless steel, this submersible pump is built to withstand the test of time. Its corrosion-resistant properties ensure that it remains in optimal condition, even in harsh environments. Say goodbye to rust and enjoy a reliable water supply for years to come.

2、Safety is a top priority, which is why this borehole submersible pump is equipped with earth leakage protection. This feature provides an extra layer of security, preventing electrical accidents and ensuring the safety of both the pump and the surrounding environment.
3、 Its powerful performance, anti-sand capability, and rust-resistant construction make it a reliable and efficient solution for all your water pumping needs.
4、Whether you need to supply water for industrial processes, agricultural irrigation, or water recycling systems, this submersible pump is the perfect choice.

Operating Conditions:

Maximum fluid temperature up to +35℃
Maximum sand content : 0.25%
Minimum well diameter : 5"

Motor and Pump :

Electric motor with rewind capability

Single-phase: 220-240V/50Hz or Three-phase: 380-415V/50Hz power supply

Equipped with a starter control box or digital automatic control box

Pumps are designed with considerations for casing stress

Adheres to NEMA dimensional standards for compliance

Curve tolerances are in accordance with ISO 9906 guidelines.

Options on request :

Special mechanical seal

Single phase motor with built-in capacitor

Warranty : 2 years

(according to our general sales conditions)

CE Certificate :

Components and Material :

Components	Material
Pump external casing	Stainless Steel
Delivery casing	①Cast-Cu ASTM C85500②AISI 304 SS
Suction lantern	①Cast-Cu ASTM C85500②AISI 304 SS
Diffuser	Plastic.PC
Impeller	Plastic.POM
Shaft	AISI 304 SS
Shaft coupling	AISI 304 SS
Wear ring	AISI 304 SS
Motor external casing	Stainless Steel
Oil chamber	①Cast-Cu ASTM C85500
Oil chamber	②Cast-iron ASTM NO.30
Bottom support	AISI 304 SS
Mechanical seal	Special seal for deep well(Graphite-Ceramic)
Shaft	AISI 304 SS-ASTM 5140
Seal lubricant oil	Oil for food machinery and pharmaceutic use.

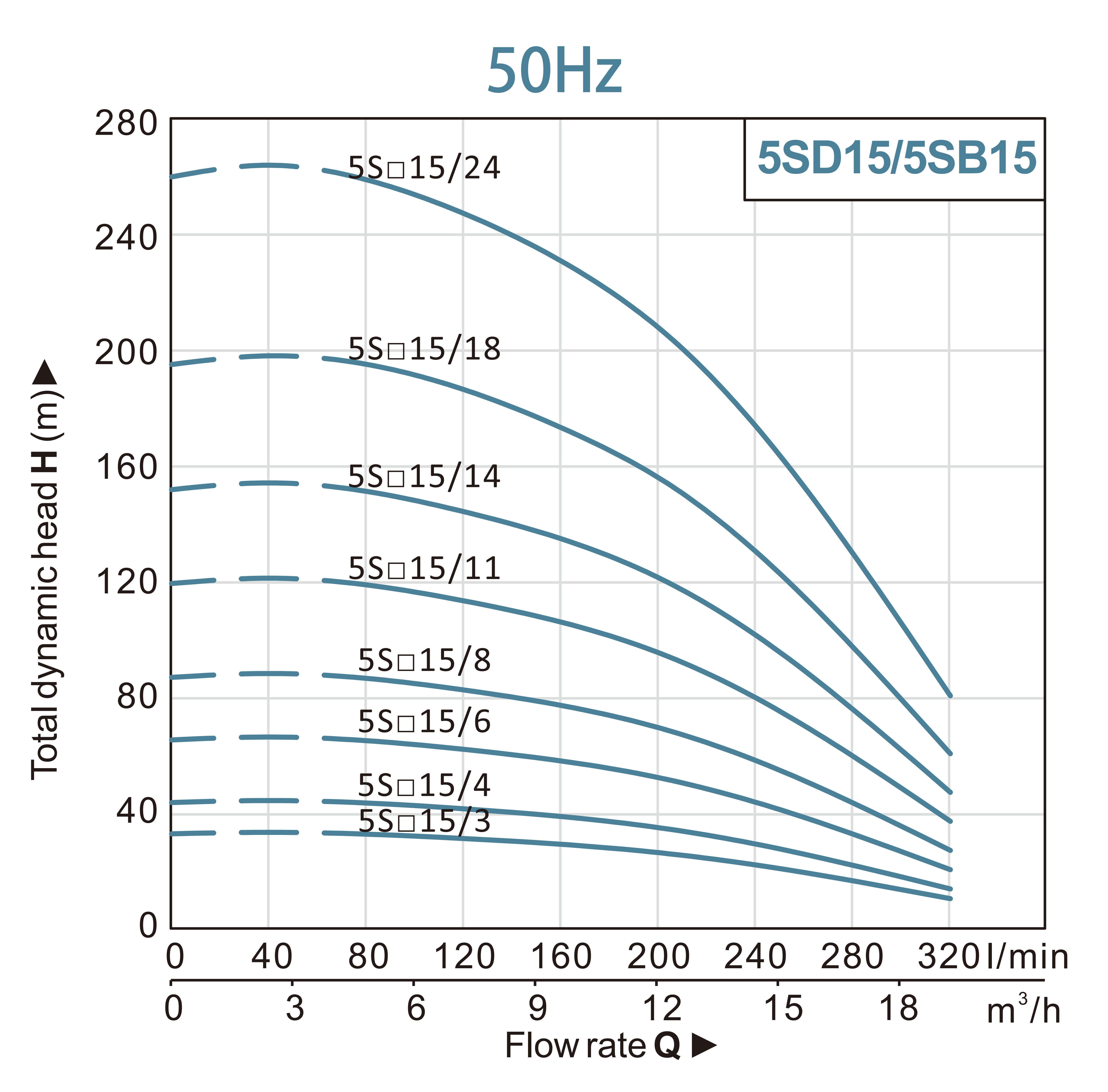

Performance Curves:

Performance Data ( 50Hz ) :

Model		Power		Delivery n≈2850r/min
1~220V-240V	3~380V-415V	KW	HP	Q(m³/h)	0	2.4	4.8	7.2	9.6	12.0	14.4	16.8	19.2
1~220V-240V	3~380V-415V	KW	HP	Q(L/min)	0	40	80	120	160	200	240	280	320
5S□M15/3	5S□15/3	1.5	2	H(m)	32	33	32	31	29	26	22	16	10
5S□M15/4	5S□15/4	2.2	3		43	44	43	41	38	34	29	21	13
5S□M15/6	5S□15/6	3	4		65	66	64	61	57	52	43	32	20
5S□M15/8	5S□15/8	4	5.5		86	88	86	82	77	69	58	43	27
-	5S□15/11	5.5	7.5		119	121	118	113	105	95	79	59	37
-	5S□ 15/14	7.5	10		151	153	151	144	134	121	101	75	47
-	5S□15/18	11	15		194	197	194	185	173	155	130	97	60
-	5S□ 15/24	15	20		259	263	258	246	230	207	173	129	80

5S□ in the above table can be replaced by any of 5SD,5SB

Performance Data ( 60Hz ) :

MODEL	MOTOR		DELIVERY n≈3450r/min
3~220/380V	KW	HP	Q(m³/h)	0	3	6	9	12	15	18	21	24
3~220/380V	KW	HP	Q(l/min)	0	50	100	150	200	250	300	350	440
5□□18/3	1.5	2	H(m)	47	48	47	45	42	37	32	23	13
5□□18/4	2.2	3		63	64	63	60	57	50	42	31	17
5□□18/5	3	4		79	80	78	75	71	62	53	39	21
5□□18/6	4	5.5		94	96	94	90	85	75	63	46	26
5□□18/8	5.5	7.5		126	127	125	120	113	100	85	62	34
5□□18/10	7.5	10		157	159	156	150	141	125	106	77	43
5□□18/14	11	15		220	223	219	210	198	175	148	108	60
