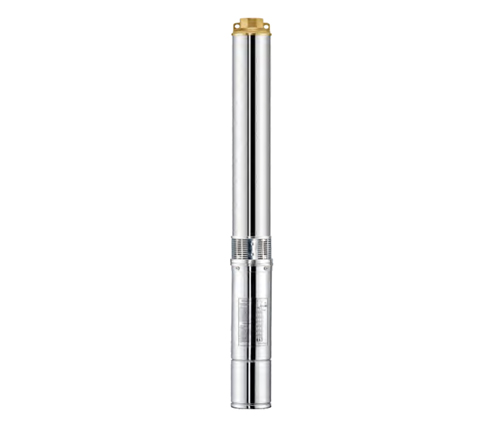

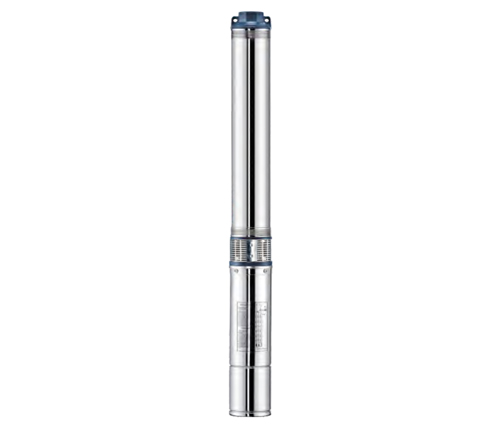

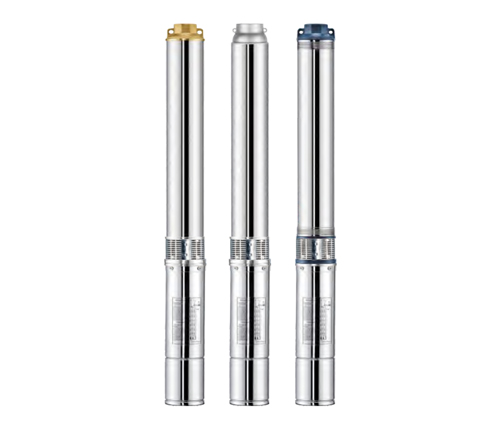

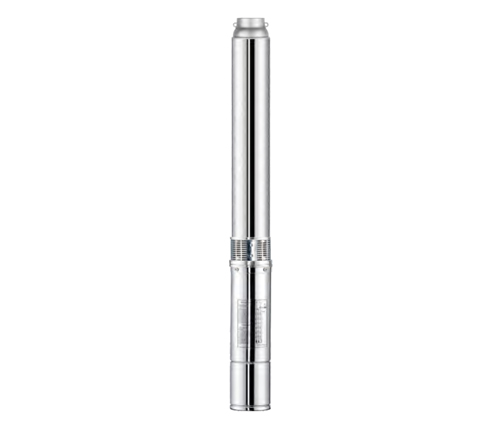

6SDM30 6" Solid Fuselage Structure 600# Cold Rolled Silicon Steel Sheet Long Service Life Borehole Submersible Pump

Minimum well diameter : 6"

Rated capacity : 30m³/h
Oil chamber : Cast-Cu or iron
Solid Fuselage Structure
600# Cold Rolled Silicon Steel Sheet
Long Service Life
Borehole Submersible Pump

PREV：6SDM20 6" High-lift Overload Protection Insulated Wire Borehole Submersible Pump
NEXT：6SDM40 6" Anti-corrison Sand Resistance Float Impeller Borehole Submersible Pump

Description
Components
Curves
Performance Data
Contact Us

Description :

The Solid Fuselage Structure 600# Cold Rolled Silicon Steel Sheet Long Service Life Borehole Submersible Pump is a durable and long-lasting water pumping solution designed for borehole applications.

Applications :

Provides water supply from wells or reservoirs for various use cases.

Caters to domestic, civil, and industrial applications with stable performance.

Supports garden maintenance and agricultural irrigation operations efficiently.

Key points :

1、This pump is built with a solid fuselage structure and utilizes 600# cold rolled silicon steel sheet, ensuring a robust construction and extended service life.
2、The solid fuselage structure of the pump provides added strength and stability, making it capable of withstanding the rigors of continuous water pumping. This structure helps to prevent damage and ensures the pump's longevity, even in demanding environments.
3、The use of 600# cold rolled silicon steel sheet in the construction of the pump enhances its durability and efficiency. This material is known for its high magnetic permeability and low energy loss, resulting in improved performance and energy efficiency.
4、With its long service life, the borehole submersible pump offers reliable and consistent water pumping over an extended period. This makes it suitable for applications where continuous operation is required, such as agricultural irrigation or water supply for residential or commercial purposes.
5、The borehole submersible design allows the pump to be fully submerged in water, maximizing efficiency and minimizing noise. It eliminates the need for priming and reduces the risk of cavitation, ensuring smooth and efficient operation.

Operating Conditions :

Maximum fluid temperature up to +35℃
Maximum sand content : 0.25%
Minimum well diameter : 6"

Motor and Pump :

Rewindable Electric Motor

Single-phase: 220-240V/50Hz

Three-phase: 380-415V/50Hz

Equipped with a starter control box or digital auto-control box

Curve tolerance in accordance with ISO 9906.

Options on request :

Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor

Warranty : 2 years

(according to our general sales conditions)

CE Certificate :

Components and Material :

Components	Material
Pump external casing	Stainless Steel
Delivery casing	Cast-Cu ASTM C85500
	AISI 304 SS
	Cast-iron ASTM NO.30
Suction lantern	1.AISI 304 SS 2.Cast-ASTM NO.30
Diffuser	Plastic.PC
Impeller	Plastic.POM
Shaft	AISI 304 SS
Shaft coupling	AISI 304 SS
Wear ring	AISI 304 SS
Motor external casing	Stainless Steel
Oil chamber	①Cast-Cu ASTM C85500
Oil chamber	②Cast-iron ASTM NO.30
Bottom support	AISI 304 SS
Mechanical seal	Special seal for deep well (Graphite-Ceramic)
Shaft	AISI 304 SS-ASTM 5140
Seal lubricant oil	Oil for food machinery and pharmaceutic use.

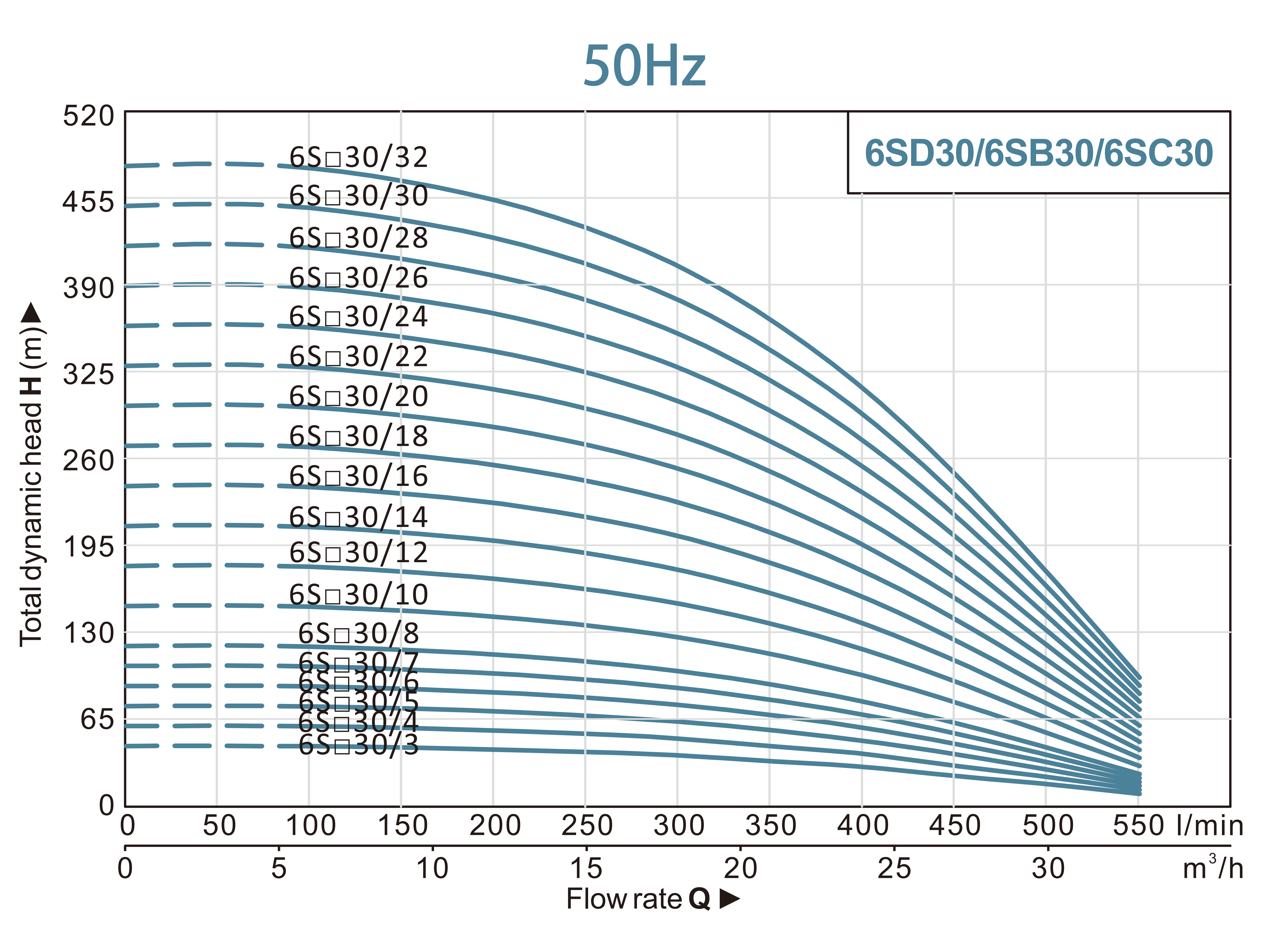

Performance Curves:

Performance Data ( 50Hz ) :

MODEL		MOTOR		DELIVERY n≈2850 r/min
1~ 220-240V	3~ 380-415V	KW	HP	Q(m³/h)	0	3	6	9	12	15	18	21	24	18	21	24
1~ 220-240V	3~ 380-415V	KW	HP	Q(l/min)	0	50	100	150	200	250	300	350	400	300	350	400
6S□M30/3	6S□30/3	3	4	H(m)	45	45	45	44	42	40	38	33	29	22	16	9
6S□M30/4	6S□30/4	4	5.5		60	60	60	58	56	54	50	45	39	30	22	12
6S□M30/5	6S□30/5	5.5	7.5		75	75	75	73	71	67	63	56	49	38	27	15
6S□M30/6	6S□30/6	5.5	7.5		90	90	89	88	85	81	76	67	58	45	33	18
-	6S□30/7	7.5	10		105	105	104	102	99	94	88	78	68	52	38	21
-	6S□30/8	7.5	10		120	120	119	117	112	108	101	89	78	60	44	24
-	6S□30/10	9.2	12.5		150	150	149	146	141	135	126	111	97	75	54	30
-	6S□30/12	11	15		179	180	179	175	169	162	151	134	117	90	65	36
-	6S□30/14	13	17.5		209	210	209	204	197	189	176	156	136	105	76	42
-	6S□30/16	15	20		239	240	238	234	226	216	202	178	156	120	87	48
-	6S□30/18	18.5	25		269	270	268	263	254	243	227	201	176	135	98	54
-	6S□30/20	18.5	25		299	300	298	292	282	270	252	223	195	150	109	60
-	6S□30/22	22	30		329	330	328	321	310	297	277	245	214	165	120	66
-	6S□30/24	22	30		359	360	358	350	338	324	302	268	234	180	131	72
-	6S□30/26	26	35		389	390	387	380	367	351	328	290	253	195	142	78
-	6S□30/28	26	35		419	420	417	409	395	378	353	312	273	210	153	84
-	6S□30/30	30	40		449	450	447	438	423	405	378	334	292	225	163	90
-	6S□30/32	30	40		478	480	477	467	451	432	403	357	312	240	174	96

6S□ in the above table can be replaced by 6SD ,6SB,6SC

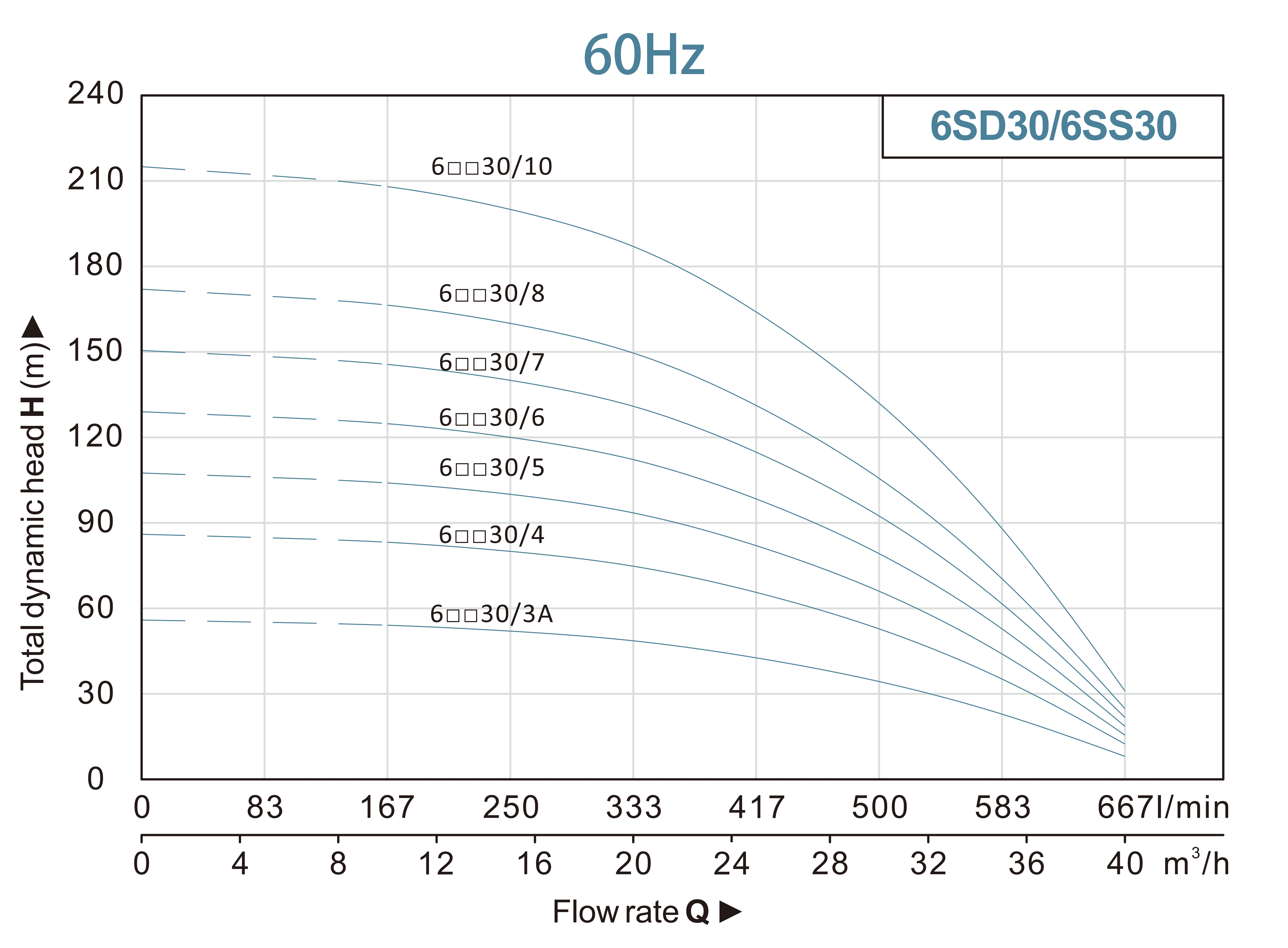

Performance Data ( 60Hz ) :

MODEL	MOTOR		DELIVERY n≈3450r/min
3~220/380V	KW	HP	Q(m³/h)	0	5	10	15	20	25	30	35	40
3~220/380V	KW	HP	Q(l/min)	0	83	167	250	333	417	500	583	667
6□□30/3A	4	5.5	H(m)	56	55	54	52	49	43	34	23	8
6□□30/4	5.5	7.5		86	85	83	80	75	66	53	35	12
6□□30/5	7.5	10		108	106	104	100	94	82	66	44	16
6□□30/6	9.2	12.5		129	127	125	120	112	98	79	53	19
6□□30/7	11	15		151	148	146	140	131	115	92	62	22
6□□30/8	13	17.5		172	170	166	160	150	131	106	70	25
6□□30/10	15	20		215	212	208	200	187	164	132	88	31

6□□ in the above table can be replaced by 6SD ,6SS
