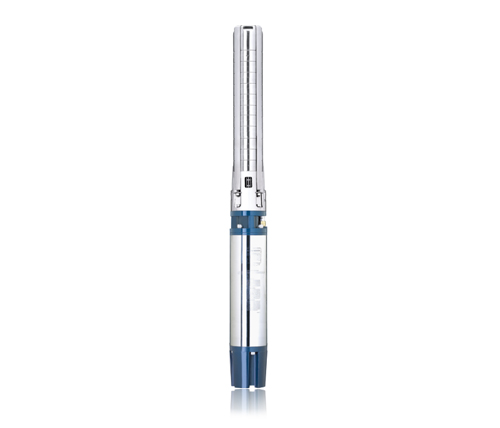

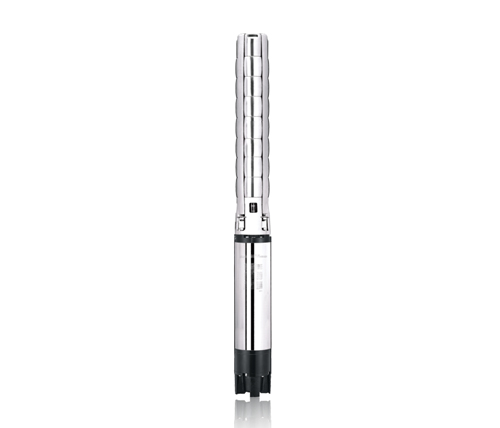

Wholesale 6SP10 6 Inch Widely Applications Rubber Wear Ring Stainless Steel Impeller Borehole Submersible Pump for Civil Industrial Supplier, OEM/ODM Company

Description :

Designed with utmost precision and engineered to perfection, this pump is specifically crafted to cater to the demands of deep well applications in various industries.With its 6SP17 6" size, this submersible pump is capable of delivering exceptional performance in even the most challenging conditions.

Applications :

Provides water supply from wells or reservoirs for various use cases.

Caters to domestic, civil, and industrial applications with s2table performance.

Supports garden maintenance and agricultural irrigation operations efficiently.

Key Features :

1、 Its wide range of applications makes it an ideal choice for civil and industrial purposes. Whether you need to extract water from a deep well, borehole, or any other water source, this pump is designed to meet your requirements with utmost efficiency.
2、One of the standout features of this water pump is its rubber wear ring, which ensures enhanced durability and longevity. This innovative addition protects the pump from wear and tear, allowing it to withstand the test of time even in demanding environments.
3、The stainless steel impeller further adds to the durability and reliability of this submersible pump

Operating Conditions:

Maximum fluid temperature up to +50℃
Maximum sand content : 0.25%
Minimum well diameter : 6"

Motor and Pump :

Rewindable Electric Motor

Single Phase : 220-240V/50Hz

Three Phase : 380-415V/50Hz

Starting Modes : Direct Start (1 Cable) or Star-Delta Start (2 Cables)

Equipped with Start Control Box or Digital Auto-Control Box

Compliant with NEMA Dimension Standards

Curve Tolerance in Accordance with ISO 9906.

Options on request :

Special mechanical seal
Other voltages or frequency 60Hz

Warranty : 2 years

(according to our general sales conditions)

CE Certificate :

Components and Material :

Components	Material
Delivery casing	AISI 304 SS
Suction lantern	AISI 304 SS
Diffuser	AISI 304 SS
Impeller	AISI 304 SS
Shaft	AISI 304 SS
Shaft coupling	AISI 304 SS
Wear ring	Rubber
Motor external casing	AISI 304 SS
Oil chamber	Cast-iron ASTM NO.30
Oil chamber	Cast-iron ASTM NO.30
Bottom support	Cast-iron ASTM NO.30
Seal	NBR Graphite-SIC/TC
Shaft	AISI 304 SS-ASTM 5140

Performance Curves :

Performance Data ( 50Hz ) :

Model		Power		Delivery n≈2850r/min
1~220V-240V	3~380V-415V	KW	HP	Q(m³/h)	0	3	6	9	12	15	18	21	24
1~220V-240V	3~380V-415V	KW	HP	Q(l/min)	0	50	100	150	200	250	300	350	400
6SPM17/4	6SP17/4	2.2	3	H(m)	44	44	43	42	39	35	30	23	15
6SPM17/5	6SP17/5	3	4		55	55	54	52	49	44	37	29	19
6SPM17/7	6SP17/7	4	5.5		77	77	75	73	68	61	52	40	27
6SPM17/10	6SP17/10	5.5	7.5		110	110	108	104	97	87	75	58	38
-	6SP17/13	7.5	10		143	143	140	136	127	114	97	75	50
-	6SP17/14	9.2	12.5		154	153	151	146	136	122	105	81	54
-	6SP17/16	9.2	12.5		176	175	172	167	156	140	120	92	61
-	6SP17/18	11	15		198	197	194	188	175	157	134	104	69
-	6SP17/20	11	15		220	219	215	209	195	175	149	115	77
-	6SP17/22	13	17.5		242	241	237	229	214	192	164	127	85
-	6SP17/24	15	20		264	263	258	250	233	209	179	138	92
-	6SP17/26	15	20		286	285	280	271	253	227	194	150	100
-	6SP17/28	18.5	25		308	307	301	292	272	244	209	161	108
-	6SP17/32	18.5	25		352	351	344	334	311	279	239	184	123
-	6SP17/36	22	30		396	395	388	375	350	314	269	208	138
-	6SP17/40	22	30		440	438	431	417	389	349	298	231	154
-	6SP17/42	26	35		462	460	452	438	408	366	314	242	161
-	6SP17/45	26	35		495	493	484	469	438	393	336	259	173
-	6SP17/48	30	40		528	526	517	501	467	419	359	277	184
-	6SP17/51	30	40		561	559	549	532	496	445	381	294	196
