6SP36 6" Widely Applications Rubber Wear Ring Stainless Steel Impeller Borehole Submersible Pump for Civil Industrial

Name: 6SP36 6' Widely Applications Rubber Wear Ring Stainless Steel Impeller Borehole Submersible Pump for Civil Industrial
Brand: Taizhou Edwin Electric Co., Ltd.

Minimum well diameter : 6"

Rated capacity : 36m³/h
Oil chamber : Cast-iron ASTM NO.30
Widely Applications
Rubber Wear Ring
Stainless Steel Impeller
Borehole Submersible Pump
for Civil Industrial

PREV：6SP10 6" Widely Applications Rubber Wear Ring Stainless Steel Impeller Borehole Submersible Pump for Civil Industrial
NEXT：No next product

Description
Components
Curves
Performance Data
Contact Us

Components and Material :

Components	Material
Delivery casing	AISI 304 SS
Suction lantern	AISI 304 SS
Diffuser	AISI 304 SS
Impeller	AISI 304 SS
Shaft	AISI 304 SS
Shaft coupling	AISI 304 SS
Wear ring	Rubber
Motor external casing	AISI 304 SS
Oil chamber	Cast-iron ASTM NO.30
Oil chamber	Cast-iron ASTM NO.30
Bottom support	Cast-iron ASTM NO.30
Seal	NBR Graphite-SIC/TC
Shaft	AISI 304 SS-ASTM 5140

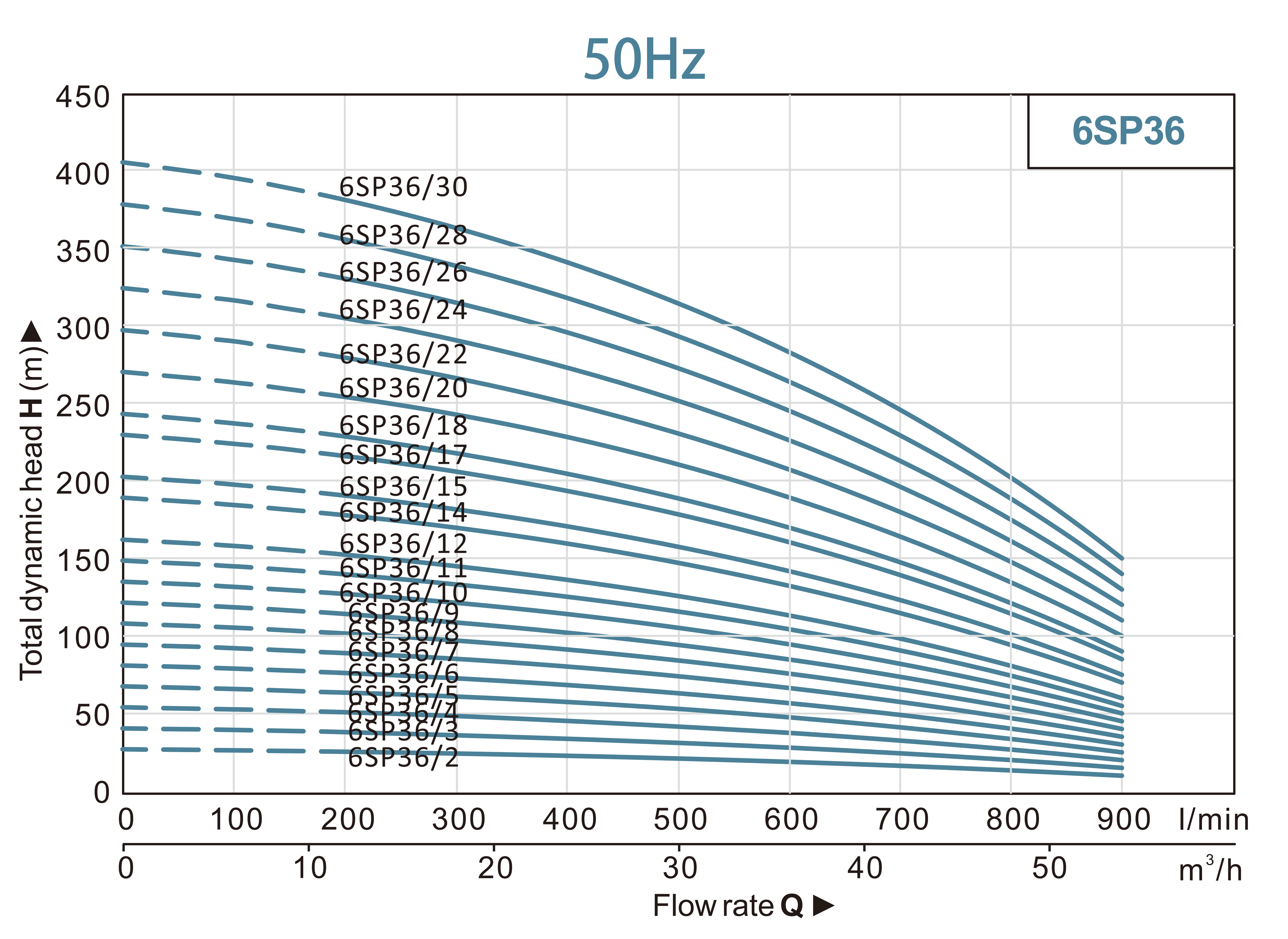

Performance Curves :

Performance Data ( 50Hz ) :

MODEL		MOTOR		DELIVERY n≈2850r/min
1~ 220-240V	3~ 380-415V	KW	HP	Q(m³/h)	0	6	12	18	24	30	36	42	48	54
1~ 220-240V	3~ 380-415V	KW	HP	Q(l/min)	0	100	200	300	400	500	600	700	800	900
6SPM36/2	6SP36/2	3	4	H(m)	27	26	25	24	23	21	19	16	14	10
6SPM36/3	6SP36/3	4	5.5		41	39	38	36	34	31	28	25	20	15
6SPM36/4	6SP36/4	5.5	7.5		54	53	51	48	45	42	38	33	27	20
-	6SP36/5	7.5	10		68	66	63	60	57	52	47	41	34	25
-	6SP36/6	7.5	10		81	79	76	73	68	62	56	49	41	30
-	6SP36/7	9.2	12.5		95	92	89	85	80	73	66	58	48	35
-	6SP36/8	11	15		108	105	102	97	91	83	75	66	54	40
-	6SP36/9	11	15		122	119	114	109	102	94	85	74	61	45
-	6SP36/10	13	17.5		135	132	127	121	114	104	94	82	68	50
-	6SP36/11	15	20		149	145	140	133	125	114	103	91	75	55
-	6SP36/12	15	20		162	158	152	145	136	125	113	99	82	60
-	6SP36/14	18.5	25		189	184	178	169	159	146	132	115	95	70
-	6SP36/15	18.5	25		203	198	190	181	170	156	141	123	102	75
-	6SP36/17	22	30		230	224	216	206	193	177	160	140	116	85
-	6SP36/18	22	30		243	237	229	218	205	187	169	148	122	90
-	6SP36/20	26	35		270	263	254	242	227	208	188	165	136	100
-	6SP36/22	30	40		297	290	279	266	250	229	207	181	150	110
-	6SP36/24	30	40		324	316	305	290	273	250	226	198	163	120
-	6SP36/26	37	50		351	342	330	315	296	270	244	214	177	130
-	6SP36/28	37	50		378	369	356	339	318	291	263	231	190	140
-	6SP36/30	37	50		405	395	381	363	341	312	282	247	204	150
