Description :

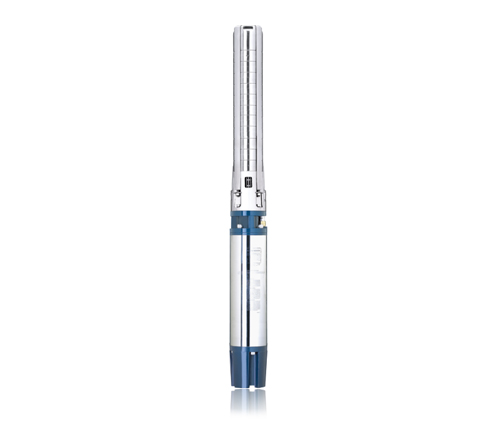

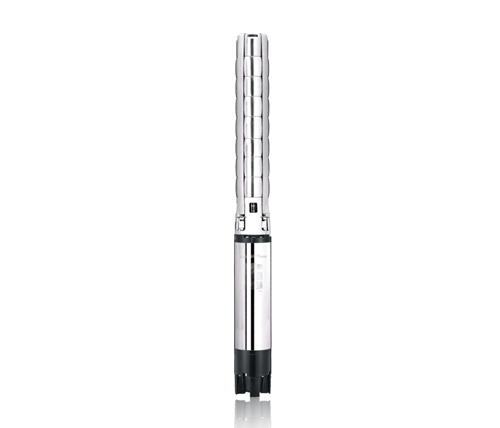

Designed with utmost precision and engineered to perfection, this pump is specifically crafted to cater to the demands of deep well applications in various industries.With its 6SP17(18) 6" size, this submersible pump is capable of delivering exceptional performance in even the most challenging conditions.

Applications :

Provides water supply from wells or reservoirs for various use cases.

Caters to domestic, civil, and industrial applications with stable performance.

Supports garden maintenance and agricultural irrigation operations efficiently.

Key Features :

1、 Its wide range of applications makes it an ideal choice for civil and industrial purposes. Whether you need to extract water from a deep well, borehole, or any other water source, this pump is designed to meet your requirements with utmost efficiency.
2、One of the standout features of this water pump is its rubber wear ring, which ensures enhanced durability and longevity. This innovative addition protects the pump from wear and tear, allowing it to withstand the test of time even in demanding environments.
3、The stainless steel impeller further adds to the durability and reliability of this submersible pump

Operating Conditions:

Maximum fluid temperature up to +50℃
Maximum sand content : 0.25%
Minimum well diameter : 6"

Motor and Pump :

Rewindable Electric Motor

Single Phase : 220-240V/50Hz

Three Phase : 380-415V/50Hz

Starting Modes : Direct Start (1 Cable) or Star-Delta Start (2 Cables)

Equipped with Start Control Box or Digital Auto-Control Box

Compliant with NEMA Dimension Standards

Curve Tolerance in Accordance with ISO 9906.

Options on request :

Special mechanical seal
Other voltages or frequency 60Hz

Warranty : 2 years

(according to our general sales conditions)

CE Certificate :

Components and Material :

Components	Material
Delivery casing	AISI 304 SS
Suction lantern	AISI 304 SS
Diffuser	AISI 304 SS
Impeller	AISI 304 SS
Shaft	AISI 304 SS
Shaft coupling	AISI 304 SS
Wear ring	Rubber
Motor external casing	AISI 304 SS
Oil chamber	Cast-iron ASTM NO.30
Oil chamber	Cast-iron ASTM NO.30
Bottom support	Cast-iron ASTM NO.30
Seal	NBR Graphite-SIC/TC
Shaft	AISI 304 SS-ASTM 5140

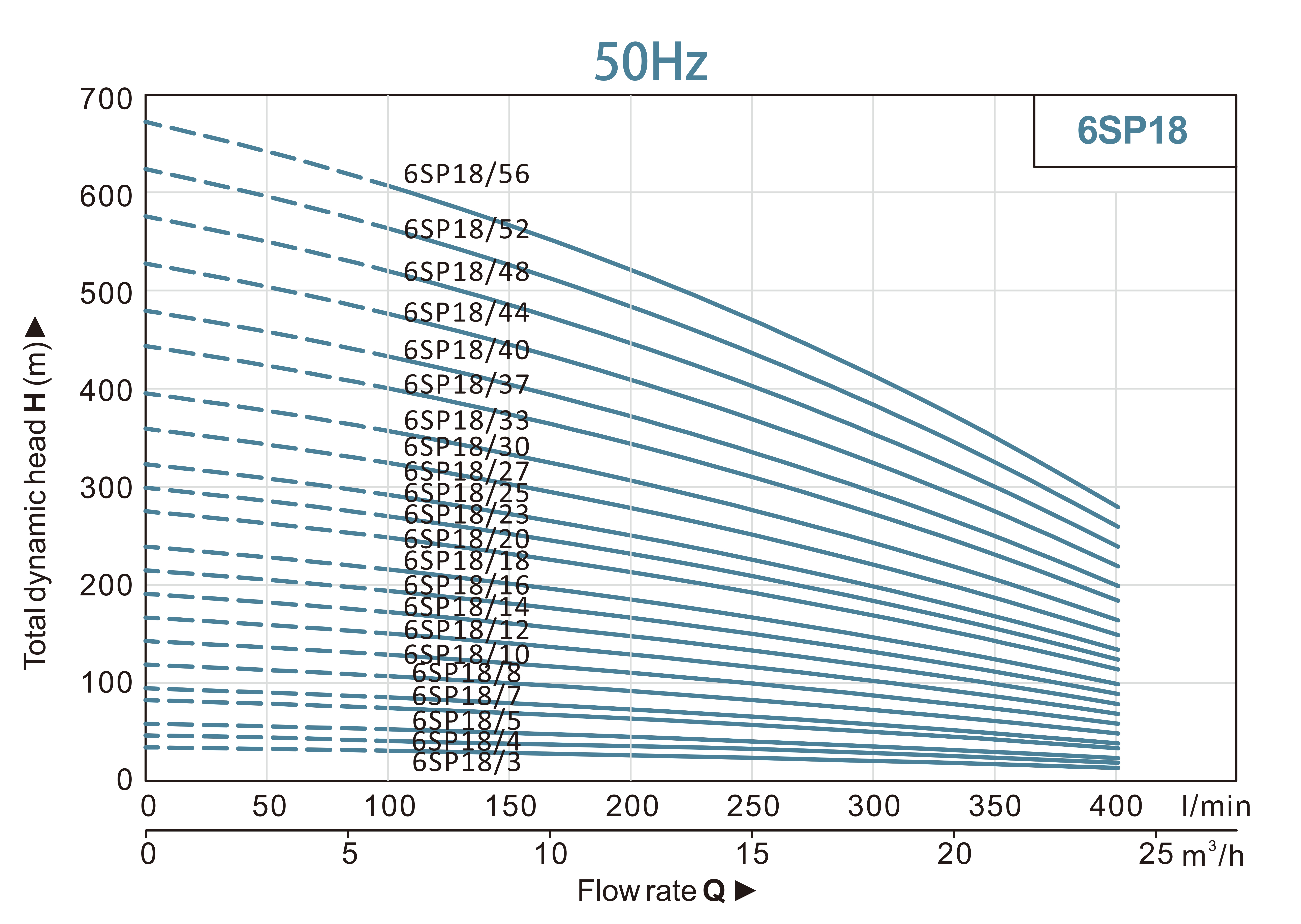

Performance Curves :

Performance Data ( 50Hz ) :

MODEL		MOTOR		DELIVERY n≈2850r/min
1~ 220-240V	3~ 380-415V	KW	HP	Q(m³/h)	0	3	6	9	12	15	18	21	24
1~ 220-240V	3~ 380-415V	KW	HP	Q(l/min)	0	50	100	150	200	250	300	350	400
6SPM18/3	6SP18/3	2.2	3	H(m)	36	34	33	30	28	25	22	19	15
6SPM18/4	6SP18/4	2.2	3		48	46	42	40	37	34	30	25	20
6SPM18/5	6SP18/5	3	4		60	57	54	51	47	42	37	31	25
6SPM18/7	6SP18/7	4	5.5		84	80	76	71	65	59	52	44	35
6SPM18/8	6SP18/8	5.5	7.5		96	92	87	81	74	67	59	50	40
6SPM18/10	6SP18/10	5.5	7.5		120	115	108	101	93	84	74	63	50
-	6SP18/12	7.5	10		144	138	130	121	112	101	88	75	60
-	6SP18/14	7.5	10		168	160	152	142	130	117	103	88	70
-	6SP18/16	9.2	12.5		192	183	173	162	149	134	118	100	80
-	6SP18/18	11	15		216	206	195	182	167	151	133	113	90
-	6SP18/20	11	15		240	229	217	202	186	168	147	125	100
-	6SP18/23	13	17.5		276	264	249	233	214	193	170	144	115
-	6SP18/25	15	20		300	287	271	253	233	210	184	156	125
-	6SP18/27	15	20		324	309	293	273	251	227	199	169	135
-	6SP18/30	18.5	25		360	344	325	303	279	252	221	188	150
-	6SP18/33	18.5	25		396	378	358	334	307	277	243	206	165
-	6SP18/37	22	30		444	424	401	374	344	310	273	231	185
-	6SP18/40	22	30		480	458	433	405	372	336	295	250	200
-	6SP18/44	26	35		528	504	477	445	409	369	324	275	220
-	6SP18/48	26	35		576	550	520	486	447	403	354	300	240
-	6SP18/52	30	40		624	596	563	526	484	436	383	325	260
-	6SP18/56	30	40		672	642	607	567	521	470	413	350	280

Performance Data ( 60Hz ) :

Model	Power		DELIVERY n≈3450r/min
3~220/380V	KW	HP	Q(m³/h)	0	3	6	9	12	15	18	21	24	27	30
3~220/380V	KW	HP	Q(l/min)	0	50	100	150	200	250	300	350	400	450	500
6SP17/5	5.5	7.5	H(m)	81	80	79	77	73	68	62	54	46	36	26
6SP17/6	5.5	7.5		97	96	95	93	87	81	75	65	55	43	31
6SP17/8	7.5	10		129	128	127	123	117	109	99	87	73	57	41
6SP17/9	7.5	10		145	144	143	139	131	122	112	98	82	64	46
6SP17/11	9.2	12.5		177	176	175	170	160	149	137	120	100	78	56
6SP17/13	11	15		210	208	206	201	189	176	162	141	119	93	67
6SP17/15	13	17.5		242	240	238	231	219	204	186	163	137	107	77
6SP17/17	15	20		274	273	270	262	248	231	211	185	155	121	87
6SP17/19	18.5	25		306	305	302	293	277	258	236	207	173	135	97
6SP17/21	18.5	25		339	337	333	324	306	285	261	228	192	150	108
6SP17/23	22	30		371	369	365	355	335	312	286	250	210	164	118
6SP17/25	22	30		403	401	397	386	364	339	311	272	228	178	128
6SP17/27	26	35		435	433	429	416	394	367	335	294	246	192	138
6SP17/29	26	35		468	465	460	447	423	394	360	315	265	207	149
6SP17/31	30	40		500	497	492	478	452	421	385	337	283	221	159
6SP17/33	30	40		532	529	524	509	481	448	410	359	301	235	169
