Energy Saving
Hot And Cold Water
Circulation Pump
Inlet / Outlet: 11/2" x 11/2"
Body length: 130mm
This pump is engineered to deliver exceptional performance with a flow rate of up to 2.9/3.3 m³/h and a head of up to 4.5/6 meters, making it ideal for a variety of heating applications
Applications:
Heating systems in residential and commercial buildings
Industrial equipment cooling
Solar water heating systems
Boiler circulation systems
Technical Specifications:
Flow Rate: Up to 2.9/3.3 m³/h
Head: Up to 4.5/6 meters
Pressure: Up to 10 bar
Ambient Temperature: 0℃~40℃
Ambient Humidity: 95%
Liquid Temperature: -10℃~110℃
Motor: Copper-wound with thermal protection
Shaft Material: Ceramic
Bearing Material: Ceramic
Impeller Material: Polypropylene
Connection: Flange mount
Voltage and Frequency: Customizable (50Hz or 60Hz)

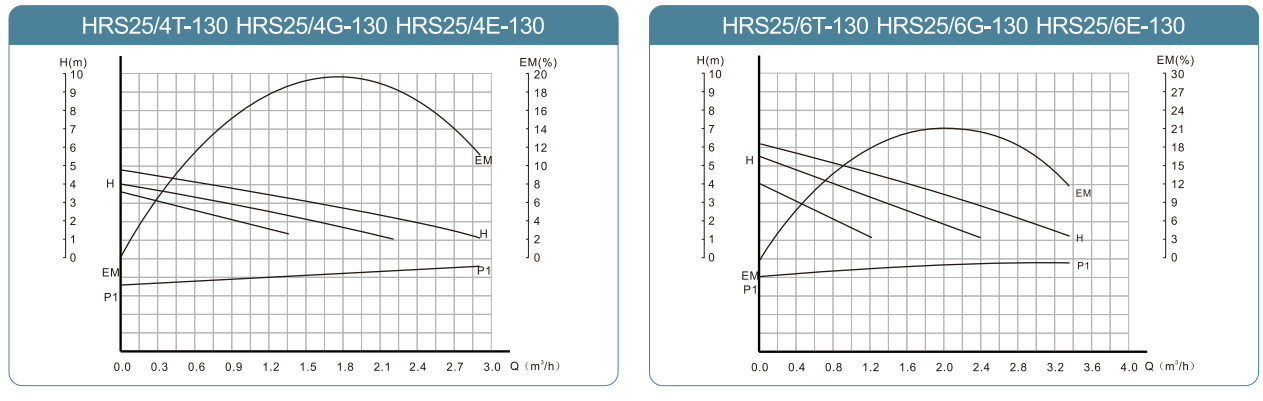

Performance Curves :
Technical Data :
| Model | Power | Max.Flow | Max.Head | Voltage | Material of pump body | Dimension(mm) | Weight | |||||||
| (W) | (m³/h) | (m) | 220V/ 50Hz | 220V/ 60Hz | 127V/ 60Hz | Cast Iron | Brass | Stainless steel | L | B | H | G | (Kg) | |
| HRS25/4T-130 | 72/53/38 | 2.9/2.1/1.3 | 4.5/4/3 | ★ | ★ | ★ | ★ | ★ | ★ | 130 | 127 | 133 | 11/2" | 2.3 |
| HRS25/4G-130 | 2.3 | |||||||||||||
| HRS25/4E-130 | 2.3 | |||||||||||||
| HRS25/6T-130 | 93/67/46 | 3.3/2.3/1.3 | 6/5/3 | ★ | ★ | ★ | ★ | ★ | ★ | 130 | 127 | 133 | 11/2" | 2.4 |
| HRS25/6G-130 | 2.4 | |||||||||||||
| HRS25/6E-130 | 2.4 | |||||||||||||
Installation Dimension :
