HRS25/8G-180 High Pressure Hot And Cold Water Circulation Pump
View All Products
en
High Pressure
Hot And Cold Water
Circulation Pump
Inlet/Outlet: 11/2" x 11/2"
Body length: 180mm
This pump is engineered to deliver exceptional performance with a flow rate of up to 6.9 m³/h and a head of up to 8 meters, making it ideal for a variety of heating applications
Applications:
Heating systems in residential and commercial buildings
Industrial equipment cooling
Solar water heating systems
Boiler circulation systems
Technical Specifications:
Flow Rate: Up to 6.9 m³/h
Head: Up to 8 meters
Pressure: Up to 10 bar
Ambient Temperature: 0℃~40℃
Ambient Humidity: 95%
Liquid Temperature: -10℃~110℃
Motor: Copper-wound with thermal protection
Shaft Material: Ceramic
Bearing Material: Ceramic
Impeller Material: Polypropylene
Connection: Flange mount
Voltage and Frequency: Customizable (50Hz or 60Hz)

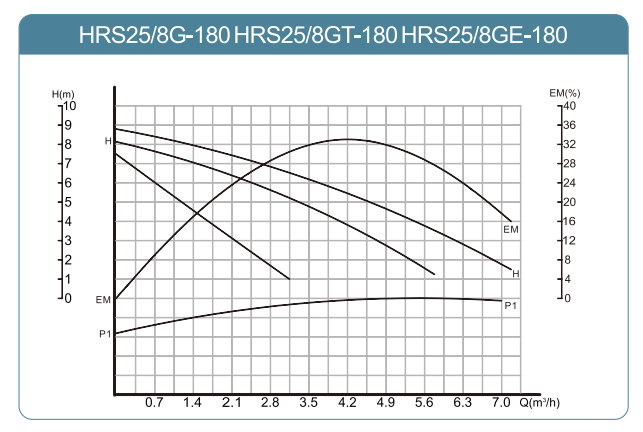

Performance Curves :

Technical Data :

Installation Dimension :
