Pulp and Mud
End Suction Centrifugal Pump
with Semi-open Impeller and Wear Plate
The EPS Series Pulp Mud End Suction Centrifugal Pump is a robust and high-performance pump designed specifically for the pulp and paper industry. It is engineered to meet the rigorous demands of transferring pulp and paper slurries, ensuring efficiency and durability. This pump series is designed in accordance with international standards ISO 2858/5199, ensuring global compatibility and quality.
The EPS pump features a semi-open impeller design, which allows for the transfer of a certain amount of gas medium along with the pulp slurry. This design is crucial for handling the specific requirements of the pulp and paper-making process, where the presence of air or gas in the slurry can be common.
Equipped with front and back wear plates, the EPS pump is designed to withstand the abrasive nature of pulp slurries. These wear plates are easily replaceable, reducing downtime and maintenance costs.
The pump casing and internal components are made from high-quality materials that can endure the corrosive and abrasive nature of pulp and paper slurries, ensuring a long service life.
The EPS pump is designed for high efficiency, reducing energy consumption and operational costs. Its performance is optimized for the specific flow rates and pressures required in pulp and paper processes.
The pump's design allows for easy access to internal components, facilitating maintenance and reducing downtime. The semi-open impeller and wear plates can be quickly removed for inspection or replacement.
Adherence to ISO 2858/5199 standards ensures that the EPS pump meets the highest quality and performance benchmarks, making it a reliable choice for international markets.
The EPS pump digests and absorbs the advantages of foreign advanced products and incorporates the research experience of our company's long-term engagement in the paper industry. It is the result of successful collaboration with technical research institutes, representing an upgraded product line.
With a focus on meeting the unique needs of the pulp and paper industry, the EPS pump can be customized to fit specific process requirements, ensuring optimal performance in various applications.
Applications :
-Chemical and Petrochemical Industry
-Oil refining plants
-Pulp and Paper making industry-Waste water treatment
-Pharmaceutical
-Food Industry(e.g.sugar)
CE Cerificate :
Impeller
Optimized Hydraulic design with semi-open impellerdiameterup to 547mm,EPS pumps have widerperformance coverage EN 25199/22858
Heavy Duty Tough Bearings
Cylindrical roller bearing at the impeller end,two angularcontact ball bearing (back to back arrangment) at thedrive end.Design bearing life up to 25000 hours. Longservice life
Sturdy Shaft
Ensures minimum shaft deflection andlowmechanicalvibration
Wear Plate
Two of wear plate according to impeller designTo protect the pump casing

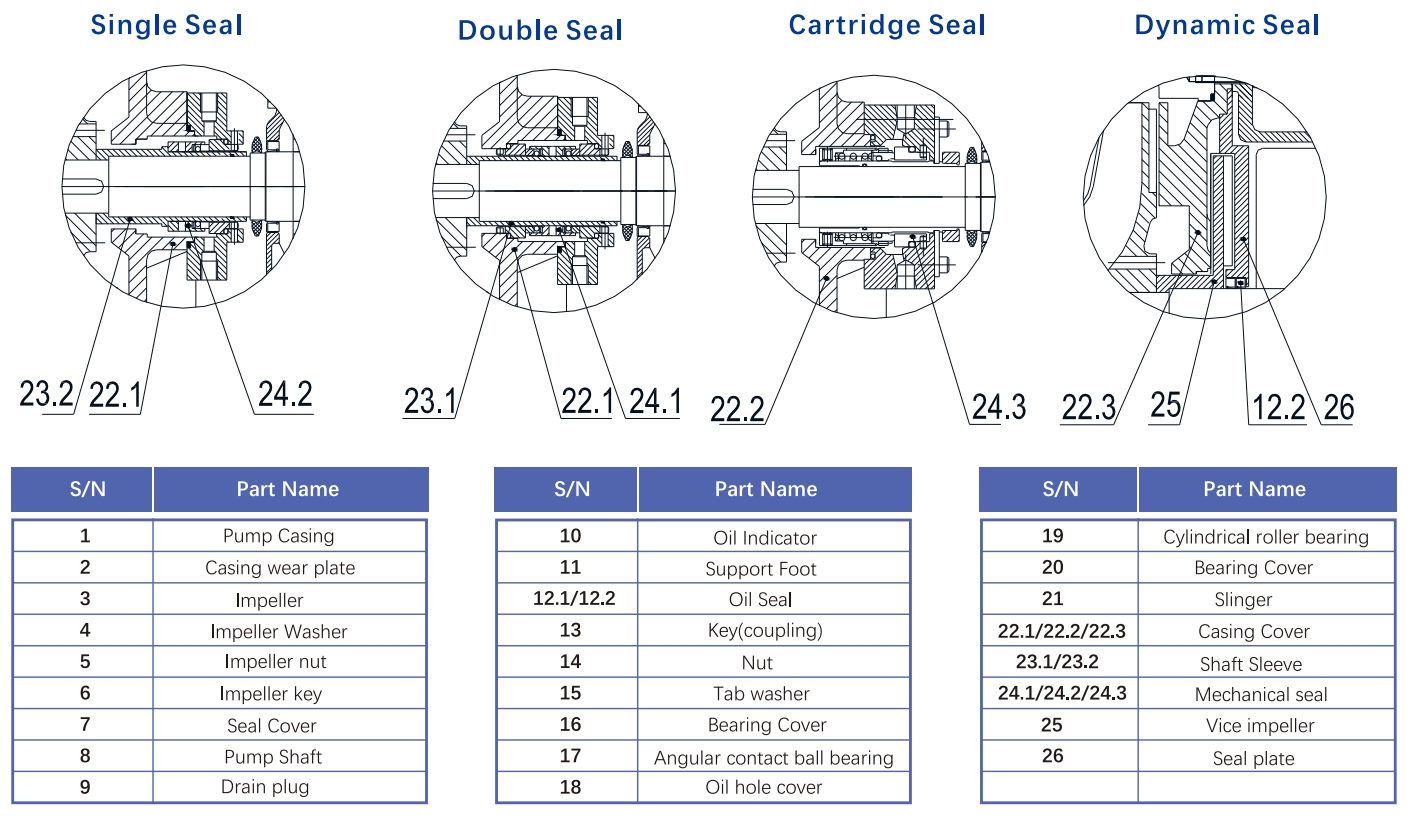

Shaft sealing
Single as standard,Double mechanical seal,
Cartridge mechanical seal, Gland packing are
available
Single mechanical seal for stock conveyance
with sealing and rinsing water
Capitalinvestmentand operating cost savings
Axial Force Balance
The axial force are mostly balance by the front/rear wearplate and balanceing holes in impeller design, The residualaxial force are balanced by the back to back arrangedcontact ball bearings at the drive end.
Flange
Flange dimensions comply to lS0 7005-1:1992 PN16 paas standard,other flange(including ANSl flange) are alsoavailable by request
|
Components |
Materials |
|
Pump body |
Cast iron/ Stainless steel |
|
Impeller |
Cast iron/ Stainless steel |
|
Shaft |
Stainless steel |
|
Shaft seal |
Mechanical Seal |
|
Bearing lubrication |
Oil lubrication |
|
Bearing Brand |
Heavy Duty NTN |
|

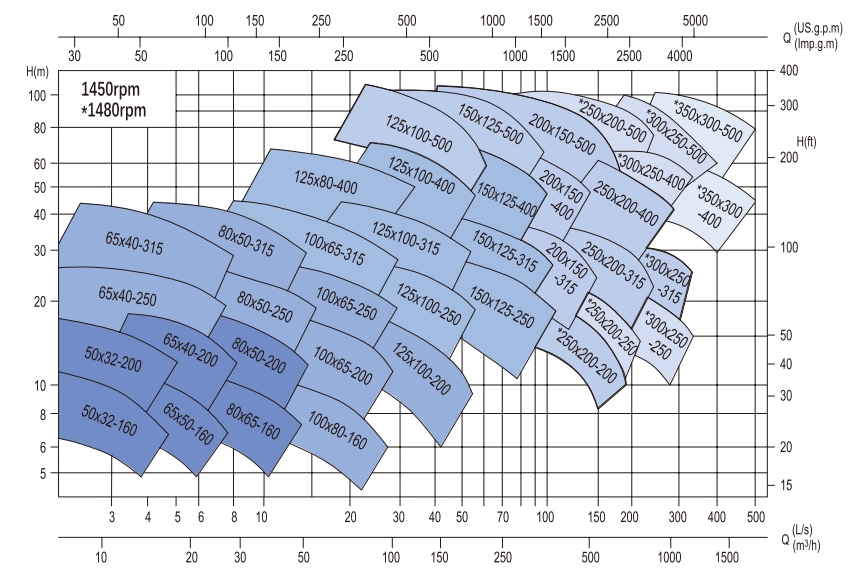

Pump Size |
32mm to 350mm |
|
Max. Flow |
2000m³/h |
|
Max. Head |
160m |
|
Max. Temperature |
175℃ |
|
Max. Speed |
3600rpm |
|
Max. Pressure |
24Bar |
