HRS-EA-DN Intelligent Circulation Pump

Model: HRS-EA-DN

Power: 600W

Max. Head: 12M

Rated Flow: 13m³/h

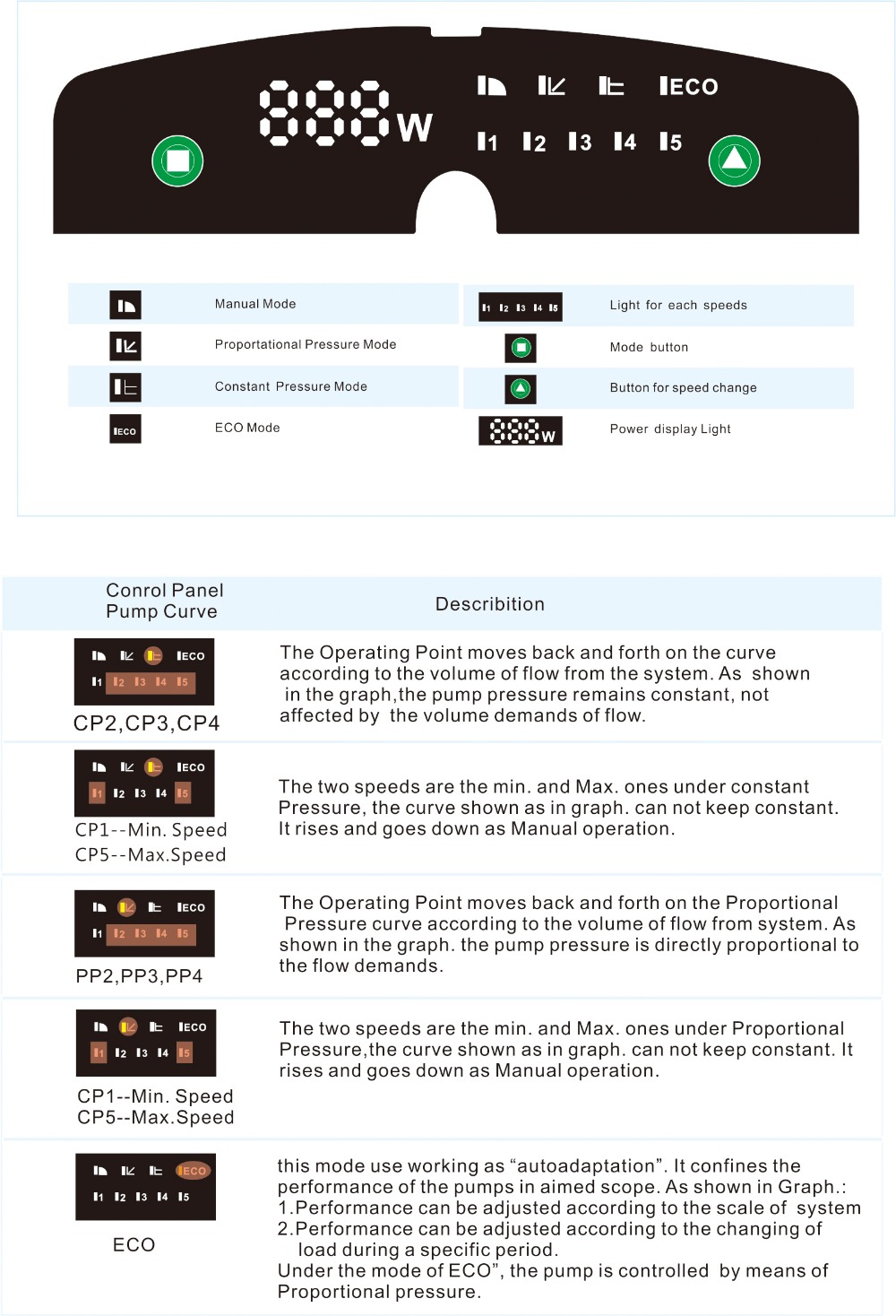

Function: 1) ECO mode; 2) Manual mode; 3) PWM mode

PREV：HRS-EAY Intelligent Circulation Pump
NEXT：HRS-EAX Intelligent Circulation Pump

Description
Components
Curves
Performance Data
Contact Us

Components:

Part	Material
Pump body	Cast iron
Impeller	PES
Stainless steel cover	304SS
Bearing	Ceramic
Gasket	Rubber
Brass bearing	Brass
Rator	SS&Copper
Ceramic shafting	Ceramic
Shielding	304SS
Stator	Silicon steel&Copper
Motor housing	Aluminum
Hexagon socket screws	Stainless steel
Exhaust screw	Brass
Nameplate	Nylon
Seat of terminal box	Nylon
Cover of termial box	Nylon

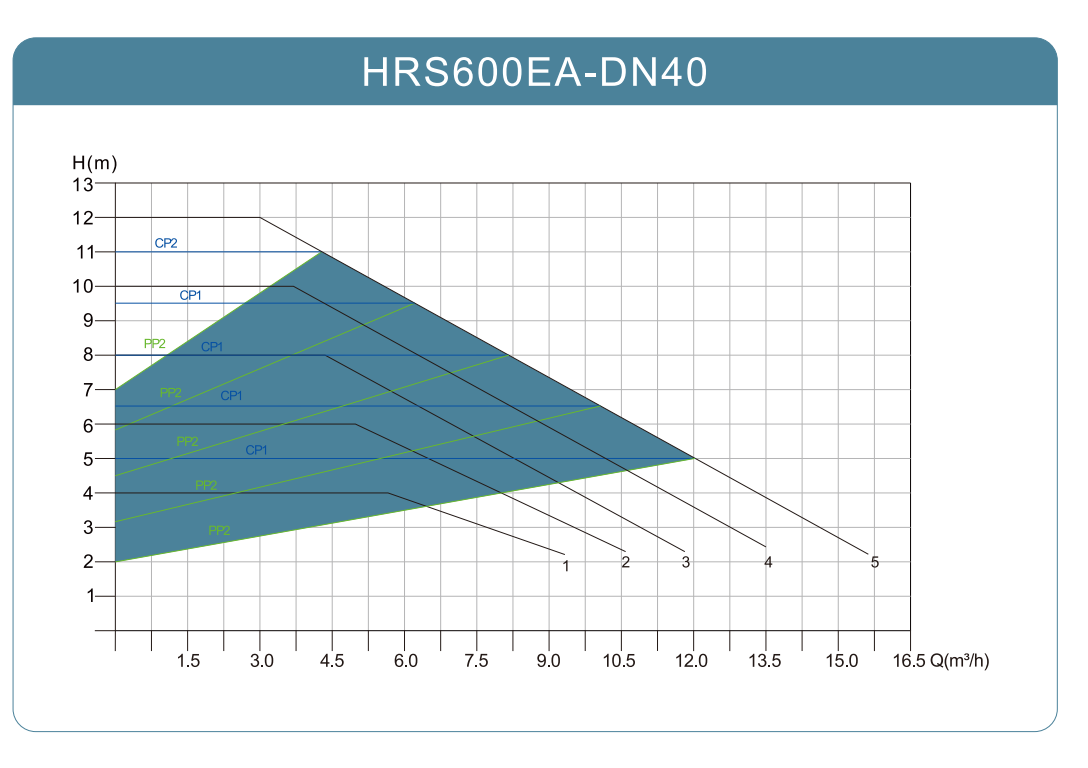

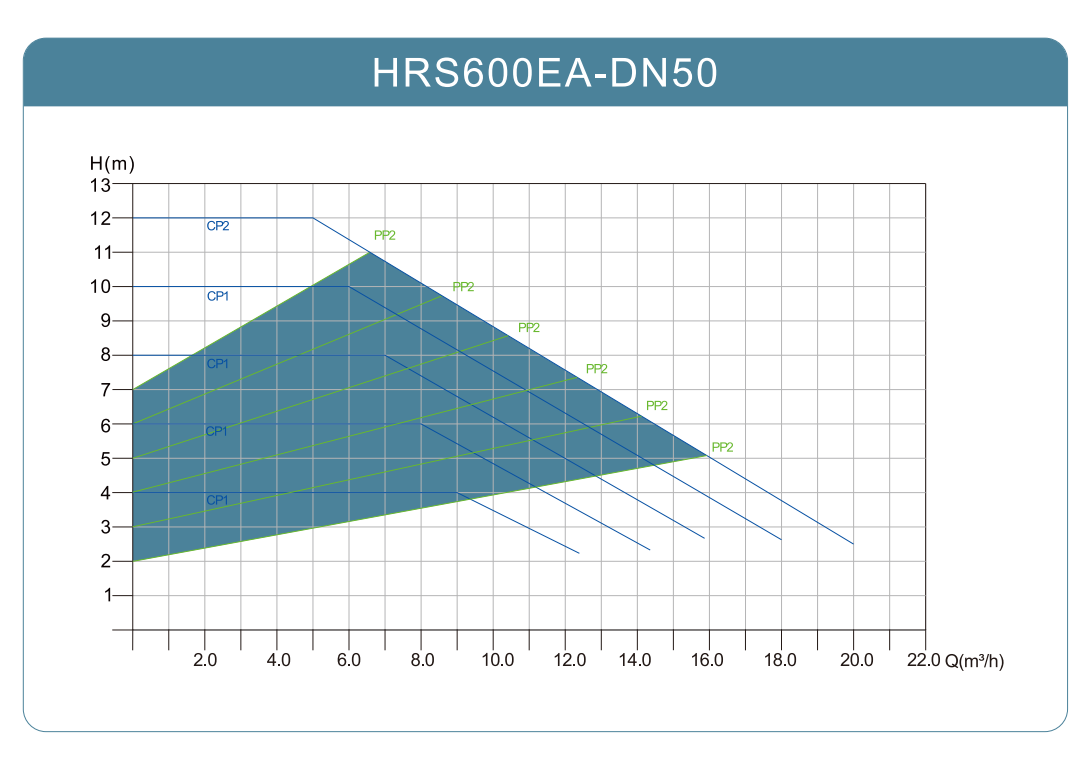

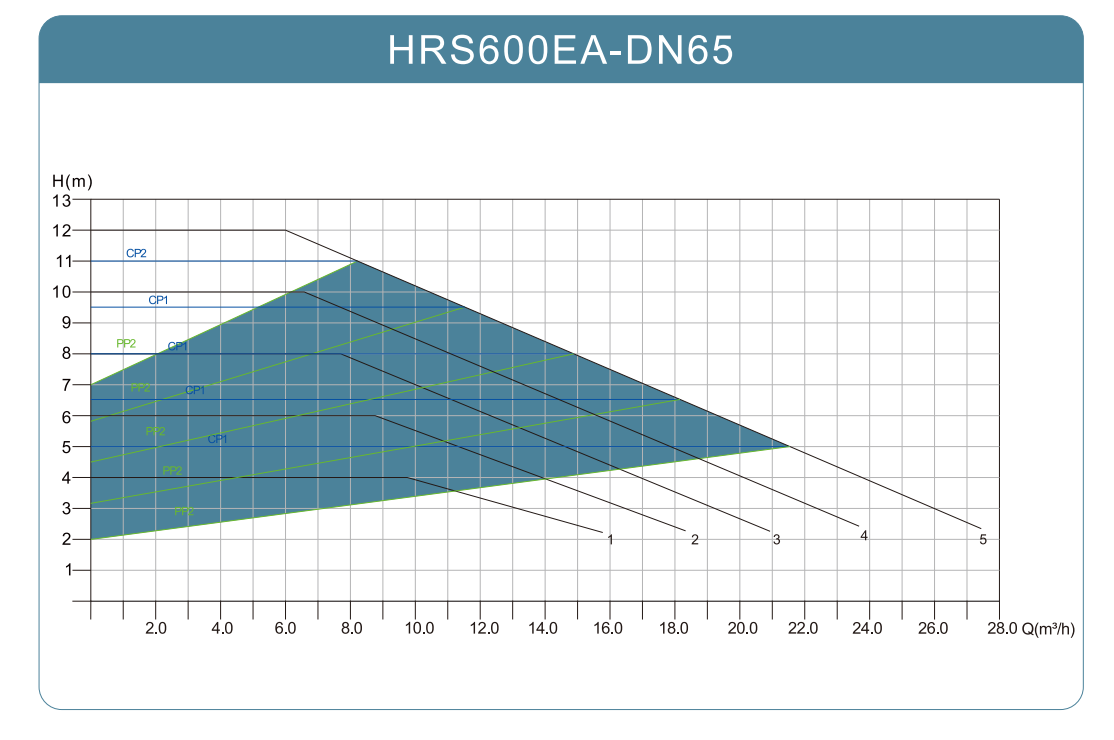

Performance Curves :

Technical Data:

Model	Connection size	Rated.Flow	Max.Head	Power	Voltage/Frequency
Model	(Inch)	(m3/h)	(m)	(W)	(V/Hz)
HRS600EA-DN40	1.5"	7	12	600	220/50
HRS600EA-DN50	2"	12	12	600
HRS600EA-DN65	1.5"	13	12	600
