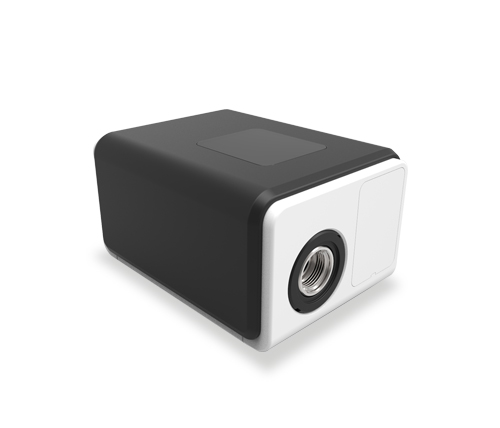

HGZ15/20EA Series 200W WIFI Water Cooled Motor Low Noise Intelligent Variale Frequency Booster Pump
View All Products
en
The HGZ15/20EA Series 200W WiFi water-cooled motor low-noise intelligent variable frequency booster pump is a versatile and efficient solution for boosting water pressure in residential, commercial, and industrial settings. Its advanced features, including WiFi connectivity, water-cooled motor, low noise operation, intelligent variable frequency control, and energy-efficient operation, make it a reliable and convenient choice for various water supply needs.
WiFi connectivity: The pump can be connected to a WiFi network, allowing for remote monitoring and control via a smartphone, tablet, or computer. This feature provides convenience and flexibility in managing the pump system from anywhere.
Water-cooled motor: The pump is equipped with a water-cooled motor, which helps to dissipate heat effectively and maintain optimal operating temperatures. This feature contributes to the longevity and reliability of the pump.
Low noise operation: The pump is designed to operate quietly, minimizing noise disruptions in residential or commercial settings. This makes it suitable for applications where noise levels need to be kept to a minimum.
Intelligent variable frequency control: The pump utilizes variable frequency drive (VFD) technology for intelligent control of the motor speed and water flow. This allows for precise adjustment of pressure levels and flow rates to meet specific water supply requirements.
Energy-efficient operation: The pump is designed for energy efficiency, helping to reduce electricity consumption and lower operating costs. The intelligent variable frequency control optimizes energy usage based on the actual demand for water.

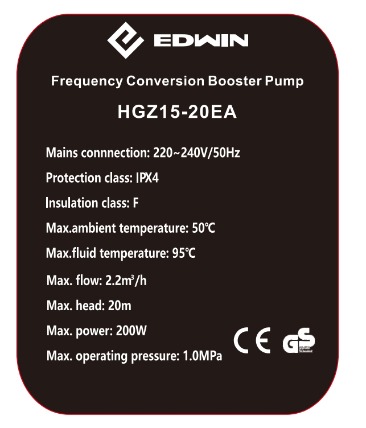

Liquid Temperature: 2-95°C.
Ambient Temperature: 2-40℃
Maximum System pressure: 10bar/1Mpa
Maximum Inlet pressure: 3bar/0.3Mpa
Maximum Head: 20m
IP class: X4D(Outdoor installation)
Pump liquid: Clean water


| Part | Material |
| Stator winding | Copper wire + Silicon steel sheet |
| Rotor | Ceramic + Silicon steel sheet |
| Pump body | SUS 304 |
| Impeller | PPO |
| Check valve | Brass |

| Model | Connection size | Rated Flow | Rated Head | Max. Head | Power |
Power |
| HGZ15/20EA | 1" | 2.2m³/h | 12m | 20m | 200W | 0.3HP |
