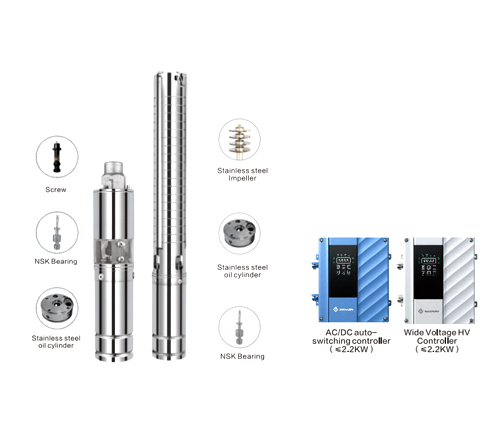

The 3ADSC AC/DC Stainless Steel Impeller Solar Deep Well Pump is a high-performance pump designed for efficient deep well water extraction using solar energy or AC electricity. Featuring a corrosion-resistant stainless steel impeller, this solar deep well pump delivers reliable water flow, long-lasting durability, and minimal maintenance. Its AC/DC hybrid motor ensures continuous operation for agricultural irrigation, livestock watering, and off-grid water supply systems.
Stainless Steel Impeller: Provides outstanding corrosion resistance and durability, ideal for deep well pumping and long-term use.
Hybrid AC/DC Motor: Operates on solar DC power or conventional AC electricity, ensuring stable water supply in remote locations.
Solar Deep Well Pump: Optimized for high lifting heights and deep well applications, delivering efficient irrigation and water transfer.
Energy-Efficient Performance: Brushless motor design reduces energy consumption while maintaining strong, stable water flow.
Low Maintenance & Long Lifespan: Durable construction minimizes downtime and maintenance costs.
Eco-Friendly Operation: Solar-powered option supports sustainable irrigation and off-grid water projects.
Solar deep well irrigation for farmlands, orchards, and greenhouses
Livestock and poultry water supply in off-grid areas
Rural household and community water systems
Deep well water pumping for agricultural and small-scale water projects
Solar-powered water transfer for storage tanks or reservoirs

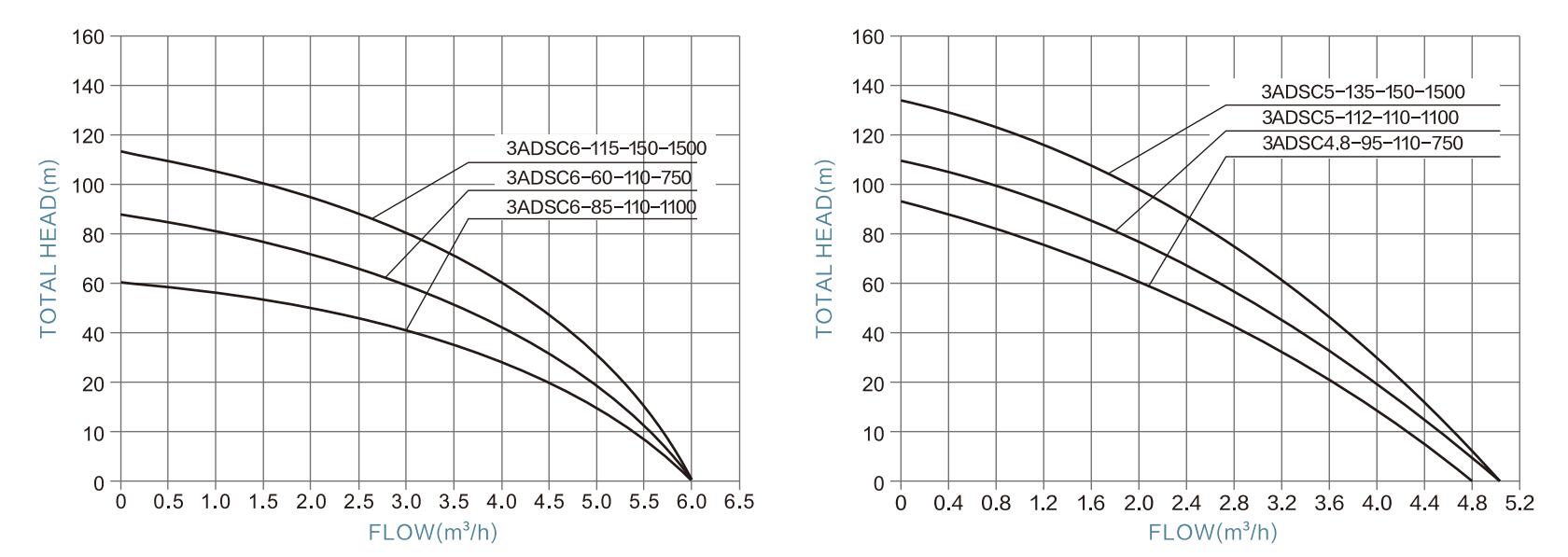

| ITEM | (AC) Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel -Open circuit voltage (VOC) | Solar panel - Power |
| 3ADSC4.8-95-110-750 | 85V-280V | 110V-350V | 750W | 4.8m³/h | 95m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 3ADSC5-112-110-1100 | 85V-280V | 110V-350V | 1100W | 5m³/h | 112m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 3ADSC5-135-150-1500 | 85V-280V | 150V-350V | 1500W | 5m³/h | 135m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 3ADSC6-60-110-750 | 85V-280V | 110V-350V | 750W | 6m³/h | 60m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 3ADSC6-85-110-1100 | 85V-280V | 110V-350V | 1100W | 6m³/h | 85m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 3ADSC6-115-150-1500 | 85V-280V | 150V-350V | 1500W | 6m³/h | 115m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
